Quick Details
-
Brand Name:
-
DOM
-
Model Number:
-
NL30
-
Material:
-
stainless steel, Stainless Steel level switch
-
Mode:
-
stop rotating paddle type
-
Application:
-
Cement silo level indicate
-
Type:
-
stainless steel rotating type level indicator for cement silo
-
Accuracy:
-
99.9%
-
voltage:
-
220VAC or 24VDC
-
shaft length:
-
customized
-
Power supply:
-
electric
-
Rotary speed:
-
1rpm
-
Working Pressur:
-
0.8bar
-
Name:
-
rotary paddle level switch/ level sensor
Quick Details
-
Grade:
-
DIY, Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DOM
-
Model Number:
-
NL30
-
Material:
-
stainless steel, Stainless Steel level switch
-
Mode:
-
stop rotating paddle type
-
Application:
-
Cement silo level indicate
-
Type:
-
stainless steel rotating type level indicator for cement silo
-
Accuracy:
-
99.9%
-
voltage:
-
220VAC or 24VDC
-
shaft length:
-
customized
-
Power supply:
-
electric
-
Rotary speed:
-
1rpm
-
Working Pressur:
-
0.8bar
-
Name:
-
rotary paddle level switch/ level sensor

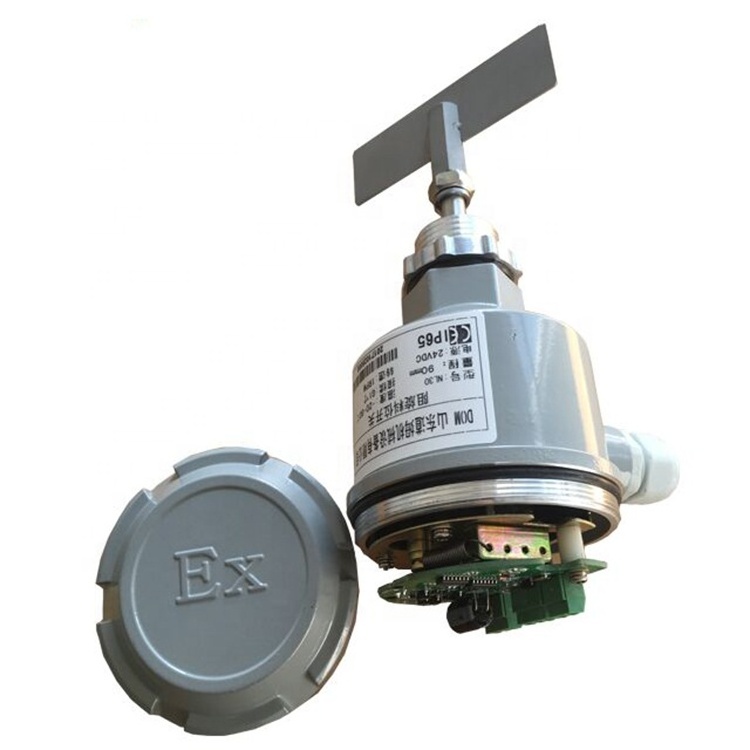

high standard nl30 level indicator cement silo grain silo level instrument anti rotary paddle level switch for sale
Brief introduction
high standard nl30 level indicator cement silo grain silo level instrument anti rotary paddle level switch for sale
Resistance rotary switch is used for solid materials including powder, massive, granular, gel, etc.)
level controller. It has good sealing; overload capacity is strong, lightweight drag large capacity, output, contacts, etc. In
view of the different proportion of material can be done by adjustable tension of the spring, contact material part of its full
stainless steel material. Resistance rotary switch in the chemical, plastic, cement, medicine, feed, food and other industries widely used.
level controller. It has good sealing; overload capacity is strong, lightweight drag large capacity, output, contacts, etc. In
view of the different proportion of material can be done by adjustable tension of the spring, contact material part of its full
stainless steel material. Resistance rotary switch in the chemical, plastic, cement, medicine, feed, food and other industries widely used.
Product Paramenters
|
Model
|
NL Series
|
LI Series
|
|
Protection Grade
|
IP 65
|
IP 65 / IP66
|
|
Connector and paddle
|
Stainless steel
SUS304 |
Stainless steel
SUS304 |
|
Cover
|
AL Alloy
|
AL Alloy
|
|
Reed type clutch
|
Protect gear when the blade is impacted
|
Protect gear when the blade is impacted
|
|
Signal delay
|
Less than 1.2s
|
Less than 1.2s
|
|
Sensibility
|
Adjust by 3 spring
|
Adjust by 3 spring
|
|
Blade Rotating Speed
|
1RPM
|
1RPM
|
|
Installation
|
Screw installation
|
Screw installation
|
|
Voltage
|
24V AC/ 24V DC
220VAC/110VAC |
24V/48V/110V/220V – 50Hz
24V/48V/ -DC |
|
Power
|
4W
|
4W
|
|
Wiring
|
Max 1*1.5 mm²
|
Max 1*1.5 mm²
|
|
Signal Output
|
24VDC/220VAC
|
AC: Max 250V, 2A, 500W
|
|
|
|
AC: Max 300V, 2A, 600W
|
|
Protection Grade
|
l
|
l
|
|
Pressure in Cover
|
Max 0.6bar
|
Max 0.8bar
|
|
Working temperature
|
-10~+80°C
|
-20~+70°C
|
|
Shaft length
|
90-500mm
|
80mm,500mm,1000mm
|
Product packaging
Please feel free to provide your requirement:
1. What kind of material level do you need it to measure please? Is the material high temperature or not?
2. How long of the shaft do you need please? We can customize 90-500mm or flexible shaft
3. Do you prefer 220vac or 24vdc power please?
4. What quantity do you need please? We can provide samples.
1. What kind of material level do you need it to measure please? Is the material high temperature or not?
2. How long of the shaft do you need please? We can customize 90-500mm or flexible shaft
3. Do you prefer 220vac or 24vdc power please?
4. What quantity do you need please? We can provide samples.
1.Are you original manufacturer?
A: Yes. We SDDOM are factory in construction machinery in China with whole concrete mixing / silo storage convey
products you need.
2.What kind terms of payment can be accepted?
A: Normally we can work on T/T term or L/C term.
3.Which incoterm 2010 terms can we work?
A: Normally we work on EXW, FOB, CFR, CIF, DAP
4.What about the delivery time?
A: 7-30 days after receiving the deposit.
5.What about the warranty time?
A: 12 months after delivery generally.
6.What about the MOQ?
2.What kind terms of payment can be accepted?
A: Normally we can work on T/T term or L/C term.
3.Which incoterm 2010 terms can we work?
A: Normally we work on EXW, FOB, CFR, CIF, DAP
4.What about the delivery time?
A: 7-30 days after receiving the deposit.
5.What about the warranty time?
A: 12 months after delivery generally.
6.What about the MOQ?
A: MOQ 1 unit
