The double roller crusher is another breakthrough in the field of sand and gravel aggregate production equipment manufacturing.
The double roller crusher is a two roll sand making machine that uses two motors to drive two roller shafts to squeeze and grind materials. The double roller crusher is mainly used for fine crushing operations with particle size requirements of less than 80mm and finished products of 50-20mm.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
customizable
-
Weight:
-
1000 KG
-
Marketing Type:
-
Hot Product 2024
-
Processed Materials:
-
200 Kinds Materials(<300 Mpa)
-
Function:
-
sand making machine
-
Product name:
-
roller crusher
-
The Machines classification:
-
Mobile and Fixed
-
After-sales Service Provided:
-
Lifetime technical guidance
-
Crusher type:
-
More than 20 types
-
Keyword:
-
Fine Stone Crusher
-
Quality:
-
One year warranty
-
Usage:
-
1 person operation
-
Applicaton:
-
Sand and gravel factory can break dry and wet
Quick Details
-
Application:
-
Sand making operation of stones
-
Place of Origin:
-
Henan, China (Mainland)
-
Brand Name:
-
HSM
-
Dimension(L*W*H):
-
customizable
-
Weight:
-
1000 KG
-
Marketing Type:
-
Hot Product 2024
-
Processed Materials:
-
200 Kinds Materials(<300 Mpa)
-
Function:
-
sand making machine
-
Product name:
-
roller crusher
-
The Machines classification:
-
Mobile and Fixed
-
After-sales Service Provided:
-
Lifetime technical guidance
-
Crusher type:
-
More than 20 types
-
Keyword:
-
Fine Stone Crusher
-
Quality:
-
One year warranty
-
Usage:
-
1 person operation
-
Applicaton:
-
Sand and gravel factory can break dry and wet

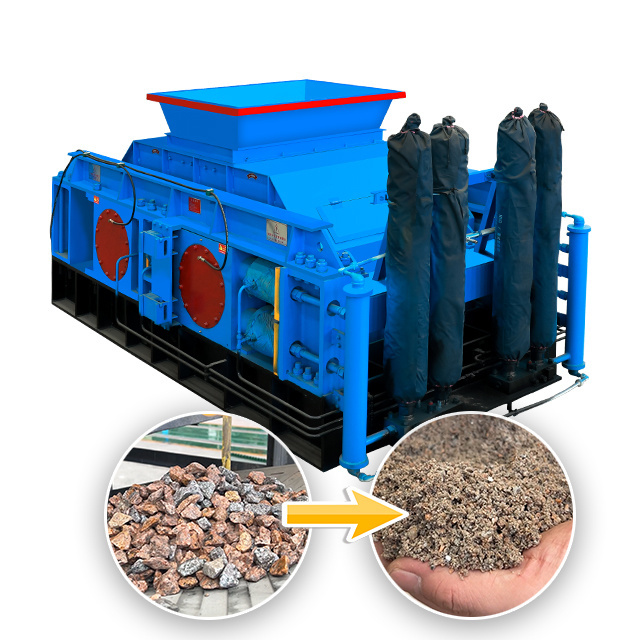

Fully Automatic Double Roller Crusher
Advantage of roller crusher
1. High crushing ratio and high production capacity The double roller crusher is a double roller sand making machine that uses twomotors to drive two roller shafts to squeeze and grind materials.
2.More crushing and less grinding,full grain size The production efficiency of the mill can be improved by crushing more and grinding less.Delicate and high-quality finished products.
3.Long service life and low operating costs The roller skin is made of wear-resistant materials with strong impact resistance and high wear resistance. It has small loss and low failure rate when crushing materials. In the later stage, it can reduce maintenance costs,have low operating costs and long service life.
2.More crushing and less grinding,full grain size The production efficiency of the mill can be improved by crushing more and grinding less.Delicate and high-quality finished products.
3.Long service life and low operating costs The roller skin is made of wear-resistant materials with strong impact resistance and high wear resistance. It has small loss and low failure rate when crushing materials. In the later stage, it can reduce maintenance costs,have low operating costs and long service life.
Applicable materials|
Application scope
River pebble, Calcite, quartzite, marble, cobble, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, Diabase, granite, basalt.
Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.
Why choose Huashengming?
1. 1.easy to operation
2. 2.1-5 mm adjustable discharge size
3. 3.20 cm thick roller skin,no wear parts in 3 years
4. 4.low over-crushing rate,high capacity
5. 5.no screen bottom,no blocking problem
6. 6.Suitable for upgrading old sand factories
2. 2.1-5 mm adjustable discharge size
3. 3.20 cm thick roller skin,no wear parts in 3 years
4. 4.low over-crushing rate,high capacity
5. 5.no screen bottom,no blocking problem
6. 6.Suitable for upgrading old sand factories
|
Specification and model
|
Roll diameter
(mm) |
Feed size
(mm) |
Productive capacity
(t/h) |
|
2PGT400×250
|
φ400
|
≤25
|
2-10
|
|
2PGT400×400
|
φ400
|
≤25
|
5-12
|
|
2PGT610×400
|
φ610
|
≤30
|
5-20
|
|
2PGT750×500
|
φ750
|
≤30
|
10-40
|
|
2PGT800×600
|
φ800
|
≤40
|
12-50
|
|
2PGY800×800
|
φ800
|
≤40
|
40-50
|
|
2PGY800×1000
|
φ800
|
≤40
|
50-80
|
|
2PGY1000×800
|
φ1000
|
≤40
|
50-80
|
|
2PGY1000×1000
|
φ1000
|
≤40
|
80-100
|
|
2PGY1200×1000
|
φ1200
|
≤60
|
100-120
|
|
2PGY1200×1200
|
φ1200
|
≤60
|
120-150
|
|
2PGY1500×1000
|
φ1500
|
≤80
|
150-200
|
|
2PGY1500×1200
|
φ1500
|
≤80
|
200-250
|
|
2PGY1800×1000
|
φ1800
|
≤100
|
250-300
|
|
2PGY2000×1200
|
φ2000
|
≤120
|
300-400
|
Packing & Shipping
1.Rust-proof and moisture-proof before delivery.
2.Free fumigation plywood case for single machine,larger parts are wrapped by plastic sheeting.
3.Export standard container 20GP,40GP,40HQ,etc.for production line.
4.Other packaging according to your special requirement.
COMPANY PROFILE
Gongyi Huashengming Heavy Industry Machinery Factory is based on the production of crushing and screening equipment, set production and sales as one of the large machinery intelligent manufacturing enterprises. The main business includes crushing, sand making, grinding, building materials, mineral processing equipment production and sales.
Leader inspection
Huashengming is gradually expanding its business market depending on quality performance and service support. Through the international mining machinery exhibitions, we have demonstrated our professional equipment, technology and good service to customers in kinds of countries.
Huashengming is gradually expanding its business market depending on quality performance and service support. Through the international mining machinery exhibitions, we have demonstrated our professional equipment, technology and good service to customers in kinds of countries.
Productive Capacity
The company mainly produces crushing equipment, sand making equipment, mineral processing equipment, screening equipment and crushing equipment five series products. At the same time, the company provides users with project design, process design, standard and non-standard product design and production. Huashengming occupies the market with products, creates the market with services and develops the market with brands.” Cast Huashengming brand, customer satisfaction is the eternal pursuit of Huashengming.
FAQ
1. Q: Can I visit your factory?
A: Yes. Many domestic and overseas customers visited our factory every year.
2. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is 1 years(12 months), and we can supply spare parts also.
3. Q: Do you provide after-sales service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
4. Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
5. Q: Do you provide a production flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for stone-crushing plants and various ores beneficiation lines.
6. Q: Can you test our sample raw material?
A: Yes. You can send your samples to us for testing and analysis.
7. Q: Have you made the whole stone crushing line?
A: Yes. We have made many large&small scale stone crushing line at home and abroad.
3. Q: Do you provide after-sales service?
A: Yes. Our experienced engineers are specialized in designing process flow for stone-crushing plants and various ores beneficiation lines.
