Quick Details
-
Brand Name:
-
OCEAN
-
Model Number:
-
PS
-
Place of Origin:
-
China
-
Horsepower:
-
30-300
-
Cable Length:
-
Any
-
Outlet Size:
-
4-16 inch
-
Power:
-
Any
-
Material:
-
Iron cast, Alloy
-
Dredging depth:
-
10-20m
-
Head:
-
Within 20m
-
Max. flow particle dia. allowed:
-
25-80mm
-
OEM:
-
Accepted
-
Impeller:
-
Open type
-
Speed:
-
600-1400rpm
-
Usage:
-
Sand ,Mud,Slurry,Sewage...
Quick Details
-
Application:
-
Marine, Mining industry, wastewater treatment
-
Pressure:
-
Low Pressure
-
Voltage:
-
Any
-
Brand Name:
-
OCEAN
-
Model Number:
-
PS
-
Place of Origin:
-
China
-
Horsepower:
-
30-300
-
Cable Length:
-
Any
-
Outlet Size:
-
4-16 inch
-
Power:
-
Any
-
Material:
-
Iron cast, Alloy
-
Dredging depth:
-
10-20m
-
Head:
-
Within 20m
-
Max. flow particle dia. allowed:
-
25-80mm
-
OEM:
-
Accepted
-
Impeller:
-
Open type
-
Speed:
-
600-1400rpm
-
Usage:
-
Sand ,Mud,Slurry,Sewage...

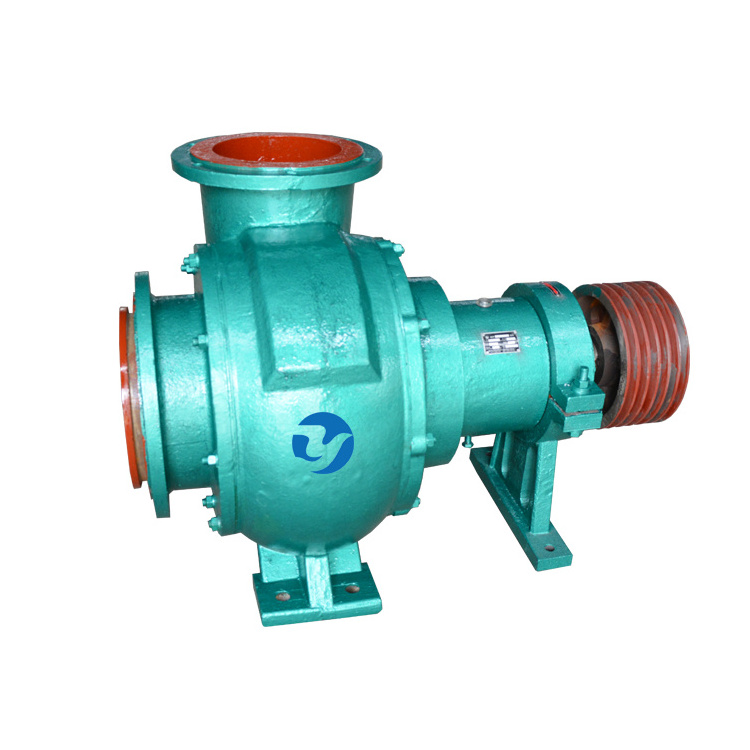

High Quality Sand Suction Pump Portable Dredger Sand Pump for Sale
OCEAN PS series dredger sand pump is also known as horizontal simple sand suction pump. The dredger sand pump is suitable to extract small granular sand. The dredger sand pump use the principle of centrifugal force. The dredger sand pump produce a huge suction by the high speed rotation of the impeller, so that the dredger sand pump can carry out high efficient sand extraction task.
The dredger sand pump are commonly used in pumping system that move sand deposits to long distance. This kind of centrifugal dredger sand pump have good price and high performance in our 10 kinds of sand pump machines. At present, the dredger equipped with dredger sand pump are our main export products. The customers can choose the type of river sand extraction pump and corollary equipment according to their own requirements.
| Size | Flow(m³/h) | Head(m) | Speed(rpm) | Power(KW) |
|---|---|---|---|---|
| 4” | 150 | 12 | 1400 | 22 |
| 6” | 260 | 12 | 1400 | 56 |
| 8” | 360 | 15 | 1200 | 90 |
| 10” | 480 | 15 | 1200 | 132 |
| 12” | 900 | 20 | 900 | 145 |
| 14” | 1100 | 20 | 750 | 175 |
| 16” | 1500 | 20 | 750 | 220 |
| 18” | 1950 | 20 | 750 | 450 |
| 20” | 2480 | 20 | 750 | 675 |
Remark: 1. All these pump have two types: double flange one and single flange
one, please choose according to your actual requirements.
2. The pump material can be iron casting, alloy according to different
site situation requirements.
The information in the table is not complete.
Please click here to get more detailed data.
- Single stage, single suction, centrifugal sand pump.
- Easy operation, transportation and maintenance.
- Open impeller, wear resistance, big flow and better non-blockage performance.
- Two types: double flange and single flange.
- Two materials: iron cast and alloy.
- Mainly used for pumping sand from small river, lake, pond, pool.
- Unloading or sucking sand from large dredger.
