Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Wall Mounting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SIPANI
-
Model Number:
-
All In One PowerWall
-
Output Voltage (V):
-
230V AC
-

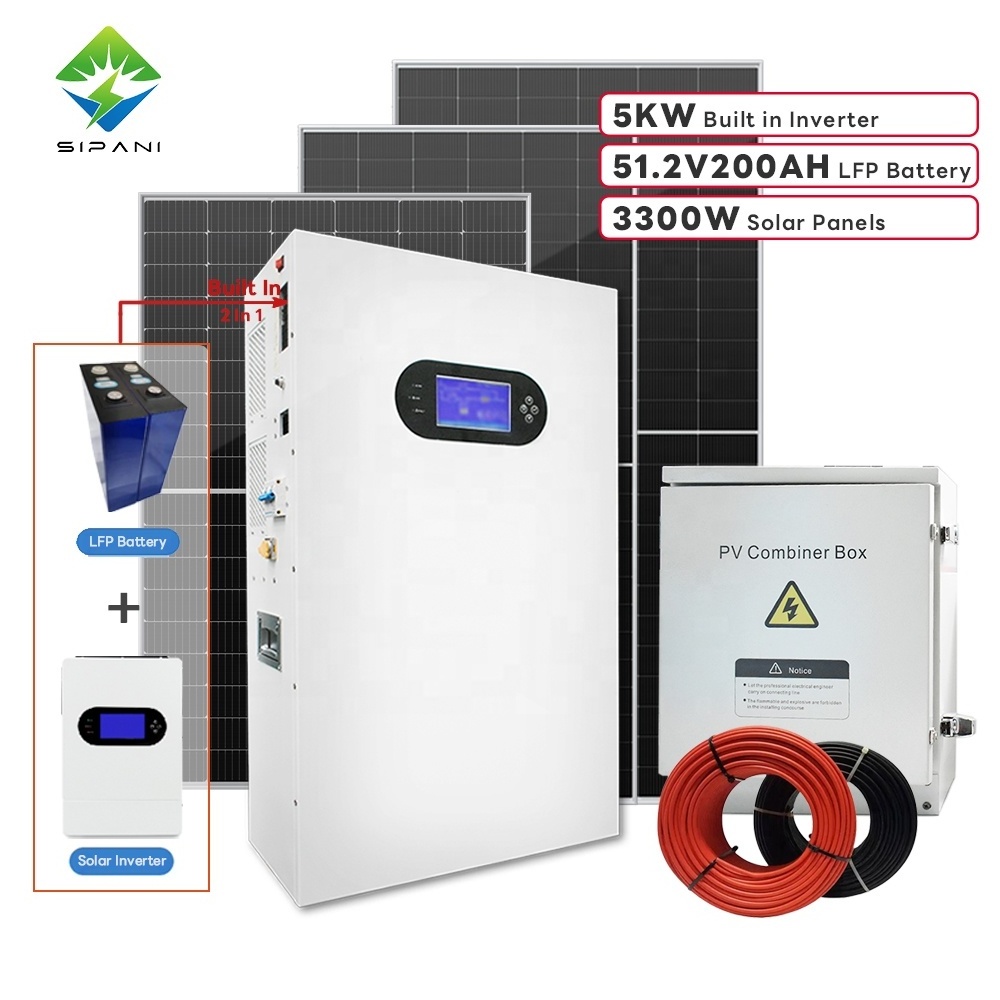

Product name:
-
Powerwall with Built In Inverter
-
Battery type:
-
LiFePO4 battery cell
-
Norminal Capacity:
-
5KW Inverter with 100AH/200AH Battery
-
Norminal Voltage:
-
48V/51.2V
-
Nominal energy:
-
5120WH/10240WH
-
Display:
-
LCD Screen
-
Cycle life:
-
6000 Cycles(@80%DOD)
-
Type:
-
Wall Mount Battery Inverter All In One
-
Communication:
-
RS485, CAN Option
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Wall Mounting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SIPANI
-
Model Number:
-
All In One PowerWall
-
Output Voltage (V):
-
230V AC
-
Product name:
-
Powerwall with Built In Inverter
-
Battery type:
-
LiFePO4 battery cell
-
Norminal Capacity:
-
5KW Inverter with 100AH/200AH Battery
-
Norminal Voltage:
-
48V/51.2V
-
Nominal energy:
-
5120WH/10240WH
-
Display:
-
LCD Screen
-
Cycle life:
-
6000 Cycles(@80%DOD)
-
Type:
-
Wall Mount Battery Inverter All In One
-
Communication:
-
RS485, CAN Option
| Product Name | SIPANI Powerwall with Built In Inverter |
| Nominal input volt | 230 VAC single phase |
| Nominal output volt | 230VAC ± 5% single phase |
| Battery Capacity | 48V200Ah |
| Function | Over-discharge, Overcharge, Shortcircuit Protection & Equalization Function |
| Bulit in Inverter | 5KW single phase inverter |
| Battery Nominal Volt | 48V/51.2V |
| Battery Nominal Capacity | 9.6 kwh /10.24 kwh |
| Battery Recommend Cutoff volt | 40.5V/43.2V |
| Battery Recommend Charging volt | 54V/57.6V |
| Working Temperature | -10℃~55℃ (Recommend10℃~40℃) |
| Storage Temperature | -20℃~45℃ (Recommend10℃~35℃) |
| Allowable Humidity range | 0~85% RH |
| Cycle Life | 6000 Cycles(@50%DOD) |
| Communication | RS485/CAN |
| Net Weight | 95.5kg |
| Product Dimension |
850*500*265mm (Handle not included 810*500*265mm) |
| Package Dimension | Wooden Box 940*600*445mm |
| Gross Weight | 112kg |
Power wall battery is a household energy storage device that can store energy directly from the grid, or it can store electricity generated by renewable energy sources such as wind energy and solar energy. Families can install individual batteries, or link them together for greater storage capacity.
SIAPNI Wall mounted battery (LiFePO4 Battery) solutions are highly integrated, deep-cycle backup power solutions for your solar home energy storage system. With rich experience and advanced techniques, the SIAPNI Power wall battery has the features of stylish design, long service life, maintenance-free, good safety performance, small size, lightweight, high discharge and charging efficiency, easy installation, good compatibility, and operability, etc.
LiFePO4 battery isn't the cheapest battery out there, but with features like long life and zero maintenance, it's the best investment you can make over time.
