Quick Details
-
Filling Accuracy:
-
0.5-1%, ±0.5%
-
Voltage:
-
220/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIANHE
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
3000 KG
-
Material:
-
Stainless Steel
-
Capacity:
-
1000-4500 bottles/hour
-
Filling range:
-
10-5000ml, can be customized
-
Name:
-
Liquid Detergent Filling Machine
-
Filling nozzles:
-
1/2/4/6/8/12, can be customized
-
Air pressure:
-
0.4-0.8Mpa
Quick Details
-
Machinery Capacity:
-
4000BPH, 6000BPH, 1000BPH
-
Packaging Material:
-
Plastic, Metal, Glass
-
Filling Material:
-
Oil
-
Filling Accuracy:
-
0.5-1%, ±0.5%
-
Voltage:
-
220/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIANHE
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
3000 KG
-
Material:
-
Stainless Steel
-
Capacity:
-
1000-4500 bottles/hour
-
Filling range:
-
10-5000ml, can be customized
-
Name:
-
Liquid Detergent Filling Machine
-
Filling nozzles:
-
1/2/4/6/8/12, can be customized
-
Air pressure:
-
0.4-0.8Mpa
Product Description

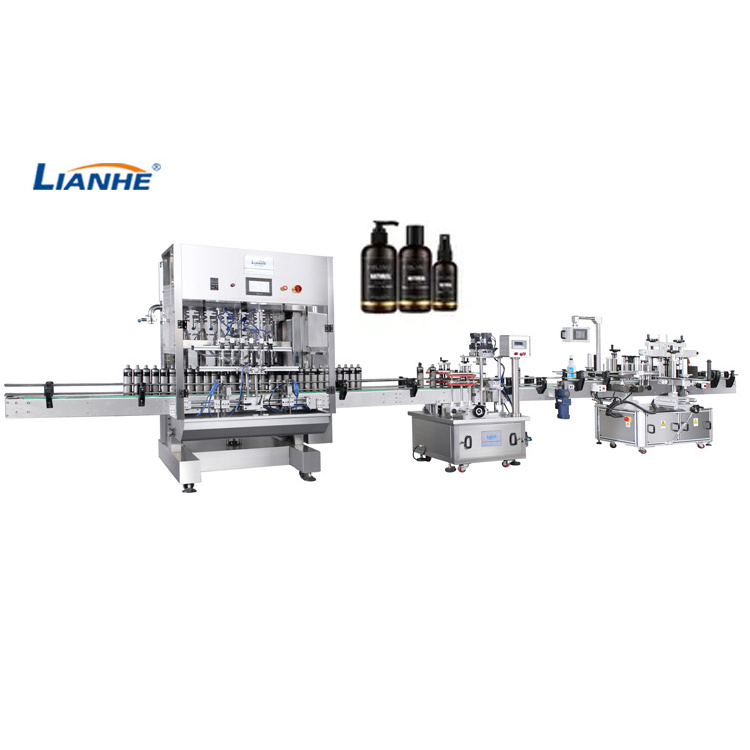

Full Automatic Filling Capping Labeling Machines
Full automatic plastic/glass bottle filling capping labeling line for liquid or viscous product, such as detergent, liquid soap, shampoo, hand sanitizer, hair dye, cream, ointment, paste, lotion, gel, etc.
Filling Nozzles
2/4/6/8/10 Customizable no-drop filling nozzles. Different sizes to fit different bottles, easy to be assembled.
All the material contact part is made of stainless steel 316L.
Various Filling Range
10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml. With adjustable speed conveyor belt, and high strength stainless steel frame, firm and wear-used.
Servo Piston Motor
TECO Servo piston driven motor to ensure higher filling accuracy and more steady performance. Easier to adjust the filling volume, just input via touch screen.
PLC Control System
Imported brands for PLC touch screen control system, high class appearance, easier and faster for operation.
filling capping labeling machine automatic filling capping labeling
Automatic Capping Machine
Four wheels screw type cap closer machine, with imported electric sensor, no cap no working. Wide application, suitable fordifferent types caps even for pump head, spray head, etc.
The convey speed can be adjusted by PLC control system, two belts transfer bottles more stable.
Automatic Labeling Machine
Multifunctional labeling machine, one machine model is suitable for many different shape bottles like flat, round, oval, taper, etc. Fast speed and high accuracy operation.
Product Paramenters
|
Filling Nozzles
|
1 nozzle
|
2 nozzles
|
4 nozzles
|
6 nozzles
|
8 nozzles
|
10 nozzles
|
12 nozzles
|
||||||
|
Filling Speed
|
20BPM
|
25BPM
|
30BPM
|
40BPM
|
50BPM
|
60BPM
|
70BPM
|
||||||
|
Filling Volume
|
50-150ml/10-250ml/50-500ml/100-1000ml/250-2500ml/500-5000ml
|
|
|
|
|
|
|
||||||
|
Filling Accuracy
|
±0.5-1%
|
|
|
|
|
|
|
||||||
|
Power Voltage
|
220V/380V/410V/440V, 60Hz, 3 Phase
|
|
|
|
|
|
|
||||||
|
Air Consumption
|
0.5-0.7Mpa
|
|
|
|
|
|
|
||||||
|
Remark
|
1. The filling speed based on 500ml/bottle water.
2. More options can be customized according to your requirements.
|
|
|
|
|
|
|
||||||
Whole Production Line Overview
We have focused on the whole production line over 25 years, including water treatment, mixing machine, storage tank, pump, automatic/semi automatic filling capping labeling machines, bottle collecting machine, tube or sachet filling and sealing machines, for liquid soap, detergent, shampoo, hand sanitizer, gel, cream, lotion, etc.
