Quick Details
-
Power:
-
103kw/2200rpm 119kw/2200rpm
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Baoding
-
Maximum Digging Height:
-
8032mm
-
Maximum Digging Depth:
-
4623mm
-
Machine Weight:
-
14500 kg
-
Rated Speed:
-
35 km/h
-
Warranty of core components:
-
1 year
-
Product name:
-
Mini Wheel Excavator
-
Keywords:
-
Wheel Excavator China
-
Type:
-
Hydraulic Wheel Excavator
-
Model:
-
BD150W-9C
-
Brand:
-
Baoding
-
Features:
-
Environmental, Long lifetime,Energy-saving,Large power engine
-
Total length during transportation:
-
7250mm
-
The total height during transportation:
-
3125mm
-
Tyre engineering tyre:
-
2X4
-
The biggest catch weight:
-
≤2000 kg
Quick Details
-
Operating Weight:
-
3ton, 7TON, 1ton, 6TON, 2ton, 4ton, 15 Ton, 0.8 TON, 9 ton, 8 Ton, 5ton, 10 TON, 1.8Ton, 1.2ton, 1.5TON, 14.5 ton
-
Bucket capacity:
-
0.3m³
-
Engine Brand:
-
YUCHAI
-
Power:
-
103kw/2200rpm 119kw/2200rpm
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Baoding
-
Maximum Digging Height:
-
8032mm
-
Maximum Digging Depth:
-
4623mm
-
Machine Weight:
-
14500 kg
-
Rated Speed:
-
35 km/h
-
Warranty of core components:
-
1 year
-
Product name:
-
Mini Wheel Excavator
-
Keywords:
-
Wheel Excavator China
-
Type:
-
Hydraulic Wheel Excavator
-
Model:
-
BD150W-9C
-
Brand:
-
Baoding
-
Features:
-
Environmental, Long lifetime,Energy-saving,Large power engine
-
Total length during transportation:
-
7250mm
-
The total height during transportation:
-
3125mm
-
Tyre engineering tyre:
-
2X4
-
The biggest catch weight:
-
≤2000 kg
Products Description

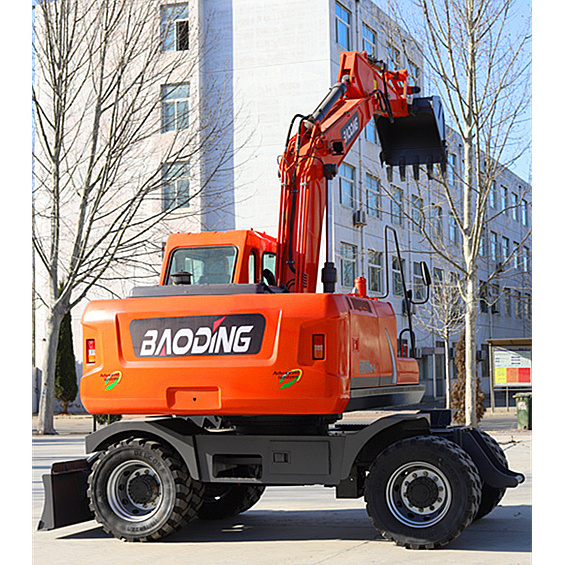

BD150W
wheel excavator mini digger machine
BD150W wheel excavator is municipal exclusive, often used for municipal greening, repair, cable and small pipeline laying, etc. The core value of this product lies in the realization of superior return on investment through high performance, low fuel consumption and high quality. Low cost of operation and expenditure, reliable durability, to
ensure continuous work.
ensure continuous work.
|
Total length during transportation
|
7250mm
|
The biggest catch weight
|
≤2000 kg
|
|
The total height during transportationis
|
3125mm
|
The biggest catch high
|
6100mm
7250mm |
|
Machine width
|
2495
|
Maximum working radius
|
7680mm
|
|
Tail turning radius
|
2200mm
|
Maximum working depth
|
4650mm
|
|
Wheelbase
|
2770mm
|
Tyre engineering tyre
|
2X4
|
|
The distance between the tires
|
1902mm
|
Counterweight ground clearance
|
1100mm
|
|
Power (kw/rpm)
|
103kw/2200rpm
119kw/2200rpm |
Minimum ground clearance
|
300 mm
|
|
Number of Cylinders
|
4
|
Engine model
|
Yuchai engin/YCummins engine
|
|
Aspiration
|
Turbocharging
|
Tire size
|
900X20-14PR
|
|
Hydraulic system pressure
|
32 Mpa
|
Tail turning radius
|
2490mm
|
|
-Hydraulic system flow)
|
2*130/min
|
Transmission ground clearance
|
397mm
|
|
Bucket capacity
|
0.6 m3-1 m3
|
Bulldozer plate height
|
590mm
|
|
Digging force of bucket
|
98 kN
|
Bulldozer width
|
2490mm
|
|
Climbing grade
|
30%
|
Bulldozer elevation
|
590mm
|
|
Rotation speed
|
13-14 r/min
|
Travel speed
|
10-31 km/h
|
|
Machine weight
|
14500 kg
|
Maximum Travel speed,rev
|
Hydraulic steering
|
|
Transmission Type
|
Automatic transmission
|
Service Brake Actuation
|
Oil brake
|
|
Fuel Tank
|
220L
|
Steering Configuration
|
Hydraulic steering
|
|
Hydraulic Reservoir
|
180L
|
Maximum excavation height
|
8032mm
|
|
Maximum unloading height
|
5672mm
|
Maximum excavation depth
|
4623mm
|
|
Maximum excavation radius
|
7539mm
|
Maximum working distance
|
7239mm
|
|
Movable arm length
|
4300mm
|
Arm length
|
2100mm
|
