Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Exiom
-
Model Number:
-
EX415-435TC(B)-108(HC)(182)BF
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Number of Cells:
-
108 Cells
-
Junction Box:
-
IP68
-
Connector:
-
MC4
-
Frame:
-
White Anodized Aluminium Alloy
-
Weight:
-
22 kg
-
Packaging:
-
37 Pcs/Pallet
-
Application:
-
Commercial
-
Port:
-
SHANGHAI/QINGDAO/NINGBO
-
OEM/ODM:
-
Highly Welcomed
-
Product Name:
-

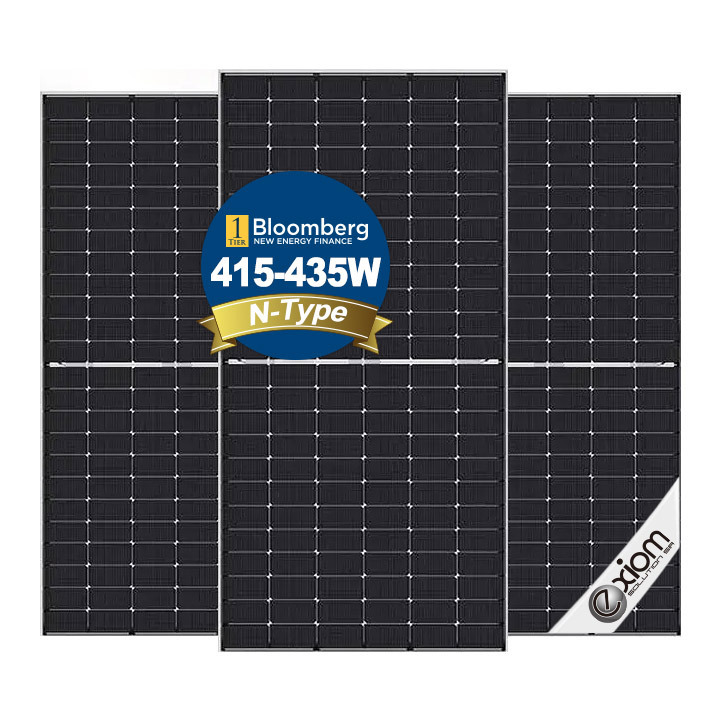

Bifacial Double Glass N-Type Solar Panel
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Half Cell, Bifacial, Double-glass, N-TYPE, TOPCON
-
Panel Efficiency:
-
22.28%
-
Warranty:
-
25 years
-
Brand Name:
-
Exiom
-
Model Number:
-
EX415-435TC(B)-108(HC)(182)BF
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Number of Cells:
-
108 Cells
-
Junction Box:
-
IP68
-
Connector:
-
MC4
-
Frame:
-
White Anodized Aluminium Alloy
-
Weight:
-
22 kg
-
Packaging:
-
37 Pcs/Pallet
-
Application:
-
Commercial
-
Port:
-
SHANGHAI/QINGDAO/NINGBO
-
OEM/ODM:
-
Highly Welcomed
-
Product Name:
-
Bifacial Double Glass N-Type Solar Panel
Product Features
Technical Specifications
|
Electrical Characteristics
|
|
|
|
|
|
|||||
|
Module Type
|
EX415TC
|
EX420TC
|
EX425TC
|
EX430TC
|
EX435TC
|
|||||
|
Maximum Power- Pmax(W)
|
415
|
420
|
425
|
430
|
435
|
|||||
|
Open Circuit Voltage - Voc(V)
|
37.92
|
38.11
|
38.30
|
38.49
|
38.68
|
|||||
|
Short- Circuit Current - Isc(A)
|
13.99
|
14.07
|
14.15
|
14.23
|
14.31
|
|||||
|
Voltage at Pmax -Vmp(V)
|
31.32
|
31.51
|
31.70
|
31.88
|
32.07
|
|||||
|
Current at Pmax - Imp(A)
|
13.25
|
13.33
|
13.41
|
13.49
|
13.57
|
|||||
|
Module Efficiency -ηm(%)
|
21.30
|
21.51
|
21.80
|
22.02
|
22.28
|
|||||
|
Power Tolerance(W)
|
（0，+5W）
|
|
|
|
|
|||||
|
Maximum System Voltage(V)
|
1500Vdc (IEC / UL)
|
|
|
|
|
|||||
|
Maximum Series Fuse Rating (A)
|
25A
|
|
|
|
|
|||||
|
Packing Configuration
|
|
|
|
External Dimensions
|
1722x1134*30mm
|
|
|
Container
|
40’HQ
|
|
|
Pieces per Pallet
|
37
|
|
|
Pallets per Container
|
26
|
|
|
Pieces per Container
|
962
|
|
About The Factory
Our strengths:
1. “Tier 1”brand that stands for guarantee, quality, and trust
2. 15+ year experience in the solar energy industry
3. Strategic cooperation with IBERDROLA and ADIWATT
4. 500MW+ solar panels MADE IN SPAIN
5. 24h response European local pre and after sales service
6. 48h delivery from European warehouse
Please feel free to contact us for more details.
