Quick Details
-
Power (kW):
-
13
-
Range of Spindle Speed(r.p.m):
-
4000 - 4500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Haomai
-
Voltage:
-
380V 415V
-
Dimension(L*W*H):
-
9000*1500*3800
-
Weight (KG):
-
500 KG
-
Specification and model:
-
WFJ-36
-
Productive capacity:
-
50-300kg
-
Size of raw material to be fed:
-
<15mm
-
Size of product:
-
80-320 meshes
-
Spindle speed:
-
4000r/minute
-
Usage:
-
powder grinding
-
Certification:
-
ISO9001, CE
-
Name:
-
Super Fine Grinder
Quick Details
-
Output (kg/h):
-
10 - 700 kg/h
-
Feeding Size (mm):
-
10 - 15 mm
-
Output Size (mesh):
-
80 - 450 mesh
-
Power (kW):
-
13
-
Range of Spindle Speed(r.p.m):
-
4000 - 4500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Haomai
-
Voltage:
-
380V 415V
-
Dimension(L*W*H):
-
9000*1500*3800
-
Weight (KG):
-
500 KG
-
Specification and model:
-
WFJ-36
-
Productive capacity:
-
50-300kg
-
Size of raw material to be fed:
-
<15mm
-
Size of product:
-
80-320 meshes
-
Spindle speed:
-
4000r/minute
-
Usage:
-
powder grinding
-
Certification:
-
ISO9001, CE
-
Name:
-
Super Fine Grinder
Products Description
WORKING PRINCIPLE

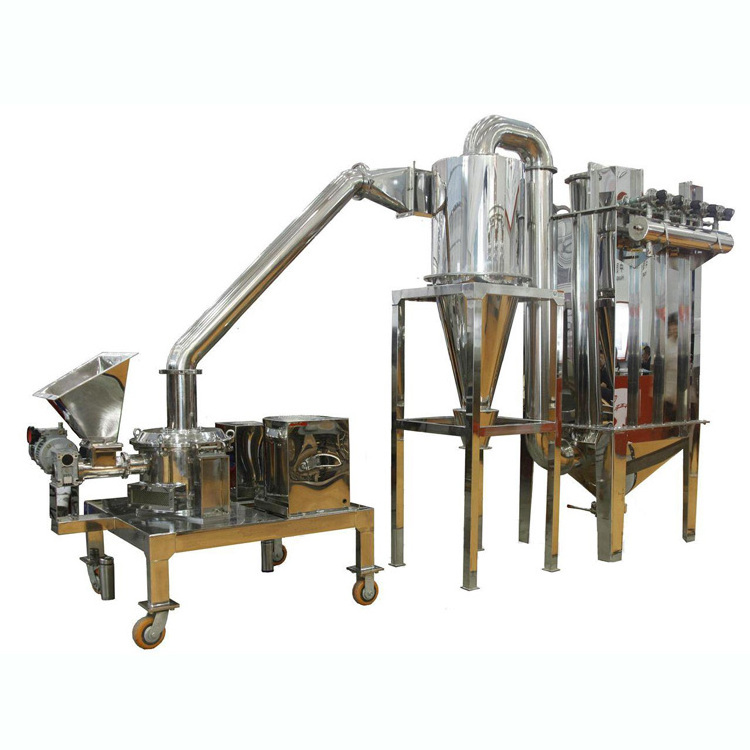

Materials are transported into smashing mesh via screw conveyor, then crushed by the high-speed revolving razor blade. With the negative pressure, materials will be transported into cyclone separator, ejected by pass-breezing machine. Without the powder float in whole producion line the powder float in the sky.
The machine made up of main engine, auxility engine and electric-box, featuring winnowing without sieve or mesh, ever granule size, continuous operation, etc. The machine reaches advanced world-level and is widely used for material grinding in chemical and foodstuff industries, etc.
Specification
|
Specification & model
|
WFJ-15
|
WFJ-18
|
WFJ-36
|
WFJ-60
|
|
Productive
|
10-150
|
20-250
|
60-600
|
100-1000
|
|
Feeding size
|
<10mm
|
<12mm
|
<15mm
|
<18mm
|
|
Discharging size
|
80-200 Meshes
|
80-300 Meshes
|
80-320 Meshes
|
80-400 Meshes
|
|
Total Power
|
13.5KW
|
17.5KW
|
38KW
|
65.2KW
|
|
Spindle Speed
|
4500
|
4480
|
4000
|
4000
|
|
Dimension(L*W*H)
|
4200*1200*2800
|
4700*1250*2900
|
9000*1500*3800
|
9000*2700*5280
|
Applied material
The scope of application of machine is wide . It can crush and grade many raw materials such as chemicals , foodstuff , cosmetic , dyestuff , resin , shell materials and so on.
Detailed Images
Strict selection of materials、Handle details、Consistent quality
