Quick Details
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6x6
-
Brand Name:
-
Sinotruk Howo
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8.5x2.5x3.4m
-
Product name:
-
SInotruk HOWO chassis
-
Driving type:
-
6x6
-
Engine:
-
WD615. 69/WD615.47/420hp
-
Transmission:
-
HW19710 10 gear
-
Loading capacity:
-
30ton
-
carriage volume:
-
15-25cbm
-
Steering:
-
ZF
-
front axle:
-
drum brake
-
rear axle:
-
double reduction
-
Cabin:
-
with berth, A/C
Quick Details
-
Condition:
-
New
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 2
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6x6
-
Brand Name:
-
Sinotruk Howo
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8.5x2.5x3.4m
-
Product name:
-
SInotruk HOWO chassis
-
Driving type:
-
6x6
-
Engine:
-
WD615. 69/WD615.47/420hp
-
Transmission:
-
HW19710 10 gear
-
Loading capacity:
-
30ton
-
carriage volume:
-
15-25cbm
-
Steering:
-
ZF
-
front axle:
-
drum brake
-
rear axle:
-
double reduction
-
Cabin:
-
with berth, A/C

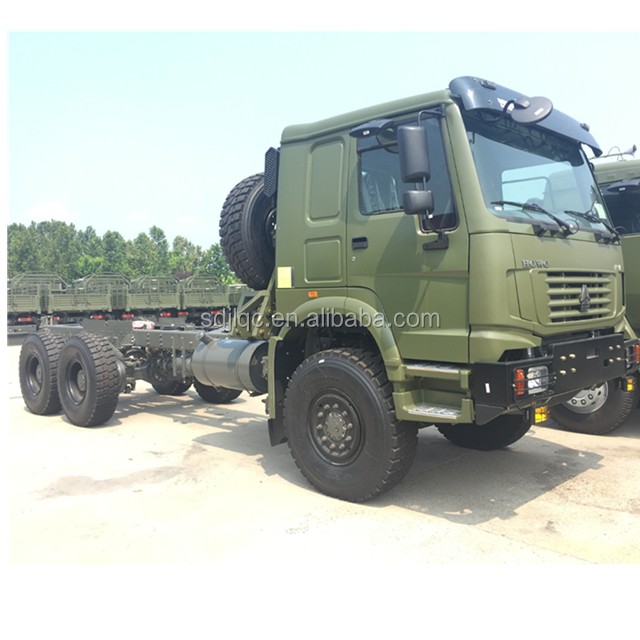

Brand new sinotruk howo truck chassis 4x2/4x4/6x4/6x6/8x4/8x8
Sinotruk howo truck chassis 6x6
Sinotruk howo truck chassis 8x4
Sinotruk howo truck chassis 8x8
|
Engine |
Make:SINOTRUK 266hp/290hp/336hp/371hp/380hp/420hp |
|
|
Clutch |
Single- plate dry coil-spring clutch, diameter 4 2 0mm, mechan ically operating with air assistance |
|
|
Transmission |
HW19710, 10forwards, 2 reverse |
|
|
Propeller Shaft |
Double universal joint propeller shaft with gear-shaped coupling flange |
|
|
Front Axle |
HF9/HF7/STR drum brake |
|
|
Rear Axles |
HC16 /ST6axle ratio 5.73 |
|
|
Chassis |
Frame: double frame Front suspension: spring leaf Rear suspension: spring leaf Spare wheel carrier: with one spare wheel Fuel tank: with 300 L fuel tank with locking fuel cap |
|
|
Steering |
ZF, hydraulic steering with power assistance Ratio: 2 6.2 : 1 |
|
|
Brakes |
Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake No ABS |
|
|
Wheel & Types |
1200R20/12R24/13R22.5/1200-20/1100R20/12R22.5 |
|
|
Driver ’ s cab |
HW70/HW76 cab, one berth , all steel forward control, 55 o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver ’ s seat and rigid adjustable co-driver ’ s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, and shock absorber air conditioner |
|
|
Electrics |
Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW Alternator: 28V, 1500W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, reverse lamp |
|
|
Dimensions in mm available |
5000mm-----9500mm |
|
