Quick Details
-
Model Number:
-
FS1325P
-
Voltage:
-
380v
-
Rated Power:
-
8.5KW
-
Dimension(L*W*H):
-
1300mm*2500mm*200mm
-
Weight (KG):
-
1800 KG
-
Year:
-
2020
-
plasma cutting machine:
-
cnc plasma cutter for cast iron aluminum
-
use:
-
metal cutting
-
materials:
-
steel,aluminum,ect.
-
control system:
-
START control system
-
power:
-
THERMADYNE plasma power
-
arc pressure:
-
automatic arc pressure adjustable
-
motor and drive:
-
Stepping drive and motor
-
software:
-
FASTCAM software
-
machine body:
-
thicken cast steel structure
-
packing:
-
plywood case package
Quick Details
-
Dimensions:
-
1300*2500
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Forsun
-
Model Number:
-
FS1325P
-
Voltage:
-
380v
-
Rated Power:
-
8.5KW
-
Dimension(L*W*H):
-
1300mm*2500mm*200mm
-
Weight (KG):
-
1800 KG
-
Year:
-
2020
-
plasma cutting machine:
-
cnc plasma cutter for cast iron aluminum
-
use:
-
metal cutting
-
materials:
-
steel,aluminum,ect.
-
control system:
-
START control system
-
power:
-
THERMADYNE plasma power
-
arc pressure:
-
automatic arc pressure adjustable
-
motor and drive:
-
Stepping drive and motor
-
software:
-
FASTCAM software
-
machine body:
-
thicken cast steel structure
-
packing:
-
plywood case package

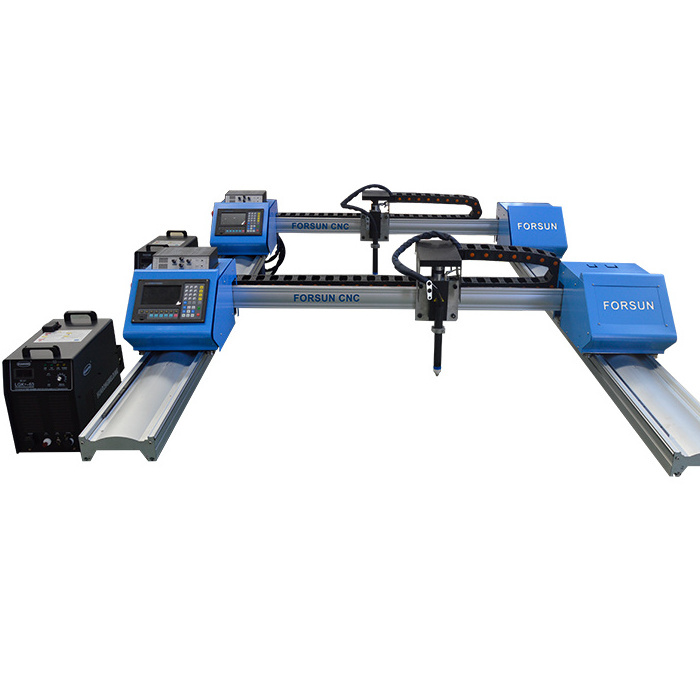

37% discount!low deformation high speed stable precision table type cnc plasma cutting machine cnc cutting DIY
What's the feature of our CNC Plasma Cutting Machine?
♦ Working area: 1300*2500mm
♦ Heavy duty thicken machine body
♦ 100A plasma power
♦ Stepper motor and Leadshine Driver
♦ Start Controller system from Beijing
♦ Automatic Arc Pressure adjustable
♦ HIWIN Linear Guide Rail
♦ Helical Rack and Pinion
♦ Fast Cam software
♦ Plywood package
♦ warranty : 1.5 years
What's the data of Our CNC Plasma Cutting Machine ?
|
Name |
Specification |
|
Working Area(X*Y) |
1300×2500mm |
|
Machine Structure |
Welded |
|
X Y Guide Rail |
Taiwan HIWIN Square Rail |
|
X Y Transmission |
Imported Rack gears |
|
Drive Mode |
Stepper Motor (Optional Servo ) |
|
Control System |
START |
|
Max thickness |
0.3-22mm |
|
Plasma Generator |
100A Huanyuan plasma power |
|
Cutting Speed |
0-8000mm/min |
|
Working Voltage |
3-Phase 380V/2-phrase 220V |
|
G.W. |
1400KGS |
What's the advantages of Our CNC Plasma Cutting Machine?
| 1. Plasma power |
Huayuan 100A power Famous brand made in china, low price, Cutting thickness 0.3-22mm |
| 2. Controller system |
Beijing Start control system, configured 7-inch high-resolution true color LCD display. can be dynamically cut graphics running track. |
| 3. Motor |
450B stepper motors With high quality & stronger power, ensure machine work very well. |
| 4. Driver |
Leadshine 860H Drivers It can run with smaller noise, lower heating, smoother movement and have better performances at higher speed.Save human strength and save time. |
| 5. Automatic Arc Pressure adjustable |
Beijing Start Adjust the torch height during cutting. Perforated height self-positioning |
| 6. software |
Fast Cam
nesting software for machine. Using it, and finally export G code, then can be recognized by machine |
What's the service of our CNC Plasma Cutting Machine?
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
