Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LUNYEE
-
Model Number:
-
MY1016Z
-
Torque:
-
0.98 N.m
-
Power:
-
250w
-
Voltage:
-
24v
-
electromagnetic brake:
-
Yes
-
Ratio:
-
23.2:1
-
Speed:
-
120rpm
-
handle:
-
Yes
-
Thread:
-
internal thread
-
Color:
-
balck
-
Weight:
-
3kg
-
Working hours:
-
S2 : 60
Quick Details
-
Speed(RPM):
-
2400 / 3700 RPM
-
Continuous Current(A):
-
≤13.7 / 14.8 A
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LUNYEE
-
Model Number:
-
MY1016Z
-
Torque:
-
0.98 N.m
-
Power:
-
250w
-
Voltage:
-
24v
-
electromagnetic brake:
-
Yes
-
Ratio:
-
23.2:1
-
Speed:
-
120rpm
-
handle:
-
Yes
-
Thread:
-
internal thread
-
Color:
-
balck
-
Weight:
-
3kg
-
Working hours:
-
S2 : 60
Product Description

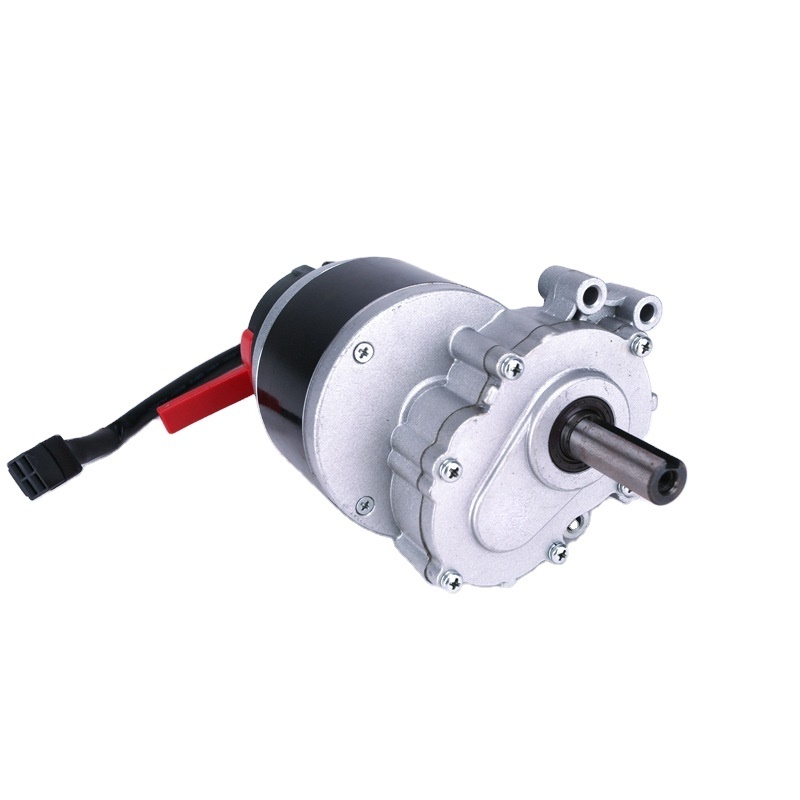

LOW SPEED DC 24V 250W BRUSH MOTOR
Output speeds:120 rpm
Single motor weight with brake type (3.5kg)
Output shaft: diameter 17mm and length 44mm (keyway type)
Output shaft: diameter 17mm and length 44mm (keyway type)
Specification:
Model: MY1016Z wheelchair motor
voltage: 24 v
power: 250 w
No-load current:≤4.0A
No load speed:120rpm
Rated torque:0.98N.m
Rated speed:2400/3700rpm
Rated current: 13.7/14.8A
EFF:≥70/76%
Ratio:23.2:1
|
Rated voltage
|
24v
|
|
No-load speed
|
120rpm
|
|
Rated power
|
250w
|
|
Rated current
|
14.8A
|
|
IP rating
|
IP44
|
Detailed Image
This type motor is widely used for electric wheelchair, and also other electric tool, like lawn mower or other electric vehicle, atv or agv. .
Packing
Packing Method :
1.Outer packing: Standard export carton with required shipping marks
2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
Our Service
We will answer your question in time.
Q1:What information do i need to provide when send inquiry?A: For AC or DC motors, it is necessary to tell us rated
power,voltage,output speed,output torque,work conditions, installation way, insulation class,IP class etc. For Speed reducer,it is perfect that provide servo motor drawing and parameters, gear ratio is needed.
Q2:What about your warranty?
A:Follow the user manual ,1 year for conventional products.customized product requires negotiation.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
