Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
COOL WHITE
-
Product Weight（kg）:
-
1
-
Input Voltage(V):
-
DC24V
-
Lamp Luminous Flux(lm):
-
6929
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-30 - 70
-
Working Lifetime(Hour):
-
40000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XineLam
-
Model Number:
-
RX-BKT28-500240
-
Item Type:
-
Panel Lights
-
Dimension:
-
500x240x1mm
-
LED QTY:
-
300pcs
-
LED spacing:
-
20mm
-
CCT:
-
CW5800-6250K,WW2800~3200K, NW3800~4200K
-
Net Weight:
-
110g/pcs
-
LED to face distance:
-
depth 30mm
-
Continuous connection QTY:
-
3pcs (180W) Parallel and series
-
Optional types:
-
36W, 12V or Constant current type
-
Patent No.::
-
ZL201420249938.2
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Application:
-
Hotel
-
Lamp Body Material:
-
Rolled Copper FPC
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
COOL WHITE
-
Product Weight（kg）:
-
1
-
Input Voltage(V):
-
DC24V
-
Lamp Luminous Flux(lm):
-
6929
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-30 - 70
-
Working Lifetime(Hour):
-
40000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XineLam
-
Model Number:
-
RX-BKT28-500240
-
Item Type:
-
Panel Lights
-
Dimension:
-
500x240x1mm
-
LED QTY:
-
300pcs
-
LED spacing:
-
20mm
-
CCT:
-
CW5800-6250K,WW2800~3200K, NW3800~4200K
-
Net Weight:
-
110g/pcs
-
LED to face distance:
-
depth 30mm
-
Continuous connection QTY:
-
3pcs (180W) Parallel and series
-
Optional types:
-
36W, 12V or Constant current type
-
Patent No.::
-
ZL201420249938.2

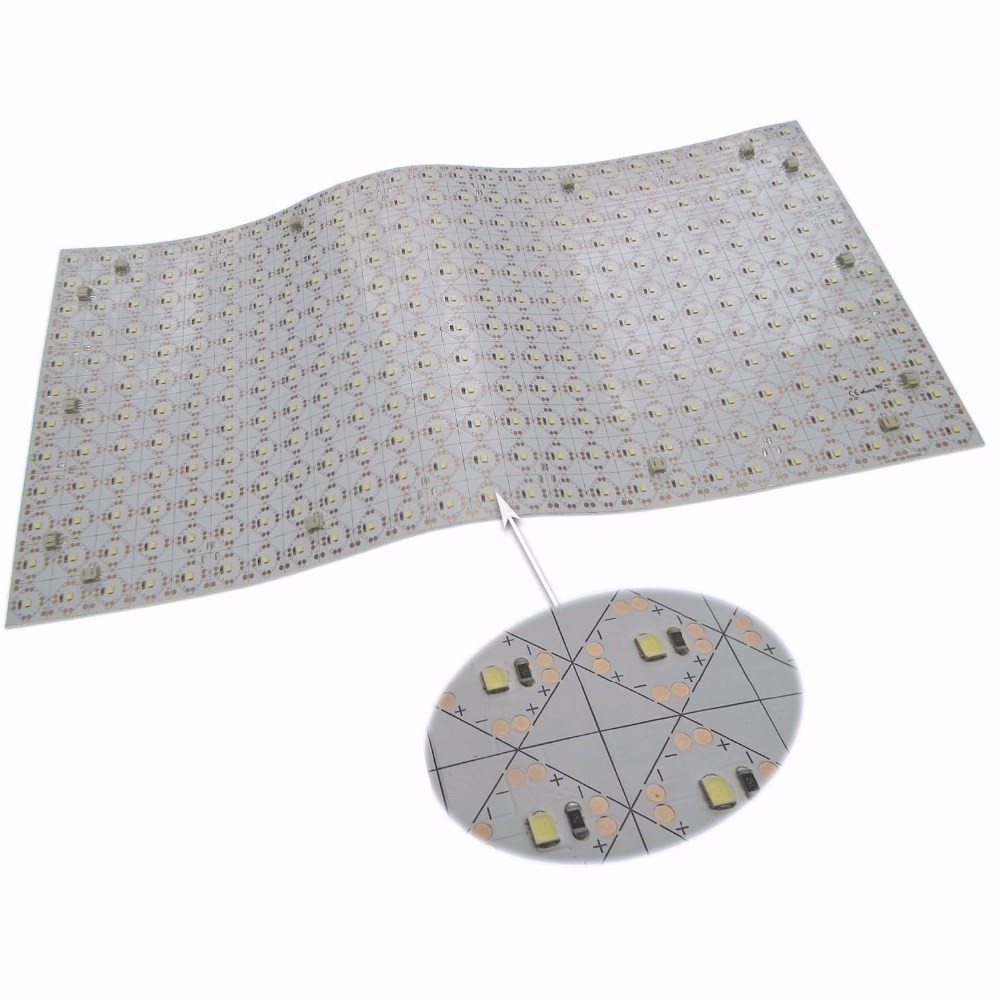

Lumi Sheet Flex - Lightweight, 1mm Flexible LED light panel
Original Design
Cut into any sizes & shapes you need !
Flexible, Bendable, Cuttable
Flexible lighting systems allow you to put light wherever you desire, along a plane, around a bend and in the darkest corner of a room.
NEW Design Flexible LED Light Sheet dedicated to lightbox, signs, display, poster, especially suitable for curve surface backlight applciation, such as letters, logos and so on.
RX-BKT28-500235D Series Without Lens
-LED sheet light, flexible LED module
-One LED a group, Cut the shape you need
-Dimensions 500x235mm, 105LED
-LED spacing 33.33mm
-Patent No .: ZL201420249938.2
-Lamps and lanterns, special-shaped lamps light source, advertising backlight source
-Input voltage DC12V (optional DC24V)
-LED chip luminous efficiency of 150Lm/W
-CE RoHS FCC
RX-BKT28T-500235D With Lens
-LED sheet light, flexible LED module
-160° TV Lens, Diffuse light.
-Dimensions 500x235mm, 105LED
-LED spacing 33.33mm
-Patent No .: ZL201420249938.2
-Lamps and lanterns, special-shaped lamps light source, advertising backlight source
-Input voltage DC12V (optional DC24V)
-LED chip luminous efficiency of 150Lm/W
-CE RoHS FCC
Q1. Can I have a sample order for LED light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 100-200pcs.
Q3. Do you have any MOQ limit for LED light order?
A: Low MOQ, 1pcs for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for LED light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. How to send the Payment ?
A: Bank transfer, Western Union, Paypal, Credit Card and Cash is also acceptable.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
