Quick Details
-
Brand Name:
-
Sunflower/OEM
-
Model Number:
-
YN-100
-
Name:
-
pressure gauge
-
Pressure range:
-
0-1Mpa or customize
-
Material:
-
SS304,SS316
-
Connection:
-
lower connection,center back connection,lower back connection
-
Connection thread:
-
M20*1.5 G1/4 G1/2 NPT1/2 NPT1/4
-
Mounting:
-
thread or flange
-
Dial diameter:
-
40/50/60/100/150/200/250mm
-
Application:
-
Hydraulic Industries
-
Accuracy:
-
1.6%
Quick Details
-
Type:
-
Boiler Gauges, Pressure Indicators, Pressure Gauge Kits, Barometers, Analog Compound Gauges, Capsule Pressure Gauges, Low-Pressure Gauges, Vacuum Gauges, Diaphragm Pressure Gauges
-
Warranty:
-
1 year
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Sunflower/OEM
-
Model Number:
-
YN-100
-
Name:
-
pressure gauge
-
Pressure range:
-
0-1Mpa or customize
-
Material:
-
SS304,SS316
-
Connection:
-
lower connection,center back connection,lower back connection
-
Connection thread:
-
M20*1.5 G1/4 G1/2 NPT1/2 NPT1/4
-
Mounting:
-
thread or flange
-
Dial diameter:
-
40/50/60/100/150/200/250mm
-
Application:
-
Hydraulic Industries
-
Accuracy:
-
1.6%

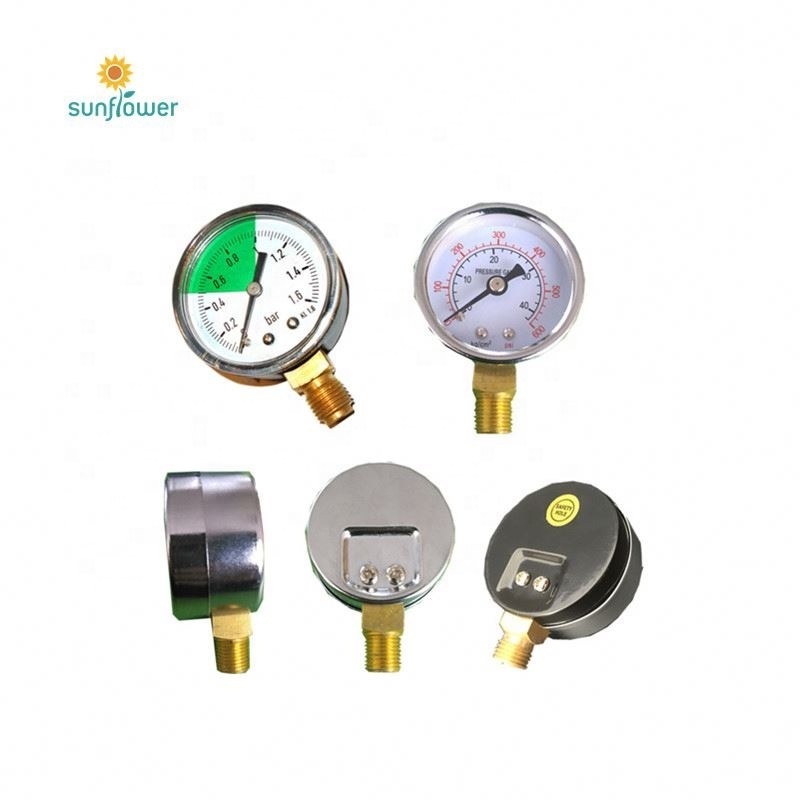

100mm 150mm dial stainless steel pressure gauge lower back connection
Pressure gauge refers to an instrument that uses elastic elements as sensitive elements to measure and indicate pressure higher than the ambient pressure. It is extremely popular, and it covers almost all industrial processes and scientific research fields. It can be seen everywhere in the fields of heating pipe network, oil and gas transmission, water and gas supply system, vehicle repair and maintenance factories and stores. Especially in the process of industrial process control and technical measurement, because the elastic sensitive element of the mechanical pressure gauge has the characteristics of high mechanical strength and convenient production, the mechanical pressure gauge is more and more widely used.
Specifications
|
Dial |
1.5'',2'',2.5’’,4”, 6”,8'',10''(40mm,50mm,63mm,100mm, 150mm,200mm,250mm) |
|
Case |
Full stainless steel,iron |
|
Lens |
Common glass or Safety glass |
|
Ranges |
-1Bar(-30"Hg)-0-1000Bar(15000Psi) Minimum: 0~0.1Mpa Maximum: 0-100Mpa Minimum negative pressure: -0.1Mpa Maximum negative pressure: -0.1 ~ 2.4Mpa |
|
Accuracy Class(Indication) |
1.0%;1.5% |
|
Accuracy Class(Setting) |
4% |
|
Quantity of Contacts |
1 or 2, ( Φ 100mm, 3 or 4 contacts available) |
|
Maximum Working Voltage |
AC380V or 220V |
|
Maximum Current |
1A |
|
Contact Power Temperature Effects |
30VA When temperature deviates from 20 ± 5 °C , the error |
|
Connection Size |
1/8",1/4", 3/8",1/2"; PT(BSPT,ZG),BSP(G,PF),NPT etc. Customized |
|
Protection Class |
Standard type: IP 54 ; Vibration-proof type: IP65 |
|
Filling for vibration-proof style |
Special silicon or glycerin liquid filled |
|
Temperature Effects |
When temperature deviates from 20 ± 5 °C , the error |
|
Environment condition |
Temperature -40~70 ; Relative Humidity 85% |
|
Shock-proof class |
V*H*3 for YXC type V*H*4 for YXN type |
|
Technical parameter of electric contact |
Max. Working Voltage: 220V; AC380V Max. Power on Contact: 30VA (Resistant Loading) Control Way: by adjusting magnetic contact switch |
