Quick Details
-
Weight (KG):
-
1500
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LTPM CHINA
-
Dimension(L*W*H):
-
2600*750mm*4500mm
-
Product name:
-
Pillow Type Packing Machine
-
Model Number:
-
KD-260
-
Packing speed:
-
20-120 bags/ min
-
Packing material:
-
Laminated Film(PE
-
Main Function:
-
pillow type pack
-
Bag type:
-
pillow type
-
Color:
-
Silver
-
Usage:
-
Bag Making
-
Film material:
-
Laminatied Film
Quick Details
-
Function:
-
BOXING, Capping, COATING, Embossing, FILLING, Gluing, Labeling, Laminating, Sealing, SLITTING, Wrapping
-
Packaging Type:
-
Bags, Barrel, Belt, case, Film, Stand-up Pouch, Foil
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
1500
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LTPM CHINA
-
Dimension(L*W*H):
-
2600*750mm*4500mm
-
Product name:
-
Pillow Type Packing Machine
-
Model Number:
-
KD-260
-
Packing speed:
-
20-120 bags/ min
-
Packing material:
-
Laminated Film(PE
-
Main Function:
-
pillow type pack
-
Bag type:
-
pillow type
-
Color:
-
Silver
-
Usage:
-
Bag Making
-
Film material:
-
Laminatied Film
Attention:
---1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact
information, please click "Contact Supplier" to send mail to us.
information, please click "Contact Supplier" to send mail to us.
---2.Because of the time difference, we suggest that you can choose to
send us an inquiry
instead of online chat.
3.When
sending us an inquiry
or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description

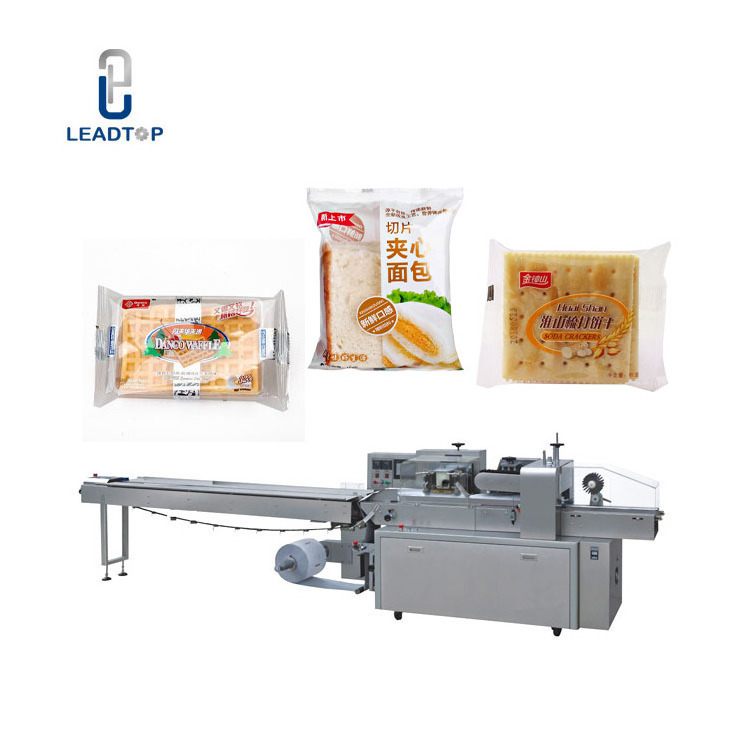

KD-260C Horizontal Packing Machine is a kind of advanced equipment applicable for such different materials as composite film,paper film and aluminum film to pack various solid and regular-shaped objects.
Can Be Applied to:
Can Be Applied to:
Food ( snack bar, bread, cookies, ice lolly cake, chocolate ), Plastic(cutlery, tray ), Hardware, Soap, Sponge,Tissue, Card etc.Packaging various kinds of regular objects.
Technical Parameters
|
Model
|
KD-260
|
KD-350
|
KD-550
|
||
|
Max.Film width
|
260mm
|
350mm
|
550mm
|
||
|
Max capacity of packing
|
20-120 pcs/ min
|
|
|
||
|
Film thickness
|
0.03-0.08mm
|
|
|
||
|
Bag Length
|
60-300 ( Do not exceed this size )
|
|
|
||
|
Packing width
|
25-260mm
|
25-350mm
|
25-550mm
|
||
|
Packing Height
|
≤80mm
|
|
|
||
|
Power Supply
|
220V 2.4 kW
|
|
|
||
|
Overall dimensions
|
2600*750*4500mm
|
3500*880*4500mm
|
3800*920*4500mm
|
||
|
Total Weight
|
680kg
|
700kg
|
700kg
|
||
Equipment introduction
Main Features:
1.Dual inverters control, bag length can be set and cut in one step.
1.Dual inverters control, bag length can be set and cut in one step.
2.Computer interface operation, convenient and quick parameter setting.
3.PLC control, stable performance available for upgrade.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Using double encoder enables stable performance.
Optional accessories:
1:Date Coder
3.PLC control, stable performance available for upgrade.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Using double encoder enables stable performance.
Optional accessories:
1:Date Coder
2:Touchable Screen
3:Automatic Punching Device
4:Alternative sealing patterns and notch
5:Auto labeling device
6:Deoxidizer chute device 7:Gas flushing device
3:Automatic Punching Device
4:Alternative sealing patterns and notch
5:Auto labeling device
6:Deoxidizer chute device 7:Gas flushing device
COLOR CODE TRACKER
High sensitivity color tracking, accurate perception of sealing position, reduce the loss rate.
HORIZONTAL SEAL
There are two temperature PID intelligent thermometer, independent control, can be set to adjust the packaging film temperature,
to achieve good packaging effect.
to achieve good packaging effect.
END SEAL
Set the number of packages and it will stop automatically. The film will not stick on the cutter, prolong the life of the cutter,
and will not waste the film.
and will not waste the film.
304 FEEDING PLATE
Using 304 food grade stainless steel material, packaging products are safer, better corrosion resistance, longer machine life.
Related Products
Company Introduction
Our Company
LTPM CHINA Is Recognized As a Major Biotechnology Materials Science Biological Science Daily Chemical Products And Food Packing Equipment Manufacturer And Supplier. Our Company Is Founded In Ruian, China, With a Base Of 18 Years Of Prior Experience In The Biotechnology Industry , Biological Science Industry, Materials Science Industry, Chemical Industry, Food And Agriculture Industry.
This Has Allowed Us To Expand Our Business In a Well-Planned Manner. We Now Offer a Comprehensive Whole Production Line Of Quality Machines At Competitive Prices.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
