Quick Details
-
Product name:
-
IPTV Streaming Encoder
-
Input:
-
8/12/16/20/24 HD.MI optional
-
Resolution:
-
1920*1080_60P, 1920*1080_60i
-
Video encoding:
-
MPEG-4 AVC /H.264
-
Audio encoding:
-
MPEG-1 Layer 2
-
Bit-rate:
-
1Mbps~13Mbps each channel
-
Stream output:
-
IP (MPTS/SPTS) output over UDP/RTP
-
Management:
-
Network management(WEB)
-
Upgrade:
-
Ethernet software
-
Application:
-
DTV,DVB,IPTV,OTT
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
COLABLE
-
Model Number:
-
COL5181H
-
Product name:
-
IPTV Streaming Encoder
-
Input:
-
8/12/16/20/24 HD.MI optional
-
Resolution:
-
1920*1080_60P, 1920*1080_60i
-
Video encoding:
-
MPEG-4 AVC /H.264
-
Audio encoding:
-
MPEG-1 Layer 2
-
Bit-rate:
-
1Mbps~13Mbps each channel
-
Stream output:
-
IP (MPTS/SPTS) output over UDP/RTP
-
Management:
-
Network management(WEB)
-
Upgrade:
-
Ethernet software
-
Application:
-
DTV,DVB,IPTV,OTT
IPTV Streaming Server System

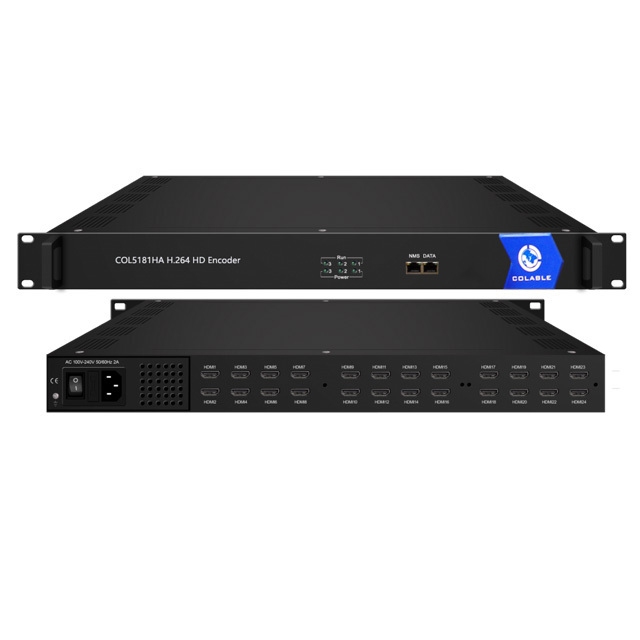

HD H.264 IPTV Live Streaming Video Encoder COL5181HA
8/12/16/20/24*HDM
input to
8/12/16/20/24*SPTS or 1MPTS IP
out
Outline
COL5181HA H.264 HD Video Encoder is a professional HD audio & video encoding and multiplexing device. It has 8 HDM
(12/16/20/24 HDMI optional) video input interfaces, supporting MPEG-4 video encoding and MPEG 1 Layer 2 audio
encoding. This device can simultaneously encode 8(12/16/20/24 HDMI optional) channel HD audio & video; moreover, it
has an IP output port can support 1MPTS and 8SPTS (12/16/20/24 SPTS) IP out. In conclusion, its high integrated and cost
effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end,
satellite digital TV broadcasting etc.
Features
* 8/12/16/20//24× HDM video inputs with 8/12/1620//24 SPTS and 1 MPTS output through Data 1 or Data 2
* Support MPEG4 AVC/H.264 video encoding format
* MPEG1 Layer II audio encoding format, support audio gain adjustment
* Support 1 ASI output (optional) as copy of MPTS
* Support IP output over UDP and RTP
* Support QR code, LOGO, OSD insertion
* Support "Null PKT Filter" function
* Support PID Remapping
* Support PCR accurate adjusting
* Support PSI/SI editing and inserting
* Control via web management, and easy updates via web
* Lowest cost per channel, breakthrough price
Principle Chart
Specifications
|
Input
|
16 HDM-I inputs ( 8/12/20/24 input optional)
|
|
|
||
|
Video
|
Resolution
|
Input
|
1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i,
1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, |
||
|
|
|
output
|
1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P,
720×576_25P,720×480_30P, |
||
|
|
Encoding
|
MPEG-4 AVC/H.264
|
|
||
|
|
Bit-rate
|
1Mbps~13Mbps each channel
|
|
||
|
|
Rate Control
|
CBR/VBR
|
|
||
|
|
GOP Structure
|
IP...P (P Frame adjustment, without B Frame )
|
|
||
|
Audio
|
Encoding
|
MPEG-1 Layer 2
|
|
||
|
|
Sampling rate
|
48KHz
|
|
||
|
|
Resolution
|
24-bit
|
|
||
|
|
Bit-rate
|
64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
|
|
||
|
Multiplexing
|
Maximum PID
Remapping |
180 input per channel
|
|
||
|
|
Function
|
PID remapping ( automatically or manually)
|
|
||
|
|
|
Accurate PCR adjusting
|
|
||
|
|
|
Generate PSI/ SI table automatically
|
|
||
|
Stream output
|
8 SPTS (12/16/20/24 SPTS) IP or 1MPTS output over UDP/RTP, 1*1000 Base-T Ethernet interface
ASI output(optional) as copy of MPTS |
|
|
||
Details for HD Encoder
