Quick Details
-
Voltage:
-
380V/220V, 380v/50hz
-
Power:
-
5.5kw, 5.5kw
-
Dimension(L*W*H):
-
1500*600*1000mm
-
Weight:
-
450
-
Product name:
-
used thread roller machine
-
Processing range:
-
16-40mm
-
Rotating speed:
-
40-62r/min
-
Max threading length:
-
100mm
-
Threading degree:
-
75°/60°
-
Thread pitch:
-
2.5mm/3mm
-
Working efficiency:
-
30-40mm/min
-
Dimension:
-
1500*600*1000mm
Quick Details
-
Place of Origin:
-
Henan, China
-
Application:
-
Construction
-
Brand Name:
-
YUGONG
-
Voltage:
-
380V/220V, 380v/50hz
-
Power:
-
5.5kw, 5.5kw
-
Dimension(L*W*H):
-
1500*600*1000mm
-
Weight:
-
450
-
Product name:
-
used thread roller machine
-
Processing range:
-
16-40mm
-
Rotating speed:
-
40-62r/min
-
Max threading length:
-
100mm
-
Threading degree:
-
75°/60°
-
Thread pitch:
-
2.5mm/3mm
-
Working efficiency:
-
30-40mm/min
-
Dimension:
-
1500*600*1000mm
Product Description

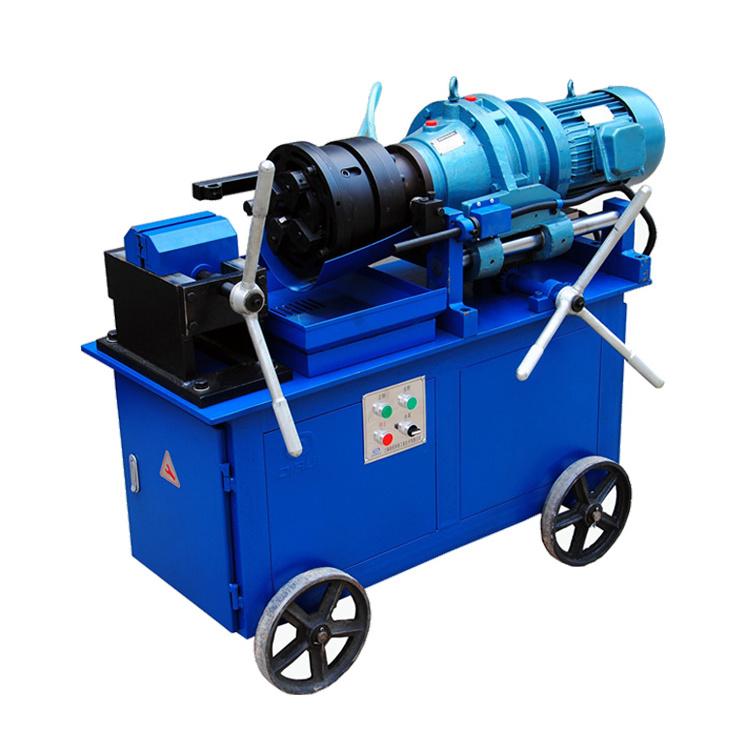

Steel bar thread rolling machine
is mainly used for rolling straight threaded head of ribbed steel bar in construction engineering. It is the key equipment for realizing straight threaded connection of reinforced steel bar.
The steel bar rolling thread connection technology is suitable for industrial and civil buildings. Its process is simple and fast,
no open flame operation, no pollution to the environment, no explosion fire hazards, safe and reliable, and can be constructed
around the clock, saving a lot of steel and energy. Only a spanner is used to connect the steel bars, and each steel bar joint is
about one minute, which shortens the construction period and realizes industrialized and civilized construction.
Features
Main features and advantages：
1. Rib stripping and rolling thread can be processed in one clamping.Full processing tooth shape, high dimensional accuracy.
2. Machinable positive and negative thread.
3. The machine is simple to operate, compact in structure, reliable in operation, and has a unique automatic cutter opening and
closing mechanism.
4. The strength of the wire head is higher than the strength of the base material without cutting the base material of the
reinforcing bar.
5. Wide application range, can process ribbed steel bars with diameter of 16 - 40.
Specification
|
Model
|
YG-40E
|
|
Processing range
|
16-40mm
|
|
Motor power
|
5.5kw
|
|
Voltage
|
380v 50hz three phase
|
|
Rotating speed
|
40-62r/min
|
|
Max threading length
|
100mm
|
|
Threading degree
|
75°/60°
|
|
Thread pitch
|
2.5mm/3mm
|
|
Working efficiency
|
30-40mm/min
|
|
Dimension
|
1500*600*1000mm
|
|
weight
|
450kg
|
Products Display and Details
Packing & Delivery
1. Packaging:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
