Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LTMG
-
Dimension(L*W*H):
-
8000*2100*1650 mm
-
Weight (KG):
-
3200 kg
-
Max Grade ability:
-
30%
-
Function:
-
baggage belt loader
-
Ground Clearance:
-
145 mm
-
Belt Width:
-
700mm
-
Conveying speed:
-
0.2-0.5 m/s
-
Boom Length:
-
8000mm
Quick Details
-
Power:
-
90W
-
Warranty:
-
1 Year
-
Width or Diameter:
-
2900mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LTMG
-
Dimension(L*W*H):
-
8000*2100*1650 mm
-
Weight (KG):
-
3200 kg
-
Max Grade ability:
-
30%
-
Function:
-
baggage belt loader
-
Ground Clearance:
-
145 mm
-
Belt Width:
-
700mm
-
Conveying speed:
-
0.2-0.5 m/s
-
Boom Length:
-
8000mm
Product Features

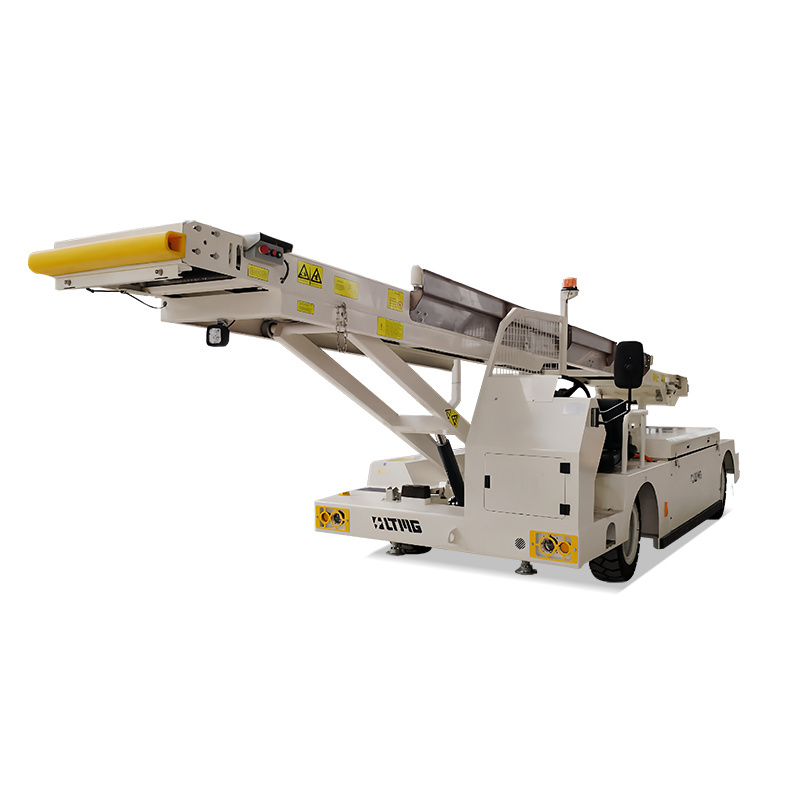

The model is the universal type that is suitable for the aircraft cargo and luggage service in the airports. The configuration adopts the mature vehicle parts from technology of both China and western countries. The belt loader is reliable in performance and easily for operation and maintenance.
The front drive roller is PU rubber packed in diameter of 210 mm, which provides adequate friction and have long service life.
The rear end is belt tension assembly with 160 mm adjusting range for forward and back, which makes the conveyor belt easily disassembled and maintained.
The load rollers are in thickness of 2mm. The distance between both front and rear ends are 700mm which can prevent luggage not being crashed during transportation. The middle distance is 180mm which makes it is easily for maintenance.
Front Axle type use steering axle with hydraulic disc brake, single-side double clamp twin cylinder brake.Rear Axle type use Driving axle with drum type walking brake and parking brake, with 3Ton pay load.
|
Overall Dimension
|
8000×2100×1650 mm
|
|
Min. Turning Radius
|
6500mm
|
|
Wheel base
|
2900mm
|
|
Front Wheel tread
|
1725mm
|
|
Rear Wheel tread
|
1695mm
|
|
Max Grade ability (°)
|
30
|
|
Ground Clearance
|
145 mm
|
|
Shipping Weight
|
3200 kg
|
|
Belt Width
|
700 mm
|
|
Boom Length
|
8000 mm
|
|
Conveying speed
|
0.2-0.5 m/s
|
|
Max distribution load of conveyor belt
|
135 Kg/m
|
|
Work height range of front end
|
1200-4350 mm
|
|
Height range of rear conveyor end
|
1600-450mm
|
|
Max Inclination angle
|
29°
|
