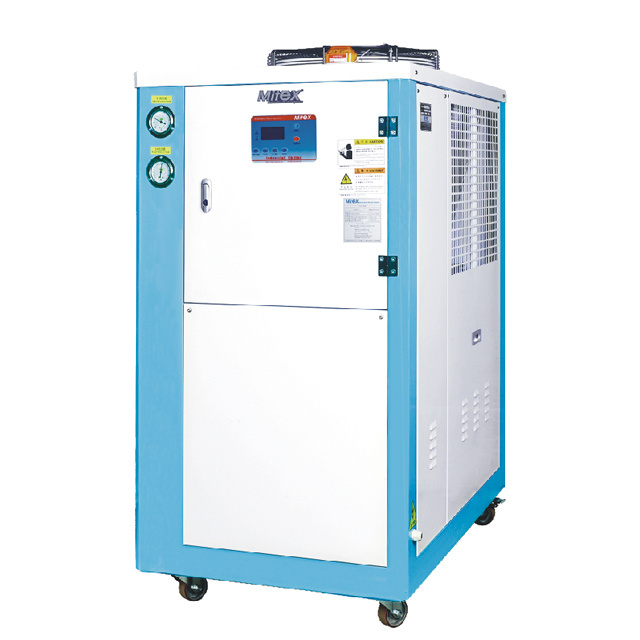

5HP Chiller Industrial Cooling Air Cooled Chiller Brand Prices

FOB Reference Price: Get Latest Price

≥1 Sets

US $2500

≥20 Sets

US $2000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V 3PH 50HZ/Customized

Dimension(L*W*H):: 1450*765*1500mm

Weight:: 180 KG

Power:: 3750

Working Temperature Range:: 5℃~25℃

Freezing Capacity:: 15.6KW

Compressor type:: Scroll Closed

Compressor power:: 3.75kw

Refrigerant Weight:: 2.5KG

Refrigerant Type:: R22/R407c /customized

Evaporator type:: Tube-in-shell

Condenser Type:: Fin style

Color:: Blue + White

Certification:: CE

Quick Details

Condition:: New

Place of Origin:: Guangdong, China

Brand Name:: Mitex

Voltage:: 380V 3PH 50HZ/Customized

Dimension(L*W*H):: 1450*765*1500mm

Weight:: 180 KG

Power:: 3750

Working Temperature Range:: 5℃~25℃

Freezing Capacity:: 15.6KW

Compressor type:: Scroll Closed

Compressor power:: 3.75kw

Refrigerant Weight:: 2.5KG

Refrigerant Type:: R22/R407c /customized

Evaporator type:: Tube-in-shell

Condenser Type:: Fin style

Color:: Blue + White

Certification:: CE

Product Description

MIC-40A

MIC-5A~30A

Equipment

1.The chiller is deployed with P.I.D microcomputer controller, it can control the temperature between +5℃ and +25℃ exactly.

2.All electric parts are "Schneider" "Siemens" and "OMRON" brand etc.

3.Compressor is used "COPELAND" brand which is made in USA "Danfoss" brand from Denmark or "Panasonic" brand which is made in Japan also newly imported license together with the chiller.

4.High efficiency cooler and evaporator are passed ISO9002 certification, and also able to save more than 30%of electricity.

5.Complete with safety protection and error indication system, so it is convenience for operation and maintenance.

6.The copper tube is used the product of oxygen free welding method for reducing impurities in the interior portion of the tube and increasing the efficiency also the lifetime of compressor.

Stainless steel water tank

Fin type condenser , tube in shell evaporator

Panasonic brand compressor

Minamoto brand water pump

Electrics

Details Images

Product Paramenters

Model		5A	10A	15A	20A	25A	30A
Freezing capacity	KW	15.6	31.2	46.8	7862.4	93.6	93.6
		Kcal/hr	13416	26832	40248	53664	67080	80496
		Btu/hr	532354	106469	159704	212938	266173	319408
Compressor	power (KW)	3.95	2 x 3.95	2 x 6.3	2 x 7.95	2 x 9.1	3 x 7.95
Refrigerant	Weight KW	2.5	2 x 2.5	2 x 5.5	2 x 6.0	2 x 7.5	3 x 6.0
		Control mode	Thermostatic expansion valve
		type	R22/ R407C (customized)
Evaporator	Type	Tube in shell
Condenser	Type	Fin style
Condenser		Fan (KW)	0.38	2 x 0.38	2 x 0.78	2 x 0.78	2 x 0.78	3 x 0.78
Water tank	L	62	79	150	175	175	220
Pump	Power (KW)	0.75	1.5	1.5	2.2	3	4
		Flow rate (L/min)	75	120	208	330	330	550
		Pressure (kg/cm2)	2	2	2	2	2	2
Pipe Coupling	Chillerd water outlet (inch)	1	1.5	2	2	2	2.5
		Chilled water inlet (inch)	1	1.5	2	2	2	2.5
		Water supply port (inch)	0.5	0.5	1	1	1	1
		Over flow port of water tank (inch)	0.5	0.5	0.5	0.5	0.5	0.5
		Drainage port of water tank (inch)	0.5	0.5	1	1	1	1
Protective device	Compressor	Overload relay
		Pump	Overload relay
		Refrigerant circuit	HIgh and low pressure switches
		Cooling water circuit	Water level switch / water flow switch (for option)/ by-pass valve (for option)
Power specification			380v, 3 phase , 50hz (can be customized )
Measures exchange			1KW=860kcal/hr 1RT=3024 kcal/hr 10000 btu/hr= 2520 Kcal/hr
Dimension	LXWXH MM	1450x765x1500	1750x765x1500	2150x1005x1700	2150x1005x1700	2550x1005x1700	3150x1005x1800
