Quick Details
-
Dimension(L*W*H):
-
according the model
-
Weight:
-
10000 KG
-
Marketing Type:
-
hot sale 2013
-
Name:
-
jaw crusher fixed jaw
-
The Machines classification:
-
jaw crusher
-
Color:
-
Iron Grey
-
Installation:
-
Under Technical Guidance
-
Max feeding size:
-
200-1020mm
-
Spare parts supply:
-
Lifelong Provide
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
After-sale service:
-
Problems Within 48 Hours
-
Quality:
-
Advanced Technology
Quick Details
-
Application:
-
stone , ore
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SBM
-
Dimension(L*W*H):
-
according the model
-
Weight:
-
10000 KG
-
Marketing Type:
-
hot sale 2013
-
Name:
-
jaw crusher fixed jaw
-
The Machines classification:
-
jaw crusher
-
Color:
-
Iron Grey
-
Installation:
-
Under Technical Guidance
-
Max feeding size:
-
200-1020mm
-
Spare parts supply:
-
Lifelong Provide
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
After-sale service:
-
Problems Within 48 Hours
-
Quality:
-
Advanced Technology

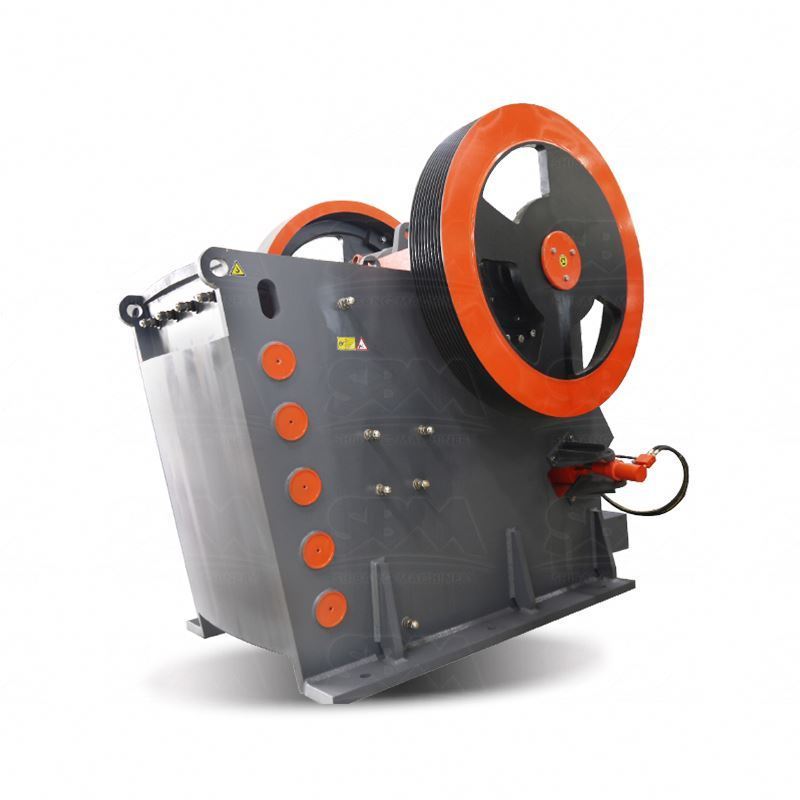

Long Serving Life Crushing Plant Aggregates Quarrying Jaw Crusher Fixed Jaw
Input Size: 0-930mm
Capacity: 12-650TPH
Material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore
Long Serving Life Crushing Plant Aggregates Quarrying Jaw Crusher Fixed Jaw is a new crushing machine developed by SBM, the jaw crusher manufacturer, after the release of traditional jaw crusher. This jaw crusher is a perfect combination of modern science and technology and the production practice, which can better satisfy the automatic production demands of vast customers.
Long Serving Life Crushing Plant Aggregates Quarrying Jaw Crusher Fixed Jaw Working Principle
Firstly, the motor drives belt and pulley to make the movable jaw move back and forth, up and down around the eccentric shaft. When the movable jaw pushes the movable jaw plate towards the fixed jaw plate, materials get crushed. When movable jaw and plate move backwards under the action of the eccentric shaft and spring, the materials crushed before would be discharged from the port under the jaw plate. As the motor works continuously, the movable jaw can crush or discharge materials periodically, so that volume production can be achieved.
Long Serving Life Crushing Plant Aggregates Quarrying Jaw Crusher Fixed Jaw ---Parameters:
| Jaw crusher Model | Feed Opening (mm) | Max Feeding (mm) | Discharge Opening (mm) | Capacity (t/h) | REV (r/min) | Power (kw) | Motor Model | Machine Size (mm) |
| PEW250×1000 | 250×1000 | 220 | 20-40 | 15-50 | 330 | 6-37 | Y250M-6/37 | 1400×1850×1310 |
| PEW250×1200 | 250×1200 | 220 | 20-40 | 20-50 | 330 | 6-37 | Y250M-6/37 | 1400×2050×1310 |
| PEW400×600 | 400×600 | 350 | 35-85 | 15-70 | 250 | 6-37 | Y250M-6/37 | 1920×1460×1840 |
| PEW760 | 760×1100 | 620 | 75-200 | 150-350 | 270 | 6-110 | Y315L1-6/110 | 2600×2500×2200 |
| PEW860 | 860×1100 | 720 | 100-225 | 200-500 | 240 | 6-132 | Y315L2-6/132 | 3300×2320×3120 |
| PEW1100 | 1100×1200 | 930 | 150-275 | 300-650 | 210 | 8-185 | Y355L1-8/185 | 4140×2660×3560 |
The line design of 40-60 t/h - Small stone crushing line is simple for our sales manager with so many quarry customers/ clients.
The crushing line can be widely used in mine ore mining, construction buiding materials, chemistry industry, suitable for crushing quarry rocks and mineral ores such as iron ore, river stone, feldspar, basalt, dolomite, barite, limestone, slag, marble, quartz, granite, cement, clinker, coal and so on. Stone crusher machines are featured with large crushing rate, high yield, equal product size, simple structure, reliable operation and easy maintenance, economic operating costs etc.
Here is a sample of 40-60 t/h - Small stone crushing line for limestone crushing process.
List of all typical equipment and products
| NO. | Equipment | Model | Motor(KW) | Number |
| I | Hopper | LC3000X4000 | 1 | |
| II | Vibrating Feeder | GZD-300×90 | 2.2 * 2 | 1 |
| III | Jaw Crusher | PE-500×750 | 55 | 1 |
| IV | Impact Crusher | PF-1010 | 55 | 1 |
| V | Vibrating Screen | 3YA1860 | 22 | 1 |
| VI | Belt Conveyor | 800mm | 5 | |
| VII | Packaging Machine | PM60 | 30 | 1 |
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
