Quick Details
-
Control System Brand:
-
Ruida controller
-
Cutting Area:
-
1600*1000mm
-
Cutting Thickness:
-
5mm fabric
-
Control Software:
-
RDWorks V8 (Ruida)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Transon
-
Weight (KG):
-
130 KG
-
Color:
-
Red Black
-
Laser Fabric Cutting Machine Usage:
-
Non-metal Cutting, Especially Fabric, Leather
-
Laser Power:
-
100w Reci Brand Laser Tube
-
Auto Feeding System::
-
Includ Auto Feed Worktable
-
Control System::
-
RUIDA USB control system
-
Air Assist:
-
Air Compressor
-
Exhaust System::
-
Exhaust Fan And Pipe
-
Leaser Head:
-
standard one, optional two head
-
Machine Size:
-
2060*1410*1140mm
-
Package Size:
-
2340*2080*1350mm
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-70000mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Ruida controller
-
Cutting Area:
-
1600*1000mm
-
Cutting Thickness:
-
5mm fabric
-
Control Software:
-
RDWorks V8 (Ruida)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Transon
-
Weight (KG):
-
130 KG
-
Color:
-
Red Black
-
Laser Fabric Cutting Machine Usage:
-
Non-metal Cutting, Especially Fabric, Leather
-
Laser Power:
-
100w Reci Brand Laser Tube
-
Auto Feeding System::
-
Includ Auto Feed Worktable
-
Control System::
-
RUIDA USB control system
-
Air Assist:
-
Air Compressor
-
Exhaust System::
-
Exhaust Fan And Pipe
-
Leaser Head:
-
standard one, optional two head
-
Machine Size:
-
2060*1410*1140mm
-
Package Size:
-
2340*2080*1350mm

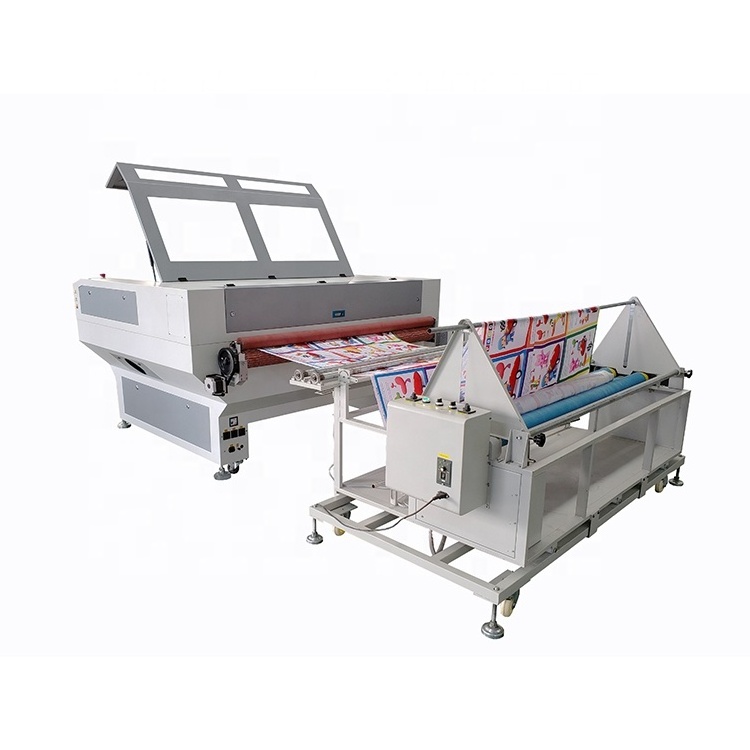

Easy To Operate Automatic Feeding Textiles Shirt Fabric Laser Fabric Cutting Machine
Machine feature
|
Model |
TSF1610 |
|
Working area |
1000mm*1600mm / 39.37in*62.99in (L*W) |
|
Heads |
Standard one, optional two or four |
|
Laser power |
Reci W2 90W-100W+ CW3000 water chiller |
|
Laser type |
CO2 sealed laser tube, water-cooled |
|
Worktable |
Standard with auto feeding worktable |
|
Engraving speed |
0-70000mm/min |
|
Cutting speed |
0-40000mm/min |
|
Highest scanning precision |
2500DPI |
|
Power supply |
220v/50Hz , 110v/60Hz |
|
Min. shaping character |
English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm |
|
Graphic.format.supported |
BMP, PLT, DST, DXF, AI |
|
Software supported |
CorelDraw, PhotoShop, AutoCAD,TAJIMA |
|
Control system |
High speed DSP control system brand Ruida or Leetro |
|
Machine work software |
RDWorks V8 (Ruida) |
|
Laser output control |
1-100% by setting in the software |
|
Interface |
USB |
|
Color separation |
Yes |
|
Optional part |
Red dot pointer |
|
Spare parts |
Extra laser tube/Extra 1 lens and 3 mirrors |
|
Suitable for |
Roll materail like cloth, fabric, leather and etc. |
1,100w Reci brand laser tube, able to do both engraving and cutting on most non-metals, such as fabric, leather, cloth, jeans, wood, acrylic, mdf, rubber, foam, etc.But for this model with auto feeding worktable, we suggest only for light material like fabric, leather, paper. Not suggest for heavy material in case damage the worktable.
2. Auto feeding system, feeds roll materials automatically to the machine table, saving work force and convenient.
Guarantee and after-sale service
1.One year guarantee for whole machine except of laser tube and lens
2.24 hours technical support by e-mail, calling or door-to-door service
3.English software, user manual and detailed Videos CD
Applicable Materials
Cloth,fabric,leather,woolen,paper,embroider,wood,acrylic,organic glass, rubber, plastic, compound material and other non-metal materials,etc
