This processing line is developed and manufactured on the basis of the international advanced extrusion technology, which is Premium quality 2020 new design commercial multifunctional full automatic mini price making india corn flakes machine. Its technology performance and quality can reach international advanced level. Premium quality 2020 new design commercial multifunctional full automatic mini price making india corn flakes machine can produce breakfast cereal which is one of
nutritional convenient food which is produced by this process line,using grist as basic material,with different shapes,such as ,granule,flake,animal,etc.One outstanding characteristic of the breakfast cereal is that it contains abundant compound carbahydrates and dietary fibre,strengthens lots of microelements,such as vitamin and mineral,and also can be added with cocoa and sugar,like honey and maltose.it can be drunk directly after mixed into coffee,milk,yoghourt or functional drink .Children can eat breakfast cereal as sweet crispy snack.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
120KW
-
Weight:
-
2000 KG
-
Dimension(L*W*H):
-
21000*1500*2200MM
-
Name:
-
CORN FLAKES MAKING MACHINE
-
After-sales Service Provided:
-
Online Support
-
Application:
-
Food Processing Machine
-
Usage:
-
Sancks
-
Type:
-
Fully Automatic
-
Keywords:
-
Snack Making Machine
-
Model:
-
LY-65/LY-70
-
Color:
-
Stainless Steel Color
-
Shape:
-
Round Head
-
Suitable for:
-
Factory
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LY
-
Voltage:
-
380V
-
Power:
-
120KW
-
Weight:
-
2000 KG
-
Dimension(L*W*H):
-
21000*1500*2200MM
-
Name:
-
CORN FLAKES MAKING MACHINE
-
After-sales Service Provided:
-
Online Support
-
Application:
-
Food Processing Machine
-
Usage:
-
Sancks
-
Type:
-
Fully Automatic
-
Keywords:
-
Snack Making Machine
-
Model:
-
LY-65/LY-70
-
Color:
-
Stainless Steel Color
-
Shape:
-
Round Head
-
Suitable for:
-
Factory
Factory processing corn flake breakfast cereal making manufacturing machinery
Product Description
Factory processing corn flake breakfast cereal making manufacturing machinery
|
Model
|
installed power
|
power consumption
|
production capacity
|
size
|
|
LY65
|
130KW
|
90KW
|
100-150KG/H
|
39000*1300*2500MM
|
|
LY70/75
|
160KW
|
120KW
|
200-260KG/H
|
41000*1500*2500MM
|
|
LY85
|
190KW
|
140KW
|
300-500KG/H
|
43000*3500*4300MM
|
Product Details
mixer flour
Output:30-40kg 70-80kg 170-180kg
Main Power:4.0kw 7.5kw 15kw
Tank Size: φ600 x500mm
Dimention:1000*800*1200mm
Flour Mixer is used to mix the raw
Material, like corn flour , rice flour, fish bone flour with liquid and other additives.
Main Power:4.0kw 7.5kw 15kw
Tank Size: φ600 x500mm
Dimention:1000*800*1200mm
Flour Mixer is used to mix the raw
Material, like corn flour , rice flour, fish bone flour with liquid and other additives.
Screw conveyor
Driving Power: 0.75kw Dimension: 2700×500×2400mm
Screw Conveyor is used to convey the materials to the feeder of the extruder.
Stainless steel structure, especially the parts in contacting with the raw material or products; The materials is conveyed in a
sealed stainless steel roller to the feeding hopper of extruder without leaking, dust pollution; Equipped with vibrating sifter to
feed the materials stably and evenly; Easy cleaning and operation; run stably.
Screw Conveyor is used to convey the materials to the feeder of the extruder.
Stainless steel structure, especially the parts in contacting with the raw material or products; The materials is conveyed in a
sealed stainless steel roller to the feeding hopper of extruder without leaking, dust pollution; Equipped with vibrating sifter to
feed the materials stably and evenly; Easy cleaning and operation; run stably.
Corn flakes press machine
Material:
- Stainless Steel
Function:
- Pressing Extruded pellets into flakes Separate Controller Box
1.it with big roller to press
2.it with cooling system
2.it with cooling system
3.it can adjust the roller distance to adjust the flakes thickness
Power:
16.12 kw
Size:
1550*1300*2000mm,
Roller:
510* 310*1050mm

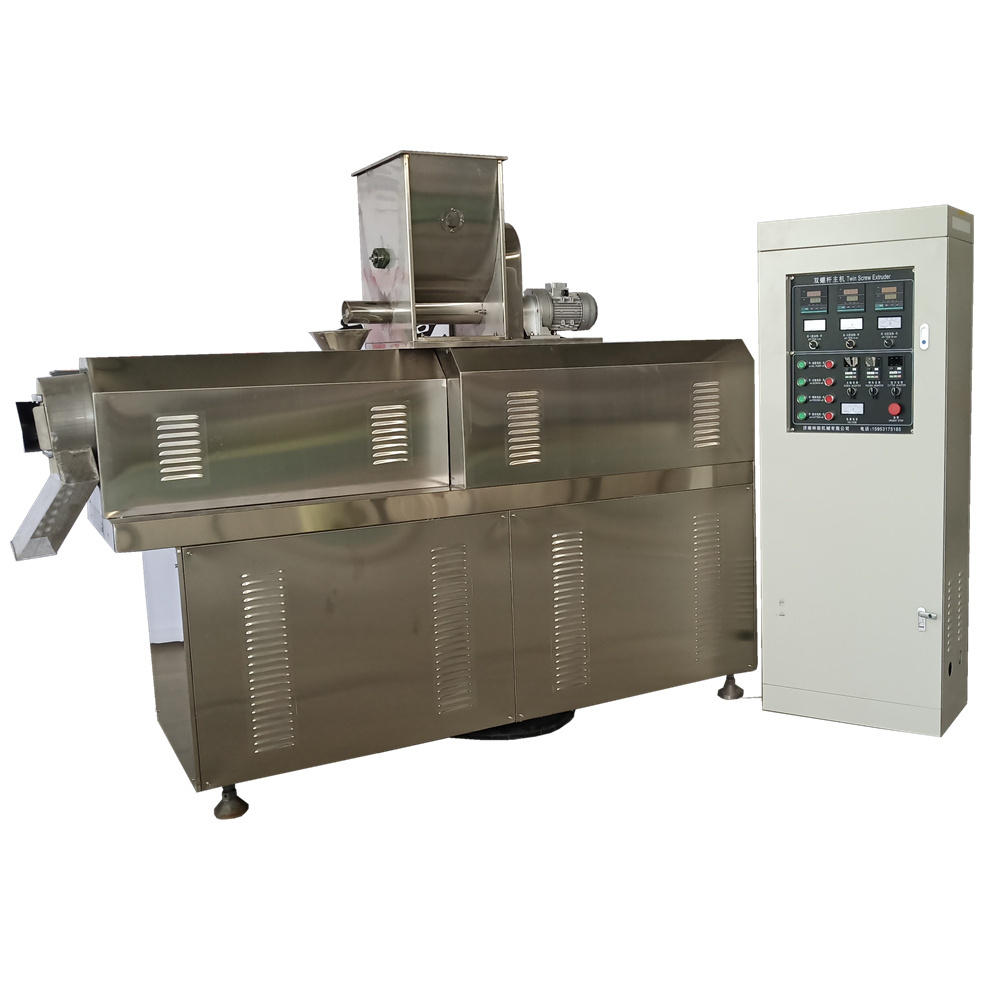

Double screw extruder machine
Feeding System: Feeding power: 0.75kw
Feeding screw diameter:55mm
Driving& Extruding System:
Main Motor Power: 22kw
Main Screw Length:1050mm
Main Screw Diameter:65mm
Main Screw Speed:0-250rpm
Heating Zone: 3 zone
Heating Power: 2kw x 5 =10kw (5 heating rings)
Feeding screw diameter:55mm
Driving& Extruding System:
Main Motor Power: 22kw
Main Screw Length:1050mm
Main Screw Diameter:65mm
Main Screw Speed:0-250rpm
Heating Zone: 3 zone
Heating Power: 2kw x 5 =10kw (5 heating rings)
dryer machine
Three-Layer Roaster is used to dry a wide range of products, such as dog snacks, corn flakes, core filling
food, etc.
Five layer structure can prolong the drying time and reduce the coverage area;Each layer is made of mesh belt withstainless steel;Side guard to prevent products falling from the belt;Various speed inverter drives for five layers;
food, etc.
Five layer structure can prolong the drying time and reduce the coverage area;Each layer is made of mesh belt withstainless steel;Side guard to prevent products falling from the belt;Various speed inverter drives for five layers;
Sugar Spraying System
Technical Parameter:
Total Power: 28.75KW
Dimension: 4000×1900×1880mm
Roller Size: about Ø600 x 2700mm
Function: This machine consists of conveyor, melting tank and temperature keeping roller, and it is used to spray sugar on the
surface of the corn flakes.
Total Power: 28.75KW
Dimension: 4000×1900×1880mm
Roller Size: about Ø600 x 2700mm
Function: This machine consists of conveyor, melting tank and temperature keeping roller, and it is used to spray sugar on the
surface of the corn flakes.
Packing & Delivery
Packing: Simple packing stretch film (Based on the customers' need adopt the wooden case or wooden pellets, etc.)
Transportation: According to the contract, our company could in charge for the shipment or you prepaid. We will choose the most timely and safe way transportation.
Transportation: According to the contract, our company could in charge for the shipment or you prepaid. We will choose the most timely and safe way transportation.
