Quick Details
-
Available Core Cross-Section Range:
-
0.1-4.5mm2(AWG11-AWG32)
-
Dispaly:
-
LCD dispaly interface with Chinese and English language
-
production:
-
3000~8000pcs/hour
-
Power:
-
200W
-
Voltage:
-
220V/60Hz 110V/50Hz
-
Weight:
-
30KG
-
Dimension:
-
390*350*255mm
Quick Details
-
Usage:
-
Stripping
-
Place of Origin:
-
China
-
Type:
-
Automatic Stripping Machine for thick wire
-
Available Core Cross-Section Range:
-
0.1-4.5mm2(AWG11-AWG32)
-
Dispaly:
-
LCD dispaly interface with Chinese and English language
-
production:
-
3000~8000pcs/hour
-
Power:
-
200W
-
Voltage:
-
220V/60Hz 110V/50Hz
-
Weight:
-
30KG
-
Dimension:
-
390*350*255mm

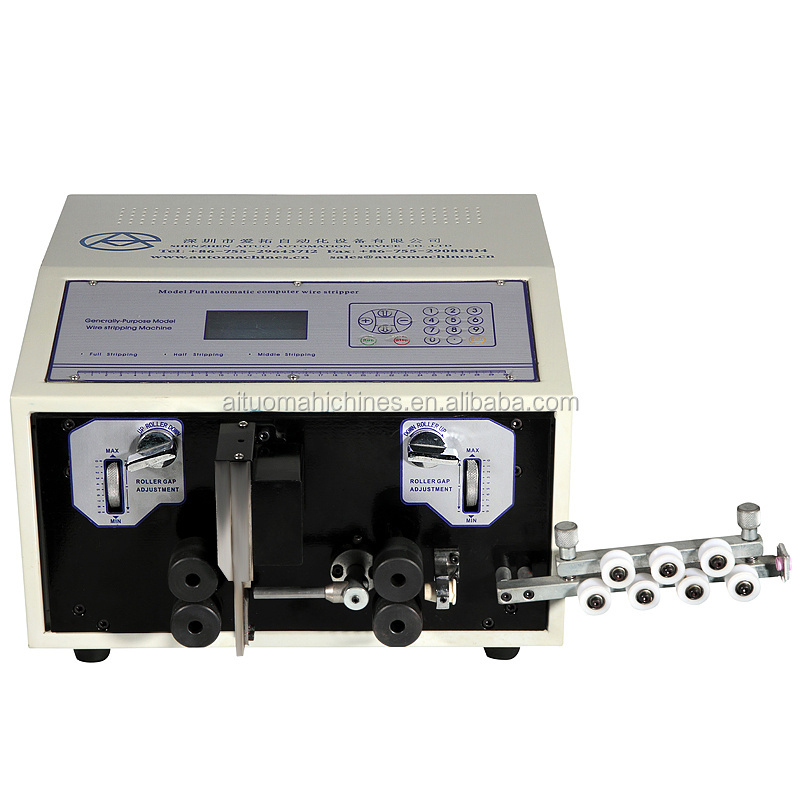

Automatic wire cutting and stripping machine AM602
Features:
1.Automatic wire cutting and stripping machine,
you only need to set the stripping length, cutting length, total amount etc. then it will strip & cut your wires full automatically
.
2.Cable cutting and stripping machine for
0.1 - 4.5mm
2
3. Highly efficient,
3000 - 8000pcs/hour
4.The standard Cable making machine
Working video:
https://www.youtube.com/watch?v=3QUAcO_BnAQ
Specifications:
|
AM602 |
Available Core Cross-Section Range |
0.1 - 4.5mm2 (AWG12 - AWG32) |
|
|
Max. Conduit Diameter |
φ4.5mm |
||
|
Available Wire Size |
0.1 - 4.5mm2 (AWG12 - AWG32) |
||
|
Conduit Diameter |
Φ4.5mm |
||
|
Cutting Length |
5 - 9999mm |
||
|
Stripping Length |
Head 0 - 35mm, Tail 0 - 15mm |
||
|
Memory Function |
Can store Max. 99 group programs |
||
|
Max. Middle Stripping Section |
11 |
||
|
Cutting Tolerance |
±(0.002×L) (L = Cutting Length) |
||
|
Speed: |
3000 - 8000pcs/hour |
||
|
Display pad |
LCD display with english menu |
||
|
Drive Mode |
four wheels drive |
||
|
Blade Material: |
Hard tungsten steel |
||
|
Appropriate Wire |
Suit wires like PVC,glass wires etc. |
||
|
Power Supply |
220V/50Hz 110V/60Hz |
||
|
Power Rating |
180W |
||
Other Cutting and Stripping Models:
AM603-J8 FOR 0.1-8.0mm 2 AM603-70 FOR 4-70mm 2
Lead time(EX-WORK) : Small machines 5~7 working days after payment received, Large machines 10~15 working days.
One year warranty and wholelife maintenance!
CE, CCC, RoHS certified.
--------------------------------------------------------------------------------------------------------------------------------------------------------------
----Purchase Guidance
If not sure which one is your best choice within the budget, please provide the details or samples to us. We will provide the best solutions and machines.
----After Sale Services
Aituo Automation Device Co., ltd provides life long support after sale including operation guidance, parts repalcement and maintainance support. Just feel free to contact us.
----Technology counsultion
Any question about wires, cables, machinery, even the production line please feel free to contact us. We can provide reasonable budget and suggestions.
----OEM Services
We provide OEM services, customary packing, and specified packing.
