CNC Clamp Spring Making Machine CNC Wire Rotating Spring Forming Machine

CNC Clamp Spring Making Machine CNC Wire Rotating Spring Forming Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $42000

≥5 Sets

US $41600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Usage:: Clamp

Weight:: 2500kg

Dimension:: 1650*1350*1800mm

Color:: Grey and red

Wire diameter:: 0.8-4.0mm

Capacity:: 30pcs/min

Voltage:: 380V with a transformer

Quick Details

Place of Origin:: China

After-sales Service Provided:: Engineers available to service machinery overseas, Online support, Field installation, commissioning and training, Video technical support

Name:: spring forming machine

Usage:: Clamp

Weight:: 2500kg

Dimension:: 1650*1350*1800mm

Color:: Grey and red

Wire diameter:: 0.8-4.0mm

Capacity:: 30pcs/min

Voltage:: 380V with a transformer

Product Description

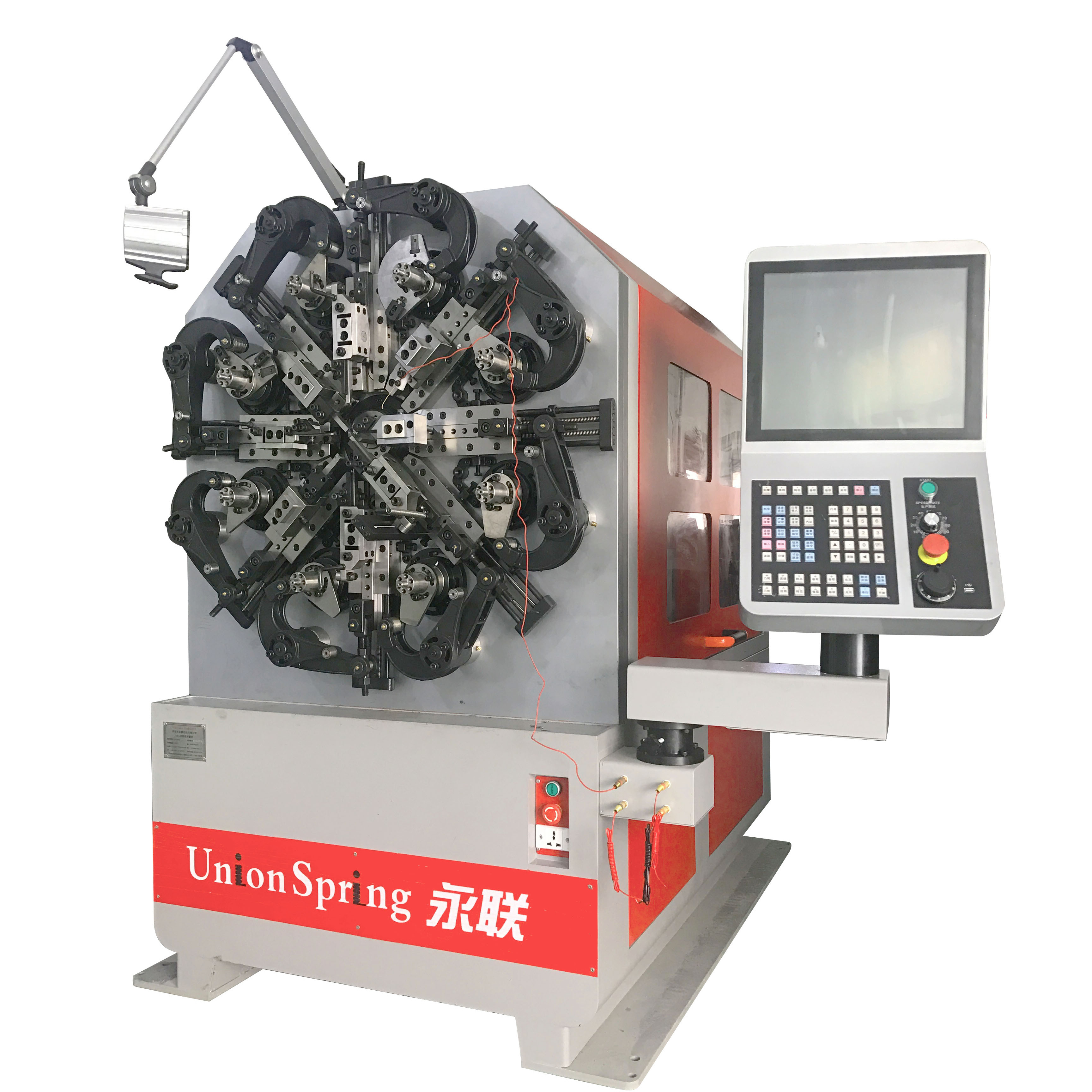

4-Axis /5 Axis Wire Rotary Spring Machin e

Model	US-540R
Axis	4/5
Wire Diameter	0.8-4.0mm
Wire Wheel Sets	3sets
Cam Axis	4.5KW
Wire Feeding Axis	4.5KW
Rotary Quill Axis	0.4KW
Rotary Wire Axis	2.7KW
Spinner Axis	1KW
Machine Axis	165017001900mm ³
Machine Weight	2100kg

Machine description:

1. Wire rotary machine adopts Taiwan computer control system and Japanese servomotor, which has the characteristics of easy operation, high speed and high precision. 2. The five axis are cam axis, wire feeding axis, rotary wire axis, rotary quill axis, and spinner axis(optional accessory). The five axis can be operated synchronously. The position of each axis, the length of the wire feed, the production speed, and the number of production can be displayed on the screen. It is very easy to edit and modify the program data online. 3. The cam part has eight sets of slides, crank arm and CAM rotating axis. The wire feeding system is installed horizontally behind the machine. The wire rotary axis can control the rotation of wire, making the speed of high-difficulty special-shaped spring adjustment easier and faster.The rotating quill axis can be rotated positively or negatively, and the spinner device is installed on the slide. 4, The wire rotary spring machine can be applied to the production of lighting, electronics, toys, home appliances, sports equipment, automobile and other industries need precision spring.

Detailed Images

1、Automatic wire decoiler

The automatic wire feeder can adjustment of wire feeding speed, automatic alarm shutdown, and novel appearance.

2、Transformer

Transformer can be used for direct voltage conversion in different countries, the standard is 220V to 380V. Customized

3、Wire feeder box

The wire feeding box adopts an integrated precision casting structure, and the wire feeding precision is high.

4、Machine panel

The eight slides work together, the assembly precision of the parts is high, and the machine runs for a long time.

5、Sanyo motor

Japan imported Sanyo Electric Features: high precision motor, good stability, maintenance free, long use time

Packing&Shipping

After Sales Service

" Professional, quality, service, innovation " is our purpose, the company is committed to improve efficiency for customers and create value.

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Company Introduction

UNION SPRING is a high-tech enterprise specializing in R&D, design, manufacture and sales of CNC spring machine, has nearly 20 years spring machine manufacturing experience.

Our Services

Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory.

Mainly engaged in 2D/3D wire bending machine, camless spring machine, wire rotary spring machine, spring forming machine, high speed coiling machine, screw machine, wire decoiler, tempering furnace etc., is widely used in compression spring, tension springs, torsion springs and wire forming products, can meet the production needs of many industries, including automobiles, kitchen utensils, sanitary ware, carts, supermarket shelves, sports equipment, crafts, lighting, electronics, toys, home appliances and other industries.

FAQ

Q1: How long you can delivery ?
About 30 days after we received the deposit (30%T/T in advance ,70% T/T before shipment )

Q2: How about your equipment quality?
We guarantee that all equipment are CE&ISO standard and one year warranty, We invite you to visit our factory and inspect the equipment before packing

Q3: How is the service that your equipment beyond the warranty period?
Your project salesman and engineer will mail or telephone visit to you at regular intervals after sales, and will provide
equipment’s lifelong service.
