Quick Details
-
Model Number:
-

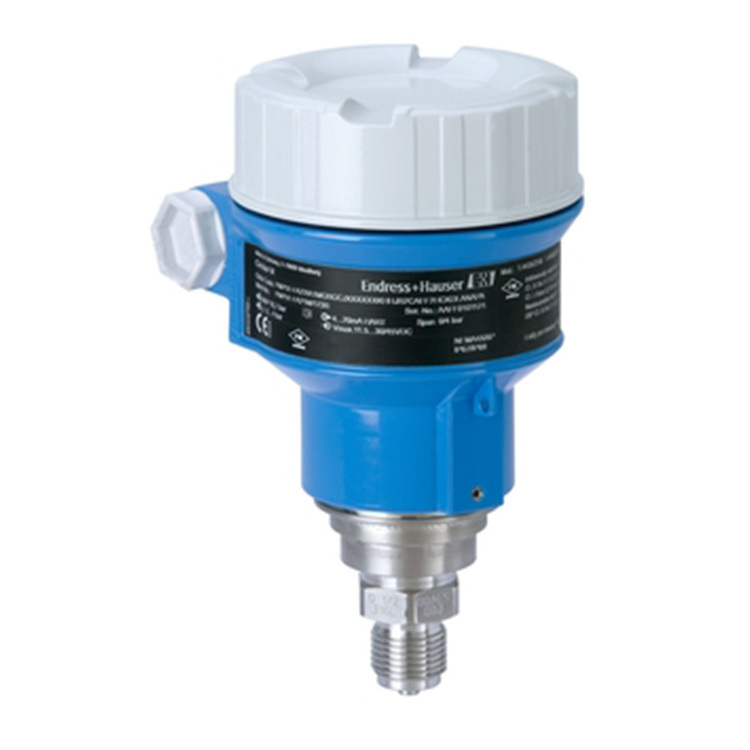

PMP51
-
Product Name:
-
Pressure Transmitter
-
Keywords:
-
Absolute and gauge Pressure Transmitter
-
Process Connection:
-
Thread
-
Main wetted parts:
-
316L
-
Process temperature:
-
-40°C...130°C
-
Accuracy:
-
0.1% or 0.075%
-
Output signal:
-
4-20mA
-
Max. Turn down:
-
20:1
-
Measuring range:
-
400mbar...400bar
-
Safety approvals:
-
SIL
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Germany
-
Brand Name:
-
Endress+Hauser
-
Model Number:
-
PMP51
-
Product Name:
-
Pressure Transmitter
-
Keywords:
-
Absolute and gauge Pressure Transmitter
-
Process Connection:
-
Thread
-
Main wetted parts:
-
316L
-
Process temperature:
-
-40°C...130°C
-
Accuracy:
-
0.1% or 0.075%
-
Output signal:
-
4-20mA
-
Max. Turn down:
-
20:1
-
Measuring range:
-
400mbar...400bar
-
Safety approvals:
-
SIL
Products Description
|
Model Number
|
PMP51
|
|
Measuring principle
|
Absolute and gauge pressure
|
|
Characteristic
|
Smart and reliable pressure transmitter, with piezoresistive measuring cell
and metal welded process isolating diaphragm |
|
Supply voltage
|
4...20mA HART
11,5...45V DC (Non Ex): Ex ia: 11,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex) |
|
Reference Accuracy
|
Standard 0.1%
Platinum 0.075% |
|
Long term stability
|
0.1% of URL/year
0.2% of URL/ 5 years 0.25% of URL/ 10 years |
|
Process temperature
|
-40°C...+130°C
(-40°F...+266°F +150°C for 1h (+302°F for 1h) |
|
Ambient temperature
|
-40°C...+85°C
(-40°F...+185°F) |
|
Measuring cell
|
400mbar...400bar
(15psi...6000psi) relative/ absolute |
|
Smallest calibratable span
|
20 mbar (0.3 psi)
|
|
Vacuum resistance
|
10 mbar (0.15 psi)
|
|
Max. Turn down
|
20:1
|
|
Max. overpressure limit
|
600bar (9000psi)
|
|
Process connection
|
Thread:
G1/2...G2, MNPT1/2...MNPT2 Flange: DN25...DN80, ASME 1 1/2"...4", |
|
Material process membrane
|
316L, AlloyC,
Rhodium>Gold |
|
Process connection hygienic
|
Tri-Clamp
DIN11851 NEUMO Varivent N SMS DRD |
|
Material gasket
|
None, measuring cell welded
|
|
Fill fluid
|
Silicone oil,
Inert oil |
|
Material housing
|
Die-cast aluminum,
AISI 316L |
|
Communication
|
4...20 mA
4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus IO-Link |
|
Certificates / Approvals
|
ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, UK Ex
|
|
Safety approvals
|
SIL
|
|
Design approvals
|
EN10204-3.1
NACE MR0175 |
|
Drinking water approvals
|
NSF
|
|
Marine approvals
|
GL/ ABS/ LR/ BV/ DNV
|
|
Successor
|
PMP51B
|
