Quick Details
-
Walkie Talkie Type:
-
analog radio
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Puxing ham radio transceiver
-
Model Number:
-
PX-578S ham radio transceiver
-
Dimensions:
-
110x50x35MM
-
Frequency Range:
-
136-174/400-470/446/245MHZ
-
Product Name:
-
long range portable cheap analog marine hf radio transceiver
-
color:
-
black
-
weight:
-
238g(including battery)
-
Battery:
-
1300/1600mAh
-
Output Power:
-
4W/5W
-
Operating Voltage:
-
7.4V DC
-
Certificate:
-
FCC,CE
-
Warranty:
-
12 Months
-
VOX:
-
support
-
frequency range:
-
136-174,400-470MHz
Quick Details
-
Talk Range:
-
5-10KM
-
Terminal style:
-
Handheld
-
Storage Channel:
-
128 Channels
-
Walkie Talkie Type:
-
analog radio
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Puxing ham radio transceiver
-
Model Number:
-
PX-578S ham radio transceiver
-
Dimensions:
-
110x50x35MM
-
Frequency Range:
-
136-174/400-470/446/245MHZ
-
Product Name:
-
long range portable cheap analog marine hf radio transceiver
-
color:
-
black
-
weight:
-
238g(including battery)
-
Battery:
-
1300/1600mAh
-
Output Power:
-
4W/5W
-
Operating Voltage:
-
7.4V DC
-
Certificate:
-
FCC,CE
-
Warranty:
-
12 Months
-
VOX:
-
support
-
frequency range:
-
136-174,400-470MHz
long range portable cheap analog marine hf radio transceiver
| MODEL | PX578S IP67 radio Simple keys | |
| Waterproof and dustproof | IP67 suit for wade through water marine application | |
| Compact Size ruggy case | 110x50x35mm | |
| Frequency range | 136-174/400-470/446/245MHZ | |
| Channel capacity | 128 channels | |
| Power output | 4W/5W | |
| Battery | 1300/1600mAh | |
| New design PCB | new designed PCB/strong performance+better penetration | |
| Rich functions | VOX/scrambler,50CTCSS/105DCS switchable,ANI identification | |
| code/compact ruggy case /anti-dropping+attractive/DTMF/ | ||
| 5tone/MSK tone/signaling call are optional | ||
| Weight | 238g | |

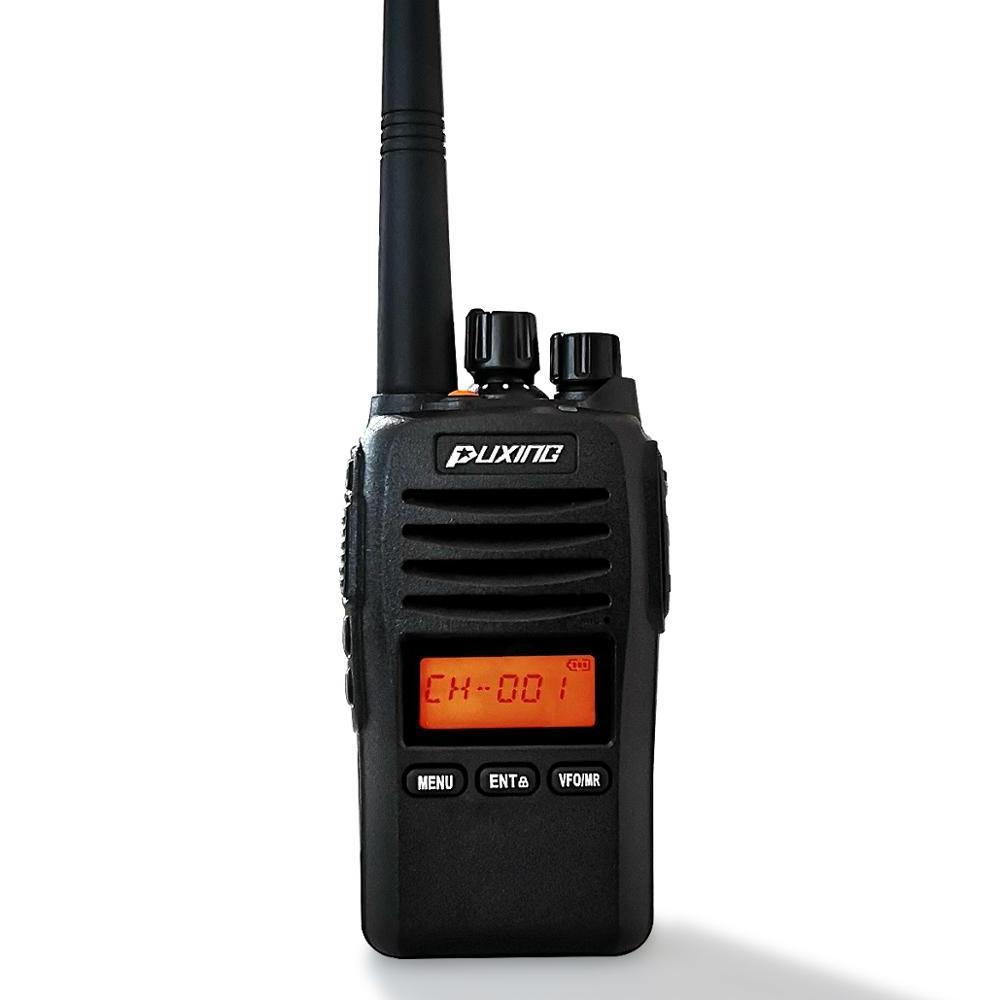

Product photos:
| Transmitter (ETSI EN 300 086 standard testing ) | ||
| Wide band | Narrow band | |
| Modulation | 16K F3E | 11K F3E |
| Adjacent channel power | 70dB | 60dB |
| Hum & noise | 40dB | 36dB |
| Spurious emission | -36dB | -36dB |
| Audio response | +2~-3dB(0.3~3KHz) | +2~-3dB(0.3~2.25KHz) |
| Audio distortion | 5% | |
| Audio power output | 500mW / 10% | |
| Frequency stability | 2.5ppm | |
| Channel spacing | 25KHz(Wide Band) 20KHz(Middle Band) 12.5KHz(Narrow band) | |
| Phase-locked step | 5KHz,6.25KHz | |
| Operating voltage | 7.4V DC | |
| Operating temperature | -20 C +55 C | |
| Receiver (ETSI EN 300 086 standard testing ) | ||
| Wide band | Narrow band | |
| Sensitivity (12dB Sinad) | 0.25 V | 0.35 V |
| Adjacent ChannelSelectivity | 55dB | 55dB |
| Intermodulation | 65dB | 60dB |
| Spurious Rejection | 55dB | 55dB |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) |
| Hum & Noise | 45dB | 40dB |
| Audio distortion | 5% | |
Main Items:
- 1 x Host
- 1 x Battery
- 1 x Antenna
- 1 x Belt Clip
- 1 x Use s Manual
- 1 x Charger
- 1 x Hand strap
1. Q: What s your MOQ?
A: 1pc if we have stock, if custom order, the moq is 500pcs, if your order qty can not reach 500pcs, pls contact us to discuss if there is any other solutions.
2. Q: Are you factory?
A: Yes, our factory was established in Quanzhou City in the year 1987, and moved to Xiamen city in the year 2005. We are a 10-year gold supplier on Alibaba, and awarded high trade assurance limit.
3. Q: Can you accept OEM&ODM order?
A: Yes, we are good at OEM&ODM and we provided this service for many Top brand all over the world.
4. Q: Do you have any certification?
A: Yes, we have CE, FCC and RoHS certificate. If you need other certificate, please contact us.
5. Q: When can you ship the products after payment?
A: For sample order, we can ship in about 7 days, if bulk order, normally 45days if no stock.
6. Q: What is your payment terms?
A: T/T or PayPal or L/C, also can accept Alibaba Trade Assurance.
7. Q: How to ship?
A: Normally small orders to be ship by courier (DHL,TNT,FedEx,UPS,etc.), bulk orders to be ship by sea or air, depends on customer s requests.
8. Q: How long is the warranty?
A: We will do 100% QC inspection before shipment . And w e guarantee 12months for radios and 6months for accessories from the date you get the goods, excludes damaged by human .
