Quick Details
-
Air Consumption:
-
3-4 m3/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Coal Group
-
Voltage:
-
220v/380v
-
Power:
-
3kw
-
Dimension(L*W*H):
-
1040X550X940
-
Weight:
-
260 kg
-
Shotcrete Machine Output:
-
3.5m3/h
-
Water cement ratio:
-
0.4
-
Aggregate size:
-
20mm
-
Hose inner size:
-
38mm
-
Operating air pressure:
-
0.4-06.mpa
-
Rotor diameter:
-
350mm
-
wheel:
-
Nylon or rubber
-
Item:
-
PZ-3
-
Whole weight:
-
260kgs
-
Overall dimension(mm):
-
1040*550*940
Quick Details
-
Max. Conveying Distance:
-
20m
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
350 mm
-
Air Consumption:
-
3-4 m3/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Coal Group
-
Voltage:
-
220v/380v
-
Power:
-
3kw
-
Dimension(L*W*H):
-
1040X550X940
-
Weight:
-
260 kg
-
Shotcrete Machine Output:
-
3.5m3/h
-
Water cement ratio:
-
0.4
-
Aggregate size:
-
20mm
-
Hose inner size:
-
38mm
-
Operating air pressure:
-
0.4-06.mpa
-
Rotor diameter:
-
350mm
-
wheel:
-
Nylon or rubber
-
Item:
-
PZ-3
-
Whole weight:
-
260kgs
-
Overall dimension(mm):
-
1040*550*940
Introduction of PZ Series Dry Gunite Shotcrete Machine Concrete Spraying Machine For Sale
1,Advantages: This is a high-effective shotcrete machine, Dry Gunite Shotcrete is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.
2,The Gunite Shotcrete Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
3,Four-point clamping device make the Dry Gunite Shotcrete easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
4,Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality. zmwm02
Main Parameter of PZ Series Dry Gunite Shotcrete Machine Concrete Spraying Machine For Sale
|
Item
|
PZ-3 |
PZ-5 |
|
Output |
3.5m3/h |
5m3/h |
|
Max. convey dist |
Horizontal:200m Vertical: 20m |
Horizontal:200m Vertical: 20m |
|
Water cement ratio |
≤0.4 |
≤0.4 |
|
Max. Aggregate. size |
20mm |
20mm |
|
Hose inner size |
38mm |
51mm |
|
Operating air pressure |
0.4~0.6MPa |
0.4~0.6MPa |
|
Air consumption |
3-4 m3/min |
7-8 m3/min |
|
Rotor diameter |
350mm(150) |
438mm |
|
Motor power |
Y112M-6-3KW |
Y132-6-5.5(KW) |
|
Voltages |
380v or as your requirements |
380v as your requirements |
|
Overall dimension(mm) |
1040X550X940 |
1280x700x1280 |
|
Whole weight |
260kgs |
600kgs |
|
wheel |
Nylon wheel or Rubber wheel |
|

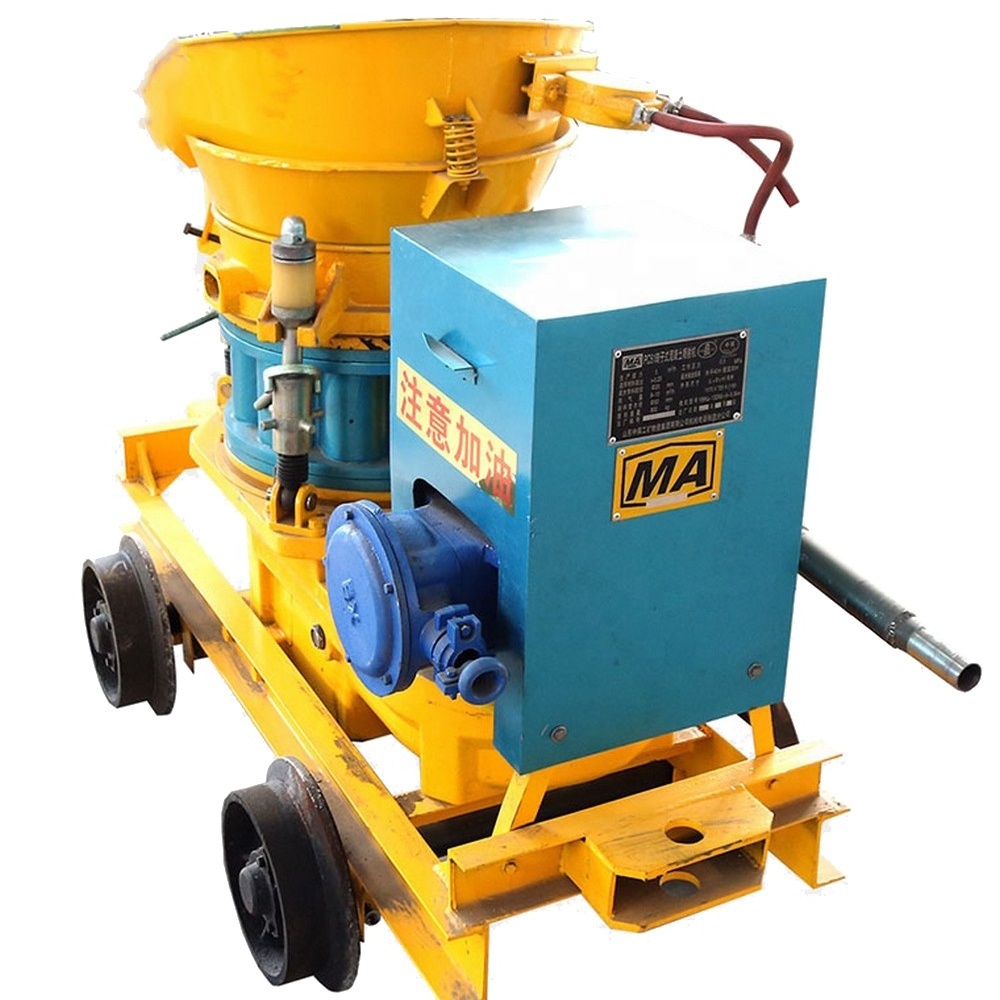

Photos of PZ Series Dry Gunite Shotcrete Machine Concrete Spraying Machine For Sale
