Quick Details
-
NPN, - NO, NC, NO+NC:
-
PNP-NO, NC, NO+NC
-
Usage:
-
Position Sensor
-
Theory:
-
Optical sensor
-
Output:
-
Switching Transducer
Quick Details
-
Model Number:
-
Q31-..
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Biduk
-
NPN, - NO, NC, NO+NC:
-
PNP-NO, NC, NO+NC
-
Usage:
-
Position Sensor
-
Theory:
-
Optical sensor
-
Output:
-
Switching Transducer

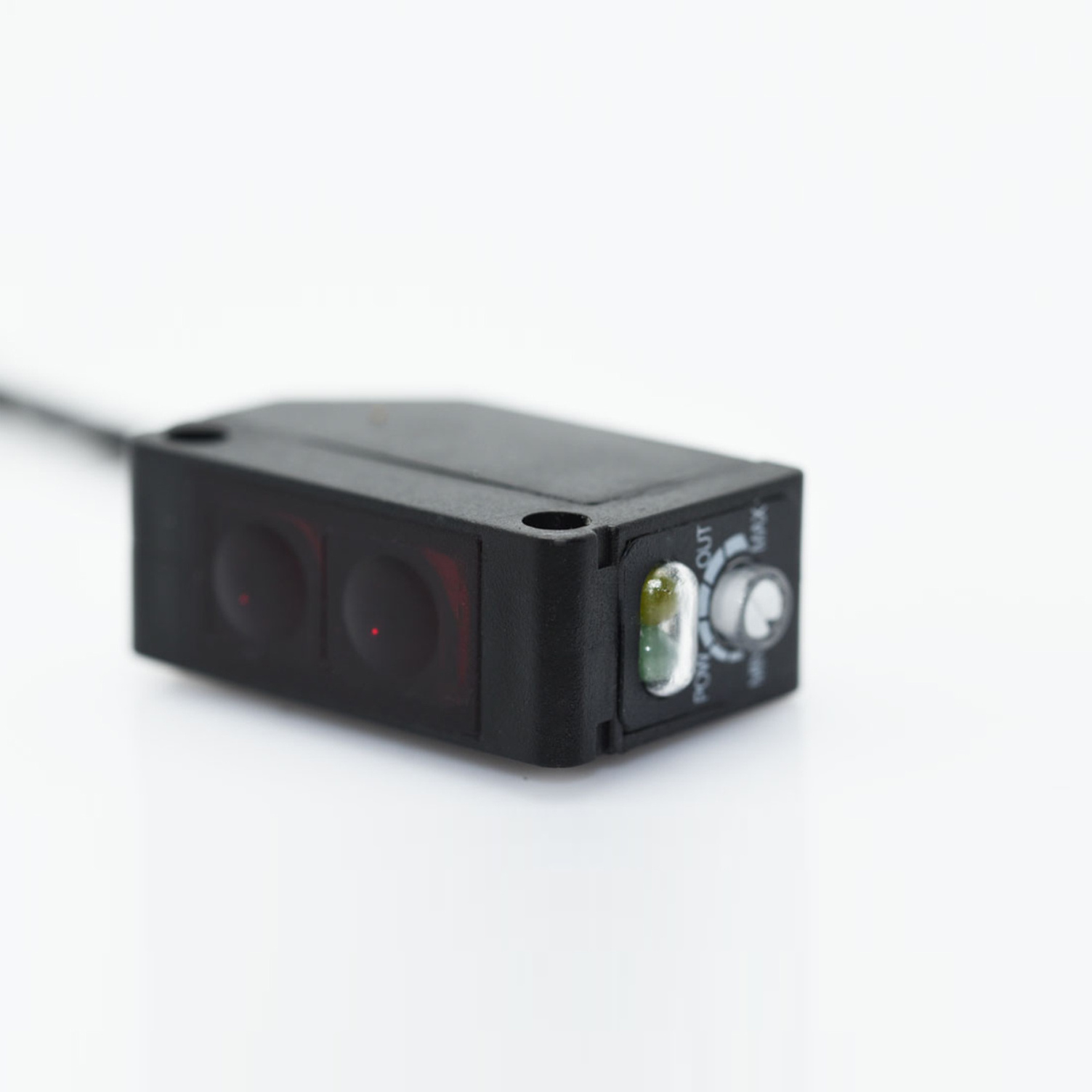

Product Description
| Technical data | |
| Mode | Diffuse/Retro-reflective/Through-beam |
| Sensing distance | 10mm-10m |
| Ripple | ≤10% |
|
Distance tolerance |
±10%Sn |
| Hysteresis | 15% |
| Light source | infrared (880nm) red(660nm) |
| Output | SPDT relay |
| Max current | 200mA |
| No load current | <20mA |
| Voltage drop | ≤2.9V(I=100mA) |
| Yellow LED | Output display |
| Green LED | Power display |
| Sensitive adjustable | VR for one circle |
| Frequency | 100HZ |
| Response time | 1ms |
| Start-up delay | <300ms |
| Short circuit protect/reverse polarity protect | Yes |
|
Light immunity |
>5.000Lux |
| Standard target | 200*200mm white paper |
| Connecting | 2M cable/M8 connector |
