Quick Details
-
Power:
-
10HP, AC Electrical/ Diesel/ DC/AC+DC
-
Min. Lifting Height:
-
8M
-
Table Size:
-
1200*800MM
-
Overall Dimensions:
-
5.4*1.665*1.9M
-
Weight:
-
2000 kg
-
Boom Lift Height:
-
8M/10M/12M/14M/16M
-
Color:
-
Yellow/Green/White/Bule any
-
Lifting Up/Dow Speed:
-
4m/min
-
Type:
-
Forklift/Truck /Suv Trailer Mounted
-
Brand:
-
START BOOM LIFT
-
Max mov speed:
-
80km/H
-
Application:
-
Aerial Construction Work
-
Voltage:
-
220Vac/380Vac 1p/3p
-
Operation way:
-
2 SETS CONTROL BUTTON
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Brand Name:
-
START LIFT
-
Power:
-
10HP, AC Electrical/ Diesel/ DC/AC+DC
-
Min. Lifting Height:
-
8M
-
Table Size:
-
1200*800MM
-
Overall Dimensions:
-
5.4*1.665*1.9M
-
Weight:
-
2000 kg
-
Boom Lift Height:
-
8M/10M/12M/14M/16M
-
Color:
-
Yellow/Green/White/Bule any
-
Lifting Up/Dow Speed:
-
4m/min
-
Type:
-
Forklift/Truck /Suv Trailer Mounted
-
Brand:
-
START BOOM LIFT
-
Max mov speed:
-
80km/H
-
Application:
-
Aerial Construction Work
-
Voltage:
-
220Vac/380Vac 1p/3p
-
Operation way:
-
2 SETS CONTROL BUTTON

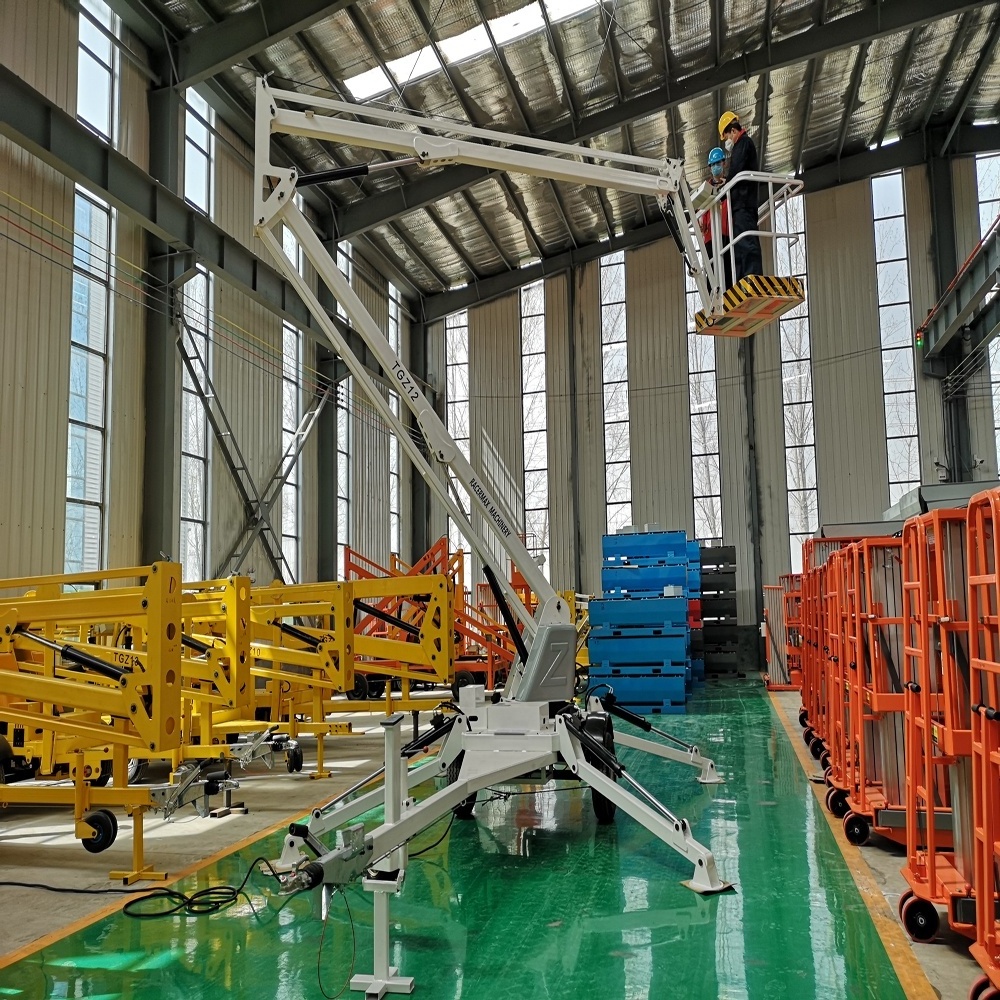

China Factory Price Genie Quality but cheap price Trailer Mounted Towable Cherry Picker Boom Lift
With easy-to-travel mobility,trailer-mounted boom lifts feature an outstanding operating envelope to reach jobs high and low.
Offering the best of both worlds, Start trailer-mounted booms boast the operating envelope of boom — reaching up, over and out , as well as can be e asily towed behind a pickup or SUV.
|
Model |
TGZ-8 |
TGZ-10 |
TGZ-12 |
TGZ-14 |
TGZ-16 |
|
Platform Height |
8M |
10M |
12M |
14M |
16M |
|
Working Height |
10M |
12M |
14M |
16M |
18M |
|
Maximum working radius |
4.5M |
5M |
6M |
8.5M |
9M |
|
Load Capacity |
200KG |
200KG |
200KG |
200KG |
200KG |
|
Platform Size |
1200*800MM |
1200*800MM |
1200*800MM |
1200*800MM |
1200*800MM |
|
Dimension(mm) |
5200*1585*1900MM |
5400*1665*1900MM |
6000*1665*1900MM |
6200*1730*2100MM |
7000*1730*2200MM |
|
Weight |
1500KG |
1700KG |
2000KG |
2350KG |
2600KG |
|
Voltage |
Customized |
Customized |
Customized |
Customized |
Customized |
|
General Power |
Alternate current |
Alternate current |
Alternate current |
Alternate current |
No |
|
Battery power |
Optional |
Optional |
Optional |
Optional |
Optional |
|
Dual power |
Optional |
Optional |
Optional |
Optional |
Optional |
|
Light :Brake/Tail/P latform |
Optional |
Optional |
Optional |
Optional |
Optional |
|
Units for 20 GP |
1 set |
1sets |
1sets |
/ |
/ |
|
Units for 40GP |
2sets |
2set |
2set |
2set |
1set |
- Compact design for indoor and outdoor use. Accommodates tight work areas
- Self-leveling platform
- Hydraulically arms and outrigger interlocks 360° continuous turntable rotation Low ground pressure due to optimal weight dispersal.
- Dual power sources:220V AC and petrol engine.
- Cables and hoses inside the boom.
- Safety and reliability: Complies with or exceeds all by ISO manufacturing standards, e.g. CE-approval.
- Adds length and reach through extended joints
Packaging: Standard export packages plywood boxes or according to customer requirements
Shipping: Within 7 working days after confirm the order
