Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Louie
-
Model Number:
-
DTL150,DTL250,DTL350,DTL450
-
Torque:
-
s
-
Name:
-
OEM solenoid value for TV lift with remote control
-
Input Voltage:
-
24V
-
Load:
-
3000N/6000N
-
Speed:
-
5/10mms
-
Color:
-
black/silver
-
Noise Level:
-
<48dB
-
Limit switch type:
-
Built-in
-
Operation temper:
-
-26 - 65°C
-
Protection class:
-
IP54
-
Output power:
-
50W
Quick Details
-
Speed(RPM):
-
1
-
Continuous Current(A):
-
<2A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Louie
-
Model Number:
-
DTL150,DTL250,DTL350,DTL450
-
Torque:
-
s
-
Name:
-
OEM solenoid value for TV lift with remote control
-
Input Voltage:
-
24V
-
Load:
-
3000N/6000N
-
Speed:
-
5/10mms
-
Color:
-
black/silver
-
Noise Level:
-
<48dB
-
Limit switch type:
-
Built-in
-
Operation temper:
-
-26 - 65°C
-
Protection class:
-
IP54
-
Output power:
-
50W
OEM solenoid value for TV lift with remote control

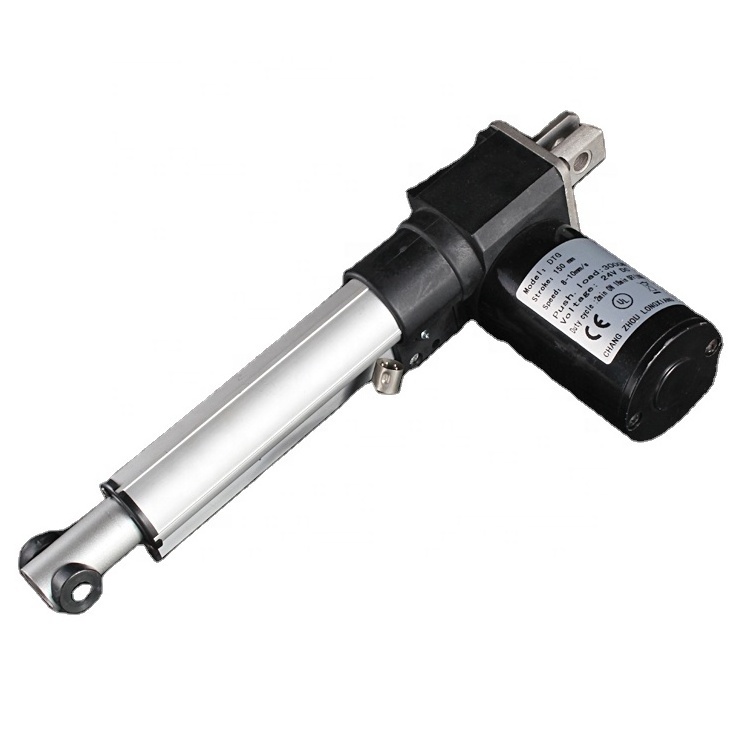

Linear actuator can be used for TV lift, industry equipment , beauty chair, medical bed,equipment, massage chair, boat, electrical bicycle, cabinet lift, fan lift and furniture use.
1. CE Certificate.
2. We have a wide range of linear actuator for worldwide customer.
3. Short deliver time for sample order, just 1-5 working days.
4. Good after-sale service.
5. Low noise.
6. Paypal is accepted.
Specifications:
Functions DTL
| linear actuator specification | stroke(mm) | mini install dimensions(mm) | thrust(N) | pulling(N) | speed(mm/s) |
| DTL50 | 50mm | S+160MM | 3000/6000 | 2400/4800 | 10/5 |
| DTL100 | 100mm | S+160MM | 3000/6000 | 2400/4800 | 10/5 |
| DTL150 | 150mm | S+160MM | 3000/6000 | 2400/4800 | 10/5 |
| DTL200 | 200mm | S+160MM | 3000/6000 | 2400/4800 | 10/5 |
| DTL250 | 250mm | S+160MM | 3000/6000 | 2400/4800 | 10/5 |
| DTL300 | 300mm | S+210MM | 3000/6000 | 2400/4800 | 10/5 |
| DTL350 | 350mm | S+210MM | 3000/6000 | 2400/4800 | 10/5 |
| DTL400 | 400mm | S+210MM | 3000/6000 | 2400/4800 | 10/5 |
| DTL450 | 450mm | S+210MM | 3000/6000 | 2400/4800 | 10/5 |
| DTL500 | 500mm | S+210MM | 3000/6000 | 2400/4800 | 10/5 |
| DTL600 | 600mm | S+210MM | 3000/6000 | 2400/4800 | 10/5 |
| DTL700 | 700mm | S+210MM | 3000/6000 | 2400/4800 | 10/5 |
| DTL800 | 800mm | S+210MM | 3000/6000 | 2400/4800 | 10/5 |
| DTL900 | 900mm | S+210MM | 3000/6000 | 2400/4800 | 10/5 |
| DTL1000 | 1000mm | S+210MM | 3000/6000 | 2400/4800 | 10/5 |
| We can make different specifications of linear actuator according to your requirement. | |||||
