- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
5102.00
-
Warranty:
-
3 years, 3 Years
-
Type:
-
Sensor Switch
-
Power:
-
36/ 72W
-
Sensing Range:
-
15*15mm
-
Brand:
-
LGDD/OEM/ODM
-
Product name:
-
Sensor Switch
-
Model:
-
5102.00
-
Material:
-
PCB+Plastic Housing
-
Certificate:
-
CE
-
Package:
-
Individual with anti - static bag
-
Features:
-
Touch sensitive
-
Working Lifetime:
-
Cycle test>10,000 times approved by lab
-
MOQ:
-
10 Pcs
-
Certification:
-
Sensor Switch
Quick Details
-
Voltage:
-
12/ 24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LGDD
-
Model Number:
-
5102.00
-
Warranty:
-
3 years, 3 Years
-
Type:
-
Sensor Switch
-
Power:
-
36/ 72W
-
Sensing Range:
-
15*15mm
-
Brand:
-
LGDD/OEM/ODM
-
Product name:
-
Sensor Switch
-
Model:
-
5102.00
-
Material:
-
PCB+Plastic Housing
-
Certificate:
-
CE
-
Package:
-
Individual with anti - static bag
-
Features:
-
Touch sensitive
-
Working Lifetime:
-
Cycle test>10,000 times approved by lab
-
MOQ:
-
10 Pcs
-
Certification:
-
Sensor Switch
Products Description
Description：

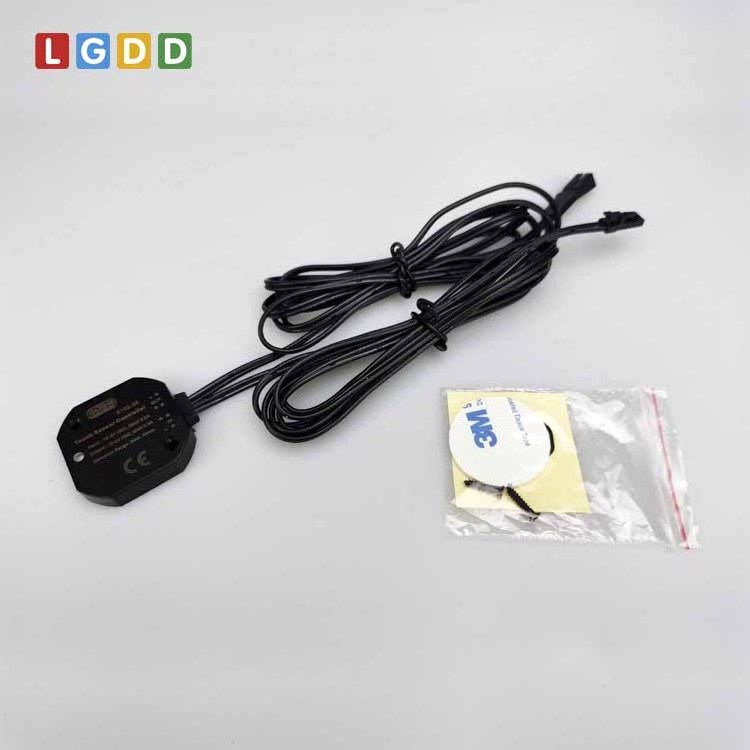

This Touch Sensor Switch can
be used behind wooden, marble or quartzite board
to turn on/off lighting. Instead of traditional wall dimmer switches or Bluetooth controller, it can be more flexibly located, simpler and more economical. The possibilities are endless, use your creativity to create amazing on/off switches (lamps, hand rails, handles, etc.). One touch to turn your lights on and one touch to turn them off.
Key Feature：
1. Blue LED indicates the operation status of ON/OFF
2. Light gradually on/off from 0-100% within 1.5s
3. Used behind wooden, marble or quartizite board, etc (thickness ≤ 35mm)
2. Light gradually on/off from 0-100% within 1.5s
3. Used behind wooden, marble or quartizite board, etc (thickness ≤ 35mm)
Performance Parameters：
|
Model
|
Input Voltage
|
Output Voltage
|
Rated Power
|
Rated Current
|
Dimension(mm)
|
|
5102.00
|
12V/24V
|
12V/24V
|
36W (12V)
72W (24V) |
3.0A
|
35*35*7
|
Size：35*35*7mm
More Options：
|
Model No.
|
Main Function
|
Function Description
|
|
5102.00
|
ON/OFF
|
Can be used behind wooden, marble or quartzite board, etc.
(thickness ≤ 35mm) Short touch (soft start): light gradually on/off from 0-100% within 1.5s. Blue Led indicates the operation status of on/off. *Sensor indicator color can be customized as per your requirements. |
|
5102.00D
|
ON/OFF+Dimming
|
Can be used behind the wooden Board. (Detection Range:≤35mm)
Short touch: on/off the light Long touch: dimming form 5%~100% Blue Led indicates the operation status of on/off. |
|
5102.01D
|
ON/OFF
Dimming |
To be installed exposed to mounting surface.
Short touch (soft start): light gradually on/off from 0-100% within 1.5s. Long touch: dimming form 5%~100% With Memory Function Blue Led indicates the operation status of on/off. *Sensor indicator color can be customized as per your requirements. |
