Quick Details
-
Max. Loading Capacity:
-
500kg
-
Weight (KG):
-
900 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LTD
-
Voltage:
-
380V,50Hz,3Phase
-
Power (kW):
-
7.5 kW
-
Marketing Type:
-
Hot Product 2023
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certificate:
-
CE,ISO
-
Machine Type:
-
Mixer
-
Power(W):
-
15-45kw
Quick Details
-
Barrel Volume (L):
-
500
-
Max. Loading Volume (L):
-
600 L
-
Range of Spindle Speed(r.p.m):
-
0 - 1500 r.p.m
-
Max. Loading Capacity:
-
500kg
-
Weight (KG):
-
900 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LTD
-
Voltage:
-
380V,50Hz,3Phase
-
Power (kW):
-
7.5 kW
-
Marketing Type:
-
Hot Product 2023
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certificate:
-
CE,ISO
-
Machine Type:
-
Mixer
-
Power(W):
-
15-45kw

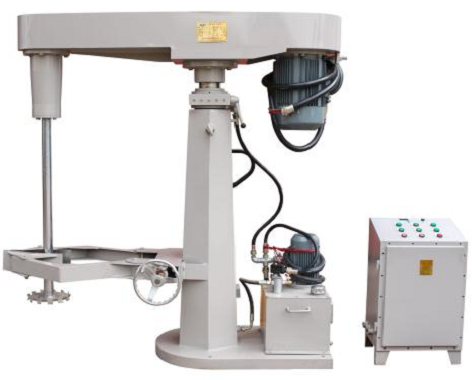

500L paint high speed disperser machine for water based and solvent based paint
1.Application :
| Application |
This high speed disperser is applied to the dissolution,mixing and dispersion of materials such as paint,ink,dyes,pigment,medical,papermaking and other industires. |
||||||
| Features |
1.Suitable for all kinds of liquid to premix,disperse and color-matching. 2.It can process different kinds of viscosity and capacity of coatings 3. Variable speed control with inverter |
||||||
| Motor and Inverter |
1.Power supply: 380V,50Hz,3Phase(can be customized) 2.Brand:Motors and inverters we equipped are made-in-china.But they are also can be others brands such as ABB,Siemens motors and OMRON inverters at customer's request |
||||||
| Dispersing shaft | Can be one,two or multi-shafts;stainless steel material, | ||||||
| Dispersing Discs | Cowles Disc and Fillworth Disc | ||||||
| Lifting way | Hydraulic(oil)lifting | ||||||
| Material |
1.The part contact with the materials is SS304,SS316 or SS316L at your material PH 2. Hydraulic pressure oil cylinder :By chrome-plated on the surface of carbon steel |
||||||
| Electric control cabinet | Can be ordinary or on-spot explosion-proof models according to the material is water-base or oil-based | ||||||
| Anti-explosion devices |
Motors,electromagnetic valves;electric control box and all outside electrical wires are in explosion-proof tubes |
||||||
| Tank arm/clamp device | Equipped for making the mixing tank unmovable when mixing | ||||||
2.Techincal parameters:
| Models | FS15 | FS18.5 | FS22 | FS30 | FS37 | FS45 |
| Principle power | 15kw/20HP | 18.5KW/25HP | 22KW/30HP | 30KW/40HP | 37KW/50HP | 45KW/60HP |
| Rotational speed | 0-1500 or 0-3000rpm | |||||
| disc size | Φ250 and Φ300mm | Φ300 and Φ350mm | Φ350 and Φ400mm | |||
| Lifting stroke | 1200mm | |||||
| Pump power | 0.75/1.5kw | 1.5kw | 2.2kw | |||
| Mixing tank capacity | 800L | 1000L | 1200L | 1500-2000L | 2000L-3000L | 3000L-5000L |
| Weight | 1000kg | 1100kg | 1200kg | 1200kg | 1400kg | 1600kg |
3.Remark:
1)Doulbe shaft can be equipped when the motor power is more than 22kw/30Hp.
2)The above listed mixing capacity is cauculated as per water medium.
3)The model selection should be depend on the comprehensive factors such as material viscosity,consistency and specific gravity etc.
4)The disperser we made can be with power of 132kw.
5)Power supply is 380V,50Hz,3Phase(can be customized)
6)If works under special environment such as high temerature,high pressure,explosive,corrosive
etc.correct data is required for correct model selection.
7)Not all models listed,for more,please contact with our salesman.
