Quick Details
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
11200kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Online support, Field maintenance and repair service
-
Place of Origin:
-
shanxi,china
-
Dimensions (L x W x H) (mm):
-
8354x2490x3450
-
Cargo Tank Dimension:
-
5600*2300*1500
-
Product name:
-
Used shacman dump truck
-
Driving type:
-
LHD RHD
-
Brand:
-
Shacman
-
Engine:
-
Weichai
-
Color:
-
Customer's Request
-
Transmission:
-
10JSD120
-
Tire:
-
11.00R20
-
Keywords:
-
380hp used truck
-
Loading capacity:
-
21-30 TON
-
Cab:
-
One Sleeper
Quick Details
-
Condition:
-
Used
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
11200kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Online support, Field maintenance and repair service
-
Place of Origin:
-
shanxi,china
-
Dimensions (L x W x H) (mm):
-
8354x2490x3450
-
Cargo Tank Dimension:
-
5600*2300*1500
-
Product name:
-
Used shacman dump truck
-
Driving type:
-
LHD RHD
-
Brand:
-
Shacman
-
Engine:
-
Weichai
-
Color:
-
Customer's Request
-
Transmission:
-
10JSD120
-
Tire:
-
11.00R20
-
Keywords:
-
380hp used truck
-
Loading capacity:
-
21-30 TON
-
Cab:
-
One Sleeper
Product Description

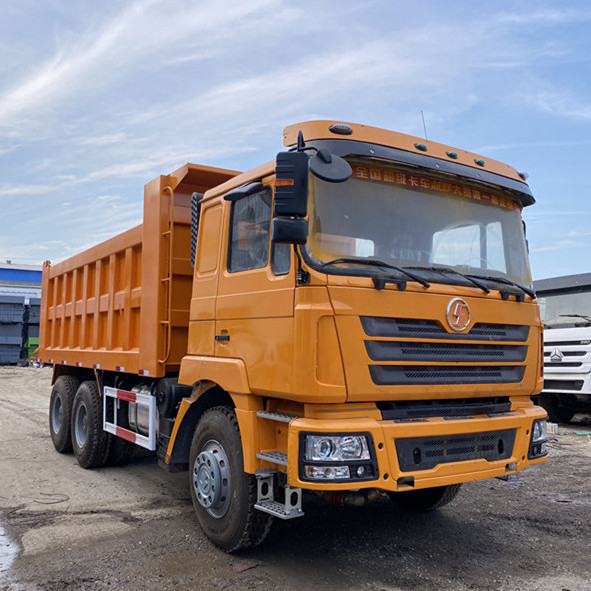

Used Shacman F3000 Dump Truck 6x4 Tipper Truck
Details Images
Specification
|
Model
|
|
Used Shacman F3000 Dump Truck 6x4 Tipper Truck
|
|
|
|||
|
Driving type
|
|
6x4 4x2 8x4
|
|
|
|||
|
Weight
|
Complete kerb mass (kg)
|
12160
|
|
|
|||
|
|
GVW(kg)
|
32500
|
|
|
|||
|
Dimensions
|
LxWxH(mm)
|
7550x2490x3450
|
|
|
|||
|
|
Body size(mm)
|
5600x2300x1100,1300,1500
|
|
|
|||
|
|
Front/rear overhang(chassis)
|
1525/1450
|
|
|
|||
|
|
Wheelbase(mm)
|
3175+1400
|
|
|
|||
|
|
Track width (mm)
|
2036/1850
|
|
|
|||
|
Engine
|
Brand
|
Weichai
|
|
|
|||
|
|
Model
|
WP10.336
|
|
|
|||
|
|
Power(kw/HP)
|
247/336
|
|
|
|||
|
|
Max.torque(N.m)/rpm
|
1250/1200-1600
|
|
|
|||
|
|
Displacement(L)
|
9.726
|
|
|
|||
|
|
Emission standard
|
Euro 3
|
|
|
|||
|
Axles
|
Brand
|
-
|
|
|
|||
|
|
Front axle
|
7500kg
|
|
|
|||
|
|
Rear axle
|
16000kg,Double reduction driving axle with inter-wheel differential and differential lock
|
|
|
|||
|
|
Ratio
|
5.262
|
|
|
|||
|
|
Optional
|
9500kg front axle
|
|
|
|||
|
performance
|
Max.speed(km/h)
|
76
|
|
|
|||
|
|
Min. turning circle (m)
|
15
|
|
|
|||
|
|
Min. ground clearance(mm)
|
314
|
|
|
|||
|
|
Approach/Departure angle(o)
|
28/30
|
|
|
|||
|
|
Max.grade ability(%)
|
32
|
|
|
|||
Packing & Delivery
Dump trucks are generally transported in three ways: By Bulk cargo ship, By ro/ro ship , By 40' flat rack
Shipping term
Container: The cheapest and fast one ;put the machine into container need disassemble .
Flat rack:Often used to ship two wheel loader,max load-bearing is 35tons.
Bulk cargo ship :which is better for bigger construction equipment,no need disassemble.
RO RO ship :The machine is driven directly into the ship and does not need to be disassembled.
