Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Traditional
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JBCZ
-
Model Number:
-
12-40mm
-
Product name:
-
JBCZ bolt rebar coupler
-
Tensile strength:
-
100% bar break
-
coupler sample:
-
Available
-
meet standard:
-
ACI 318, BS8110, ASTM A615
-
Yield strength:
-
500MPA
-
Tensile:
-
650MPA
-
Key world:
-
rebar bolt coupler
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
3D model design, Cross Categories Consolidation, graphic design, total solution for projects
-
Application:
-
Office Building
-
Design Style:
-
Traditional
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JBCZ
-
Model Number:
-
12-40mm
-
Product name:
-
JBCZ bolt rebar coupler
-
Tensile strength:
-
100% bar break
-
coupler sample:
-
Available
-
meet standard:
-
ACI 318, BS8110, ASTM A615
-
Yield strength:
-
500MPA
-
Tensile:
-
650MPA
-
Key world:
-
rebar bolt coupler

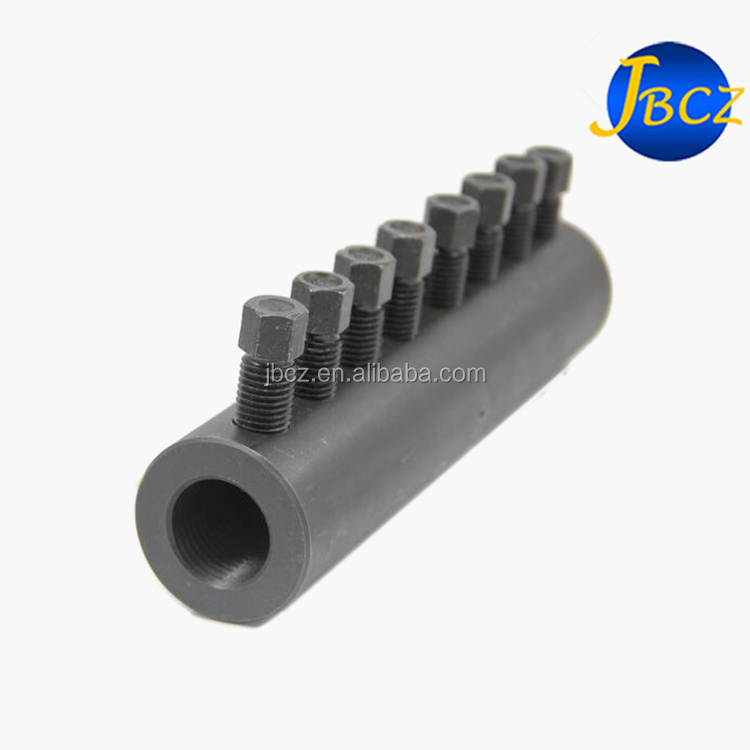

Bolt rebar coupler
Universal repair system of bolt rebar couplers connection
mechinical bar lock coupler / rebar coupler is a kind of rebar coupler, without make any thread on rebar. We can customized the screw coupler according to client requirement. And we also have standard rebar coupler, like parallel threaded coupler, no threaded coupler, taper threaded coupler, weld threaded coupler and so on. The test shows that JBCZ rebar coupler comply with the following design standard: BS EN 1992-1-1: 2004 (Europe Standard 2), British Standard BS5400, British Standard BS8110, American Standard ACI 318 and German Standard DIN 1045 Note: Not all types and sizes of rebar couplers show the approval from related countries. The detailed information of rebar coupler’s types and sizes from each countries’ approval, please refer to the relevant approval documents, it can be provided according requirements.
| Diametef(mm) | Out diameter (mm) | Length (mm) | Lock shear boft quantity (pcs) | Tensile strength | Wetght (kg) | serrated grip rail quantity(pcs) |
| 12 | 34 | 140 | 6 | 135%yield strength | 0.75 | 2 |
| 16 | 43 | 160 | 6 | 135 % yield strength | 1.08 | 2 |
| 20 | 48.3 | 204 | 8 | 135 % yield strength | 1.69 | 2 |
| 25 | 54 | 258 | 8 | 135 % yield strength | 2.51 | 2 |
| 32 | 71 | 312 | 8 | 135 % yield strength | 6.07 | 2 |
| 40 | 81 | 484 | 12 | 135 % yield strength | 11.63 | 2 |
Product Advantages
- Site assembly with standard wrench
- No need of bar end preparation
- Full trace ability of material origin or production batch
- Manufactured under strict quality assurance plan ISO9001
- Ideal for concrete-embedded bars , repair and retrofit works , bent bars, etc...
- Full bar break under tensile test
