- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
VS
-
Pixel Format:
-
1280x800
-
Display Mode:
-
Normally White, Transmissive
-
interface:
-
lvds 20 pins
-
Product Name:
-
LCD PANLE
-
Board:
-
lcd controller board
-
Input:
-
TV,VGA AV USB RF
-
Power:
-
12v 2a
-
Brightness:
-
400cd/m2
-
MOQ:
-
1PCS
Quick Details
-
Type:
-
TFT
-
Display Size:
-
12.1inch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VS
-
Pixel Format:
-
1280x800
-
Display Mode:
-
Normally White, Transmissive
-
interface:
-
lvds 20 pins
-
Product Name:
-
LCD PANLE
-
Board:
-
lcd controller board
-
Input:
-
TV,VGA AV USB RF
-
Power:
-
12v 2a
-
Brightness:
-
400cd/m2
-
MOQ:
-
1PCS
|
Product Name:
|
LCD Controller Board
|
|
Details
:
|
HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2 USB Support Video AV Compatible With PAL And NTSC Video Input: HDMI VGA AV USB RF Audio Input: HDMI PC-Audio Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 188mm x 43mm x 17mm |
|
Compatible Work With:
|
12.1" LQ121K1L52 1280X800 LCD Screen
|
|
Details:
|
Display Mode TN, Normally White, Transmissive
Resolution 1280RGB)×800 Outline Size 278× 185×9.6 (H×V×D) Display Area 216 × 163.2 (H×V) Brightness 400 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (TM) Viewing Angle 80/80/65/80 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface LVDS (1 ch, 8-bit) , 20 pins , Connector Backlight WLED Input Voltage 3.3V (Typ.) |
|
Packing list:
|

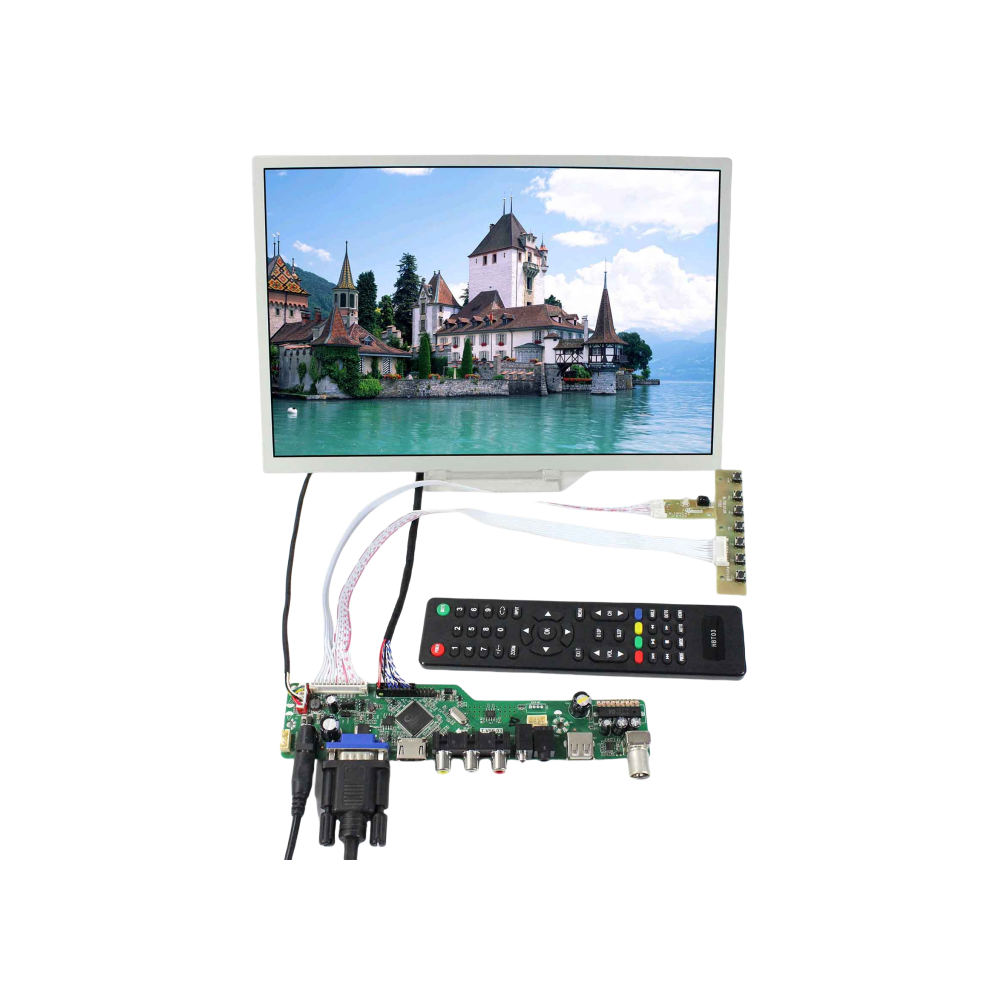

1× HDMI VGA AV USB RF LCD Controller Board T.V56.03
1× 12.1inch LQ121K1LG52 1280X800 LCD Screen 1× LVDS Cable 1× Backlight Cable 1× Keyboard With Cable 1× Remote Control(Battery Not included) |
Q: Are you trading company or manufacturer ?
Q: How long is your delivery time?
A: Generally it is 1-3 days for sample if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge, shipping cost depend on the QTY.Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q: After Service for the product ?
A: We can provide the wireless technology support in any time. If the goods broken during the shipping, pls contact us after received the goods, we will refund your payment or Replenishment deliver.
