One key start, convenient and quick, easy to use!
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
stainless wire thread rolling machine for bolt
-
Voltage:
-
380v
-
Power:
-
5.5+2.2kw+125w
-
Dimension(L*W*H):
-
1600*1400*1200mm
-
Weight:
-
950
-
Product name:
-
Automatic Threading Machine Drywall Screw Thread Rolling Machine
-
Keyword:
-
custom machine screw making equipemnt
-
Hydraulic Power:
-
2.2kw-4
-
The maximum rolling pressure:
-
200KN
-
Thread Roller Max. diameter:
-
120-170mm
-
Main axle rotating speed:
-
16,26,38, 55,90(r/min)
-
Two-headed center distance:
-
150-270mm
-
Artifacts pitch:
-
1-12mm
-
Roller Diameter:
-
190-240mm
-
Spindle tilt angle:
-
±15°
Quick Details
-
Place of Origin:
-
Henan, China
-
Application:
-
rolling thread machine-for-making-nut-bolts
-
Production Capacity:
-
130pic/min
-
Brand Name:
-
stainless wire thread rolling machine for bolt
-
Voltage:
-
380v
-
Power:
-
5.5+2.2kw+125w
-
Dimension(L*W*H):
-
1600*1400*1200mm
-
Weight:
-
950
-
Product name:
-
Automatic Threading Machine Drywall Screw Thread Rolling Machine
-
Keyword:
-
custom machine screw making equipemnt
-
Hydraulic Power:
-
2.2kw-4
-
The maximum rolling pressure:
-
200KN
-
Thread Roller Max. diameter:
-
120-170mm
-
Main axle rotating speed:
-
16,26,38, 55,90(r/min)
-
Two-headed center distance:
-
150-270mm
-
Artifacts pitch:
-
1-12mm
-
Roller Diameter:
-
190-240mm
-
Spindle tilt angle:
-
±15°
CNC steel rod rolling machine
is a multi-functional cold extrusion forming machine tool. The wire rolling function is mainly in its rolling pressure range, under the cold state of the
workpiece
thread, straight lines, twill rolling processing. With cnc controlling, the screw rolling machine is high
efficiency
, better working performance, and multi-material processing accessible. Welcome inquiries about our screw rolling machine and its related production line.
Can form a variety of threads:
Worm thread
Metric thread
American thread
English thread
Specification
|
Model
|
KL-40
|
KL-80
|
KL-150
|
KL-185
|
KL-200
|
||||
|
Max rolling pressure
|
120kn
|
150kn
|
150kn
|
180kn
|
200kn
|
||||
|
Hydraulic diameter
|
5-36mm
|
6-42mm
|
6-48
|
10-60mm
|
14-80mm
|
||||
|
Rolling wheel diameter（mm）
|
120-170
|
120-170
|
120-170
|
175-220
|
175-220
|
||||
|
Max width of rolling wheel
|
110MM
|
110MM
|
110MM
|
150mm
|
150mm
|
||||
|
Spindle center distance
|
120MM
|
120MM
|
120MM
|
150-300mm
|
150-300mm
|
||||
|
Rolling wheel aperture
|
54hole
|
54hole
|
54hole
|
75hole
|
75hole
|
||||
|
Hydraulic power
|
4kw
|
2.2kw
|
2.2kw
|
3kw
|
5.5kw
|
||||
|
Main motivation
|
4kw
|
5.5kw
|
7.5kw
|
11kw
|
11kw
|
||||
|
Spindle speed
|
36-78/min
|
36-78/min
|
36-78/min
|
20-64/min
|
20-64/min
|
||||
|
Spindle tilt angle
|
±5°
|
±5°
|
±5°
|
±10°
|
±10°
|
||||
|
Thread length
|
No limitation
|
No limited
|
No limited
|
No limited
|
No limited
|
||||
|
Dimensions
(M)
|
1.5*1.3*
1.4
|
1.48*1.33*1.44
|
1.47*1.33*1.44
|
1.78*1.73*1.43
|
1.78*1.73*1.43
|
||||
|
Weight
|
1100kg
|
1700kg
|
1800kg
|
2000kg
|
2600kg
|
||||
PRODUCT DETAILS
The main system of this machine is hydraulic system.
The machine adopts cast steel bracket.
Which has strong use ability.
This machine adopts all copper motor.
Strong conductivity, good performance!
Made of high quality material Control panel with professional design
Unique design Reasonable electricity device with high safety

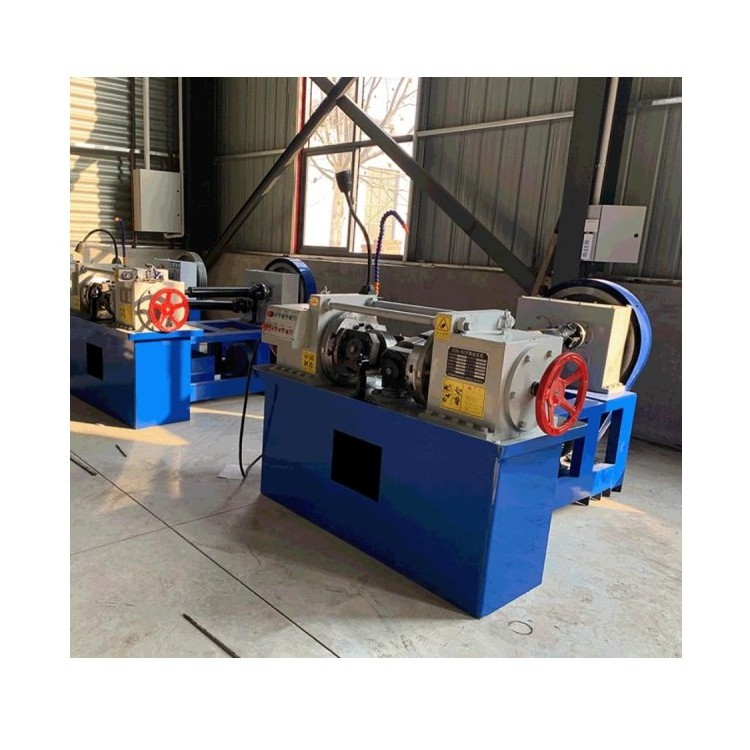

Product Display
OUR FACTORY
Product Final Effect
Related Products
Company Introduction
FAQ
Q1: What is MOQ?
A1: no matter which model 1set is our MOQ;
Q2: Where will the orders be shipped from?
A2: It will ship from the main ports China,like Qingdao,Tianjin,Shanghai,Guangzhou,Dalian.
Q3: What is payment Terms for making order?
A3: Our payment terms is T/T or use Alibaba Trade Assurance (50% deposit+50%balance).
Q4: Are you manufacturer?
A4. yes,OEM,we are manufacturer with own workshop,welcome to visit our factory if u have time.
Q5: Can we make customized order?
A5: yes,we accept custom design.
Q6:Can you offer us the necessary paper to do the customs clearance?
A6:Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms), insurance policy (if CIF terms), also CO if you need.
Q7: Can your meet our country's standards?
A7: we can do your order as your request to meet different standards.
Q8: How about quality guarantee Terms?
A8: Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer.
