Quick Details
-
Country of Origin:
-
China
-
Brand:
-
Cansec
-
size:
-
15mm*21mm*3mm
-
Frequency:
-
2.4GHz
-
Power Supply:
-
2-3.6V
-
Current Draw(TX/RX/Standby):
-
29mA/30mA/1μA
-
TX Power/RX Sensitivity:
-
4.5dBm/-97dBm
-
Flash/RAM:
-
256KB/8KB
-
I/O:
-
19
-
Open Field Range:
-
170M
Quick Details
-
Model Number:
-
ZB2530UA-A
-
Chipset:
-
TI-CC2530
-
Application:
-
IoT
-
Country of Origin:
-
China
-
Brand:
-
Cansec
-
size:
-
15mm*21mm*3mm
-
Frequency:
-
2.4GHz
-
Power Supply:
-
2-3.6V
-
Current Draw(TX/RX/Standby):
-
29mA/30mA/1μA
-
TX Power/RX Sensitivity:
-
4.5dBm/-97dBm
-
Flash/RAM:
-
256KB/8KB
-
I/O:
-
19
-
Open Field Range:
-
170M
|
Parameter
|
|
Min
|
Typ
|
Max
|
Unit
|
|||
|
Operating Voltage
|
|
2
|
-
|
3.6
|
V
|
|||
|
Operating Temperature
|
|
-30
|
-
|
+85
|
℃
|
|||
|
Current
Consumption |
Sleep Mode
|
-
|
0.4
|
-
|
uA
|
|||
|
|
Receive mode
|
-
|
25
|
-
|
mA
|
|||
|
|
Transmit Mode (@3.5dBm)
|
-
|
36
|
-
|
mA
|
|||
|
TX Power (For Carrier)
|
|
-
|
3.5
|
4
|
dBm
|
|||
|
RX Sensitivity (For Lora Modulation)
|
|
-
|
-
|
-97
|
dBm
|
|||
|
Distance
|
|
170
|
|
|
m
|
|||

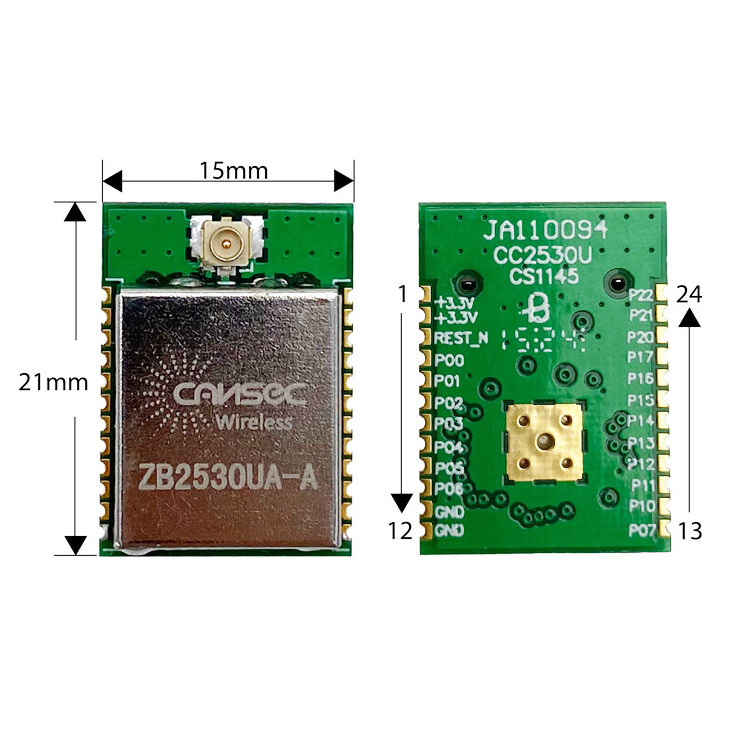

ZB2530UA-A Module is designed based on CC2530 System-on-Chip
. The CC2530 is a true system-on-chip (SoC) solution for IEEE 802.15.4, ZigBee and RF4CE applications. It enables robust network nodes to be built with very low total bill-of-material costs.
The CC2530 combines the excellent performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU
, in-system programmable flash memory, 8-KB RAM, and many other powerful features.
The CC2530 has various operating modes
, making it highly suited for systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption. Combined with the industry-leading and golden-unit-status ZigBee protocol stack (Z-Stack™) from Texas Instruments, the CC2530F256 provides a robust and complete ZigBee solution. Combined with the golden-unit-status RemoTI stack from Texas Instruments.
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have
quality assurance?
A3;
Each of our products has undergone quality testing and has two years of free after-sales service.
