GPHF 16-Port GPON Interface Board H901GPHF
UONEL CO.,LTD
Contact: Poppy
Mobile/Whatsapp: +86 13554987097
Wechat/Skype: poppylee7

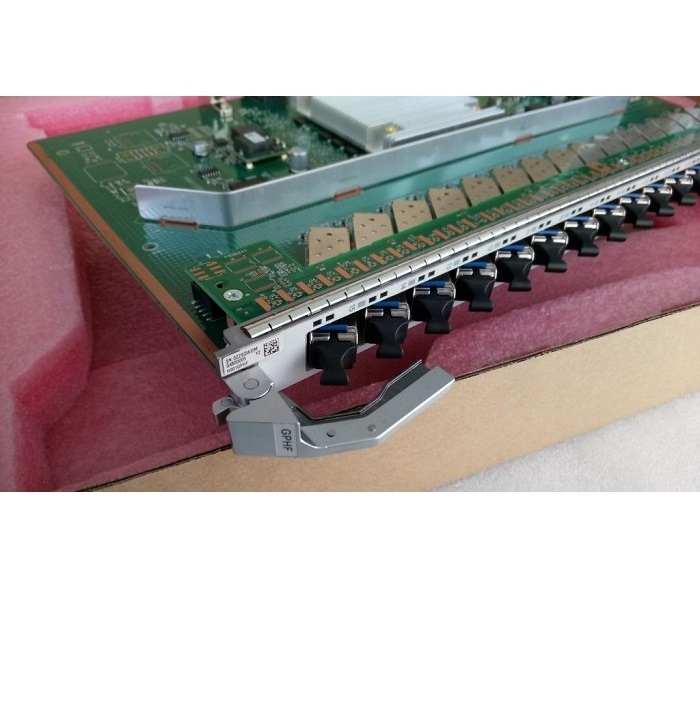

SmartAX MA5800 H901GPHF 16-port GPON OLT interface board
H901GPHF Specification
| Part Number | 03022SQW |
| Model | H901GPHF |
| Product Description | 16-port Advanced GPON OLT Interface Board |
| Product Series | MA5800-X7 |
| Dimensions (H x W x D) | 442 mm x 268.7 mm x 263.9 mm |
| Maximum Number of Ports in a Subrack | 112 x GPON/EPON ,336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1 |
| Switching Capacity of the System | 7 Tbit/s |
| Maximum Number of MAC Addresses | 262,143 |
| Maximum Number of ARP/Routing Entries | 64K |
| Ambient Temperature | 0C to 65C Note: The MA5800 can start up at a lowest temperature of -25C and run at - 40C. The 65C temperature refers to the highest temperature measured at the air intake vent |
| Working Voltage Range | -38.4V DC to -72V DC |
| Layer 2 Features | VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82 |
| Layer 3 Features | Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF |
| MPLS & PWE3 | MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching |
| IPv6 | IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay |
| Multicast | IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast |
| QoS | Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL |
| System Reliability | GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control |
difference among H901GPHF, H901GPSF, H805GPFD
| Function | H901GPHF | H901GPSF | H805GPFD |
| Port | 16 GPON ports with SFP optical modules | 16 GPON ports with SFP optical modules | 16 GPON ports with SFP optical modules |
| Max. split radio | Class B+: 1:64 | Class B+: 1:64 | Class B+: 1:64 |
| Class C+/C++: 1:128 | Class C+/C++: 1:128 | Class C+/C++: 1:128 | |
| Forwarding capability | 40 Gbit/s | 40 Gbit/s | 40 Gbit/s |
| T-CONTs per PON port | 1024 | 1024 | 1K |
| Service flows per PON board | 16384 | 16384 | 16K |
| Maximum frame size | 2004 bytes | 2004 bytes | 2004 bytes |
| 9216 bytes(jumbo frame enabled) | 9216 bytes(jumbo frame enabled) | ||
| Maximum number of MAC addresses | 131072 | 16384 | 64K |
| Maximum distance difference between two ONUs under the same PON port | 40 km | 40 km | 40 km from V800R013 |
| FEC | Bidirection | Bidirection | Bidirection |
| CAR group | Supported | Supported | Supported |
| Queue scheduling hierarchy | 4-level HQoS | 2-hierarchical HQoS | 4-level HQoS |
| IPv6 | Supported | ||
| Variable-length OMCI | Supported | Supported | Supported from V800R013 |
| ONU-based shaping or queue-based shaping | Supported | Supported | Supported |
| Load sharing | Supported | Supported | Supported |
| High-precision clock time synchronization | Supported | ||
| Type B protection (dual-homing) | Supported | Not supported | |
| Type B Protection (single-homing)/ Type C | Supported | Supported | |
| Type B/Type C protection | Supported | ||
| 1588v2 | Supported | Not supported | |
| Rogue ONU detection and isolation | Supported | Supported | Supported |
| Automatic shutdown at high temperature | Supported | Supported | Supported |
| Automatic shutdown of an idle port | Supported | Supported | Supported |
| D-CCAP networking | Supported | Supported | |
| 1:64 eOTDR | Supported (with FBG) | Supported (with FBG) | Supported |
| Environment | |||
| Operating temperature | -40°C to +65°C | -40°C to +65°C | -25°C to +65°C |
| Power consumption | Static: 25 W | Static: 25 W | Static: 26 W |
| Maximum: 50 W | Maximum: 50 W | Maximum: 50 W | |
XEBD XGBD XHBD GPSF EPHF XEHD EDSH
H901GPHF Board Description
The H901GPHF board is a 16-port GPON interface board. It works together with the optical network unit (ONU) to provide GPON access services.
Parameters
Board Parameter
You can query power consumption, weight, maximum frame size, and normal operating temperature of all boards.
Table 1 lists the power consumption, weight, and maximum frame size of boards.
The operating temperature of H901XSED and H901TWED is -40°C to +55°C (in MA5800–X17/X15/X7) or -40°C to +65°C (in MA5800–X2) and the lowest board startup temperature is -25°C. The operating temperature of other boards is -40°C to +65°C and the lowest board startup temperature is -25°C.
NOTE:
The power consumption of a board is calculated based on the following conditions:
Operating voltage: -53.5 V DC.
Ambient temperature: 25°C.
Static power consumption: All ports do not carry any loads and optical modules are not installed on optical ports.
Maximum power consumption: All ports fully carry loads.
The board power consumption slightly varies with the power module configured for the board and discreteness of components.
Table 1 Power consumption and maximum frame size of boards
|
Board |
Power Consumption |
Weight |
Maximum Frame Size |
|
E1 interface board |
|||
|
H901EDSH |
Static: 26 W Maximum: 28 W |
0.93 kg |
N/A |
