Quick Details
-
Insulation Material:
-
Enameled
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LP magnet wire
-
Model Number:
-
Level 180 1.5 Gauge Magnesium Aluminium Wire
-
Name:
-
Level 180 1.5 Gauge Magnesium Aluminium Wire
-
Centification:
-
SGS,UL,RoHS,ISO9001
-
Diameter:
-
Round:0.025-4.5mm;Flata:1-10,b:3-16mm;Square:a(b) 0.4-7mm
-
Standard:
-
GB,IEC,NEMA,JIS
-
Bobbin:
-
PT-4--PT-200
-
Advantages:
-
High conductivity,Good solderability,High ductility
-
Thermal Class:
-
130-220c
-
Insulation:
-
PEW, PIW, EIW, AIW, EI/AIW
-
Applications:
-
sealed motor,transformer,modern instrument,Generator,welding machine
-
Delivery time:
-
7-30 days
Quick Details
-
Application:
-
Enameled Copper Wire for motor winding
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Solid
-
Insulation Material:
-
Enameled
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LP magnet wire
-
Model Number:
-
Level 180 1.5 Gauge Magnesium Aluminium Wire
-
Name:
-
Level 180 1.5 Gauge Magnesium Aluminium Wire
-
Centification:
-
SGS,UL,RoHS,ISO9001
-
Diameter:
-
Round:0.025-4.5mm;Flata:1-10,b:3-16mm;Square:a(b) 0.4-7mm
-
Standard:
-
GB,IEC,NEMA,JIS
-
Bobbin:
-
PT-4--PT-200
-
Advantages:
-
High conductivity,Good solderability,High ductility
-
Thermal Class:
-
130-220c
-
Insulation:
-
PEW, PIW, EIW, AIW, EI/AIW
-
Applications:
-
sealed motor,transformer,modern instrument,Generator,welding machine
-
Delivery time:
-
7-30 days
Product Description
Main Application Of Magnet Wire Copper
|
Name
|

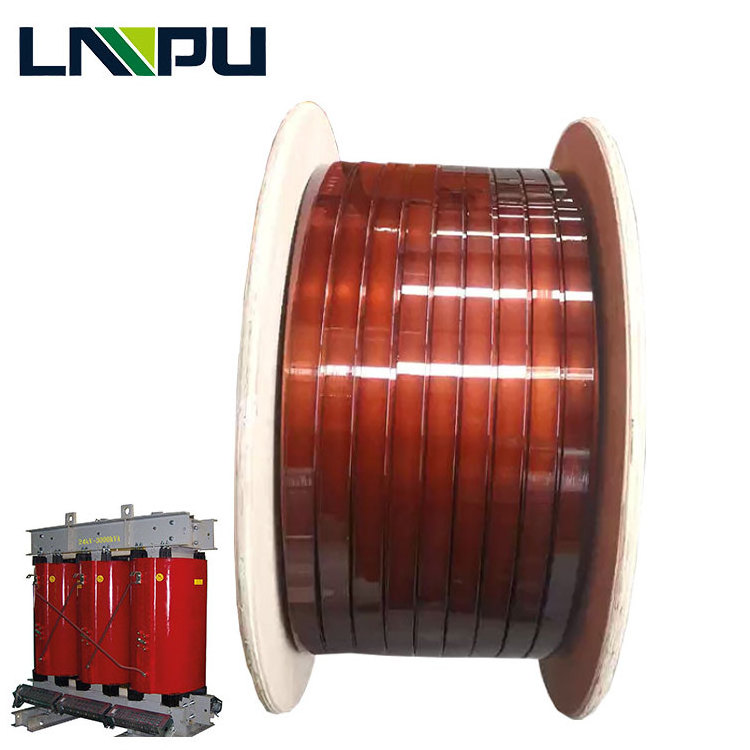

enameled rectangular wire
|
|
|
|
Dimension
|
Copper
|
Thickness(a):0.3-10.00mm;
width(b):1.0-22mm
|
|
|
|
Aluminum
|
Thickness(a):0.8-8.00mm;
width(b):2.0-22mm
|
|
|
|
We can produce the Ultra-Flat Large Size wires
|
|
|
|
Thermal Class(℃)
|
120(Class E); 180(Class H); 200(Class C); 220(Class C+); 240(Class HC)
|
|
|
|
Insulation thickness
|
G1; G2; G3; G4
|
|
|
|
Certificate
|
UL
|
|
|
|
Standard
|
IEC; NEMA; Gb; JIS
|
|
|
|
Packing
|
30kg-150kg ply-wood spool (250*400/250*500/250*600/250*730)
|
|
|
|
Application
|
Transformer; motor; generator; modern instrument; welding machine and so on
|
|
|
Main Features
1) Enameled Copper Wire is one kind of magnet wire which is consisted of bare round copper which accord with EN 13601Cu-ETP standard as the conductor and multi-layer insulation layers. The multi-layer insulation layers can be polyester, modified polyester or polyester-imide and so on.
2) Our Enameled Round Copper Wire is one kind of enameled wire which has high heat resistance. Its temperature class can be from 130℃ to 220℃.
3) Our Enameled Round Copper Wire uses TU2 oxygen-free copper as raw material.TU2 oxygen-free copper has good conductivity and heat conductivity.
Certifications
Detailed Images
Main Features
Brand
Enamel:
ELANTAS
Diameter:
Continuous production for wide-range of different sizes.
Features:
Double or Three Type Insultaions covered wires are available.
Service:
Free techincal consultation and suggestion.
Our Service
Perfect Quality Test Equipment
* A full set of product testing equipment.
* Strictly Testing.
* High quality samples for testing.
Export World-Magnet wire
* Our product are exported to more than 50 countries around the world.
* Cooperated with more than 200 overseas customers.
Packing & Delivery
Packaging Details about Double Enamel PEW Magnet Wire Coil Magnet Wire Copper for Winding Motor:
Inner packing:
winding wire with plastic spools (PT2-PT200) according to different diameters
Outer packing:
Wooden pallet and wooden case or according to customers' special requirement.
Delivery Detail:
3 days
Related Products
Exhibition
FAQ
[Q]: How about your company’s annual production capacity?
A : Our Company’s annual production is about 8,000 tons.
[Q]:What’s your company ‘s product scope?
A : We have many kinds of products ,such as enameled aluminum wire, enameled cooper wire, paper covered magnet wire, fiber glass covered magnet wire and other aluminum/cooper magnet wire products.
[Q]: What’s the temperature-resist grade of your enameled aluminum wire?
A : We produce the thermal class of enameled aluminum wire from 130 to 220 Centigrade.
[Q]: What is specifications of enameled aluminum wire your company can produce?
A : Gauge of enameled aluminum wire:
Enameled round aluminum wire: 0.2mm-8.0mm
Enameled flat aluminum wire: a: 1-6mm, b: 3-16mm
[Q]: Can you offer Round Enameled wire with PEW, C200?
A : Yes, for favorable offer, There is one problem need confirm again, PEW is for Class 155 or 180, not Class 200.
[Q]: Could you provide the free samples?
A : Yes, We could provide the free sampels within 0.5kg. You only need undertake the express charges.
[Q]: What’s the price of your enameled aluminum wire?
A : Please sent an email to our [https://magnetwire.en.alibaba.com ] or a fax to 0086-371-65861123, our salesman will reply you as soon as possible.
