Quick Details
-
Weight:
-
6000 KG
-
Marketing Type:
-
Hot Product 2023
-
Drilling Diameter:
-
95mm
-
Drilling Depth:
-
Max.650m
-
Mobility:
-
crawler drill machine
-
Product name:
-
Core Drilling Rig
-
BTW:
-
650m
-
NTW:
-
600m
-
HTW:
-
300m
-
Rotational torque(Max):
-
1800N.m
-
Rated pressure:
-
32+16Mpa
-
Cooling method:
-
Secondary air cooling + water cooling
-
Lifting force:
-
30 ton
-
Drilling angle:
-
45-90
-
Maximum climbing angle:
-
20
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
orangemech
-
Dimension(L*W*H):
-
5000*2100*2800mm
-
Weight:
-
6000 KG
-
Marketing Type:
-
Hot Product 2023
-
Drilling Diameter:
-
95mm
-
Drilling Depth:
-
Max.650m
-
Mobility:
-
crawler drill machine
-
Product name:
-
Core Drilling Rig
-
BTW:
-
650m
-
NTW:
-
600m
-
HTW:
-
300m
-
Rotational torque(Max):
-
1800N.m
-
Rated pressure:
-
32+16Mpa
-
Cooling method:
-
Secondary air cooling + water cooling
-
Lifting force:
-
30 ton
-
Drilling angle:
-
45-90
-
Maximum climbing angle:
-
20

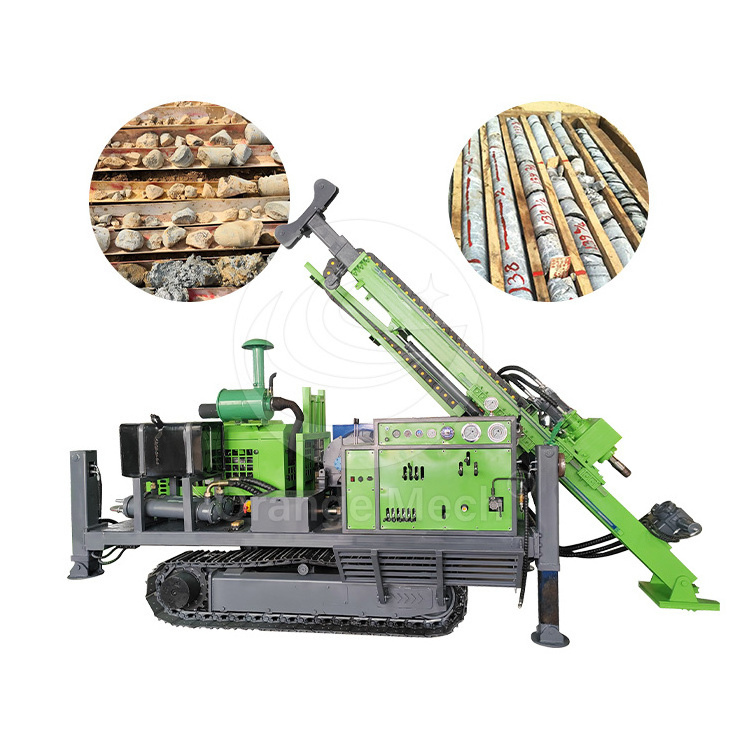

◆ Product Description
Introduction
1.
The fully hydraulic core drilling rig is a new type of drilling rig developed by our company based on the advanced technology of similar drilling rigs at home and abroad.
2.
The power head adopts a mechanical two-speed stepless speed regulation design, which doubles the torque at low speeds, making drilling stable and reliable.
3.
The power head is equipped with a lateral translation mechanism to facilitate lifting and placing drilling tools.
4.
Equipped with inclined axis piston motor drive, it has the characteristics of compact structure, small size, high power, impact resistance, long life and high torque, which greatly improves drilling efficiency.
5.
The engine adopts Yuchai/Weichai turbocharged engine. Famous brands can also be customized according to customer needs. It is fully hydraulically driven by axial piston pump + triple gear pump. It has high system pressure and strong power output.
Application
It is widely used in geological exploration, engineering geology, shallow oil, natural gas, etc. drilling, and can also be used for drilling exploration of railways, highways, bridges, water conservancy, hydropower and tunnel engineering.
Technical Parameter
|
Rig model
|
|
orangemech-JY-600
|
|
|
Drilling ability
|
BTW (m)
|
650
|
|
|
|
NTW (m)
|
600
|
|
|
|
HTW (m)
|
300
|
|
|
Hydraulic system
|
Rated pressure (Mpa)
|
32+16
|
|
|
|
Cooling method
|
Secondary air cooling + water cooling
|
|
|
|
Plunger motor
|
Ward 107
|
|
|
|
Piston pump
|
Ward 115
|
|
|
Engine parameters
|
Model
|
Cummins 93kw, 4cylinders
|
|
|
|
Rated power (Kw)
|
93
|
|
|
Mud pump
|
BW160/10
|
Three cylinders
|
|
|
Power head parameters
|
Variable box
|
Two gears
|
|
|
|
Maximum torque (N.m)
|
1800
|
|
|
|
Maximum (rpm)
|
1400
|
|
|
|
Give the course (m)
|
2
|
|
|
|
Through hole diameter (mm)
|
95
|
|
|
|
Lifting force (ton)
|
30
|
|
|
|
Propulsion (ton)
|
15
|
|
|
The rope asks for core winch parameters
|
The capacity of the rope (m)
|
1000
|
|
|
|
Lifting force (KN)
|
20
|
|
|
|
Increase speed (m/min)
|
110
|
|
|
|
Wire rope diameter (mm)
|
6
|
|
|
Mast parameters
|
Full height (m)
|
6.1
|
|
|
|
Drilling angle (°)
|
45-90
|
|
|
|
Slip stroke (mm)
|
1200
|
|
|
Gripper parameters
|
|
Through hole 130mm
|
|
|
Track parameters
|
Maximum climbing angle (°)
|
20
|
|
|
|
Maximum travel speed (km/h)
|
2
|
|
|
Shipping dimensions
|
Length * width * height (mm)
|
5000*2100*2800
|
|
|
Whole machine gross weight
|
|
6 ton
|
|
