Quick Details
-
Function:
-
Fleet Management Car Tracking Device Real Time 4g 3g Gps Gsm Tracker
-
Network:
-
4G LTE 3G WCDMA
-
Color:
-
Black
-
Tracking system:
-
Web Based PC based Platform android IOS app
-
Supplier Manufacturer:
-
GPS Supplier or Manufacturer-Shenzhen mobicom telematics co.,ltd
-
ECO driving:
-
with ECO driving from Shenzhen mobicom telematics
-
Fuel level solution:
-
Fuel Level Monitoring Rfid Reader Gps Tracker Vehicle Tracking System
Quick Details
-
Warranty:
-
24 Months
-
Place of Origin:
-
Guangdong, China
-
Model No:
-

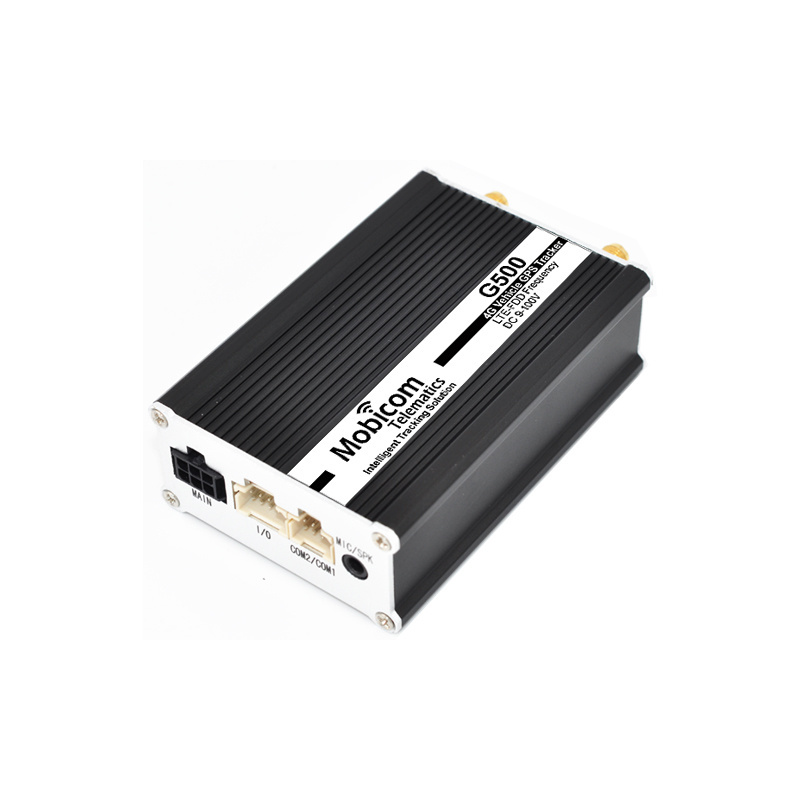

G500-4G
-
Function:
-
Fleet Management Car Tracking Device Real Time 4g 3g Gps Gsm Tracker
-
Network:
-
4G LTE 3G WCDMA
-
Color:
-
Black
-
Tracking system:
-
Web Based PC based Platform android IOS app
-
Supplier Manufacturer:
-
GPS Supplier or Manufacturer-Shenzhen mobicom telematics co.,ltd
-
ECO driving:
-
with ECO driving from Shenzhen mobicom telematics
-
Fuel level solution:
-
Fuel Level Monitoring Rfid Reader Gps Tracker Vehicle Tracking System
Best Seller
Product Description
Industry Level 4G LTE module- Quectel & Skylab Professional GPS module.
Product Functions
|
Items |
Functions |
|
Communication |
Location Data transmitting-Cellular Network(TCP/UDP) |
|
Commands- SMS/ Cellular Network/Serial port |
|
|
Position Tracking |
Real time location monitoring/querying |
|
Track by moving( time interval) |
|
|
Track by parking(time interval) |
|
|
Track by distance |
|
|
Cornering report |
|
|
GPS Mileage |
GPS Mileage report/GPS mileage coefficient adjustable |
|
Geo-fence |
25 rectangle Geo-fences |
|
Alarm(Event) |
SOS alarm (SMS/Cellular Network) |
|
Main Power supply cut off(SMS/Cellular Network) |
|
|
Ignition On report(Cellular Network) |
|
|
Over Speed alarm(Cellular Network) |
|
|
Geo-fence alarm(Cellular Network) |
|
|
Towing alarm(Cellular Network) |
|
|
Harsh Braking alarm (Cellular Network) |
|
|
Harsh Acceleration alarm(Cellular Network) |
|
|
I/O |
3 digital input (Ignition detecting, SOS button,Input3-reserved) 1 digital output- fuel pump /engine circuit cut 6 reserved digital input (Optional) |
|
Others |
2 serial port(RS232/RS232) 1-wire ® for temperature (Optional) Two-way voice communication(Optional) Listen in with microphone (Optional) 1 Pulse input(Optional) 1 Analog input(Optional) |
|
Buffer |
Data in Buffer when in Cellular Network blind area |
|
Initialization |
Initialize tracker’s Parameters via SMS/ Cellular Network /Serial port |
|
Upgrading |
upgrading firmware via OTA or Serial port |
Specifications
|
Items |
Specifications |
|||
|
Gift Box Dimension |
177*120*50mm |
|||
|
Tracker Dimension |
85*57*28 mm |
|||
|
Tracker Color |
Black |
|||
|
Weight |
Tracker weight |
0.25kg |
Total package |
0.5kg |
|
Power Supply |
DC 9V -- 100V |
|||
|
Working current |
80 mA (DC 12V) |
|||
|
Processor |
ARM7 |
|||
|
Back-up battery |
Built-in 450mAh, support 2 hour working when fully charged. |
|||
|
Operating temperature |
-40 ℃ --85℃ |
|||
|
Operating humidity |
5% -- 95% |
|||
|
LED Light indicators |
Green led and Red led light indicate GPS and Cellular Network status respectively |
|||
|
Power Switch |
1 Backup battery switch on Mainboard |
|||
|
Disassembly Detecting |
1 disassembly detecting button on Mainboard |
|||
|
I/O Ports |
3 digital inputs |
Ignition detecting –positive trigger |
||
|
SOS detecting-negative trigger |
||||
|
Input3 (Reserved)- positive trigger |
||||
|
1 digital output |
Fuel pump/engine circuit cut- Output GND (connect to a normal close relay) |
|||
|
4 digital inputs |
Reserved (Optional) 3 positive trigger ,1 negative trigger |
|||
|
3 digital outputs |
Reserved (Optional) |
|||
|
Others |
2 serial port(RS232/RS232) 1-wire ® for temperature(Optional) Two-way voice communication(Optional) Listen in with microphone(Optional) 1 Pulse input(Optional) 1 Analog input(Optional) |
|||
|
Cellular Module |
Chipset & Frequency |
QUECTEL:
WCDMA:B2/ B4/ B5
EC20-E (EMEA, Korea, Thailand, India) LTE:B1/ B3/ B5/ B7/ B8/ B20 WCDMA:B1/ B5/ B8 |
||
|
GPS Module |
Chipset |
|||
|
Positioning accuracy |
< 5m ( 95 %) |
|||
|
Cold start time |
< 23s(in average ) |
|||
|
Warm start time |
< 3 s (in average ) |
|||
|
Acquisition Sensitivity |
-148dbm |
|||
|
Acquisition channel |
66-channel |
|||
|
GPS Frequency |
1575.42 MHz |
|||
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral blank brown-paper boxes.
Q2. What is your terms of payment?
A: 1. For order quantity less than 200pcs,100% TT accepted;
2. For order quantity more than 200pcs, T/T 30% as deposit, and 70% before delivery;
3. For sample and order less than 100pcs, Trade Assurance accepted.
Q3. What is your terms of delivery?
A: EXW, CNF Shenzhen or FOB Shenzhen.
Q4. How about your delivery time?
A: Generally, it will take 2-3 days after receiving your advance payment. The mass production delivery time depends on the items and the quantity of your order, maximum 10-20 days.
Q5. Can you produce according to the samples?
A: Yes, we can produce your samples or technical drawings. We can build the moulds and working samples.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% Aging testing and data online testing before delivery.
Q8: How do you make our business long-term and a good relationship?
A:1. We will keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
