Top Quality and High Lumen LEDs
- High Efficacy CREE LEDs
- High Efficiency and Impact Resistant PC Optical Lenses
- Product Details
- {{item.text}}
Quick Details
-
Warranty(Year):
-
5-Year
-
Product Weight（kg）:
-
6.5
-
Type:
-
Aluminum Outdoor Lamp
-
Wattage:
-
80w 50w 100w 120w 150w 200w 240w
-
Lamp Luminous Flux(lm):
-
50000
-
Brand Name:
-
Weishi / OEM
-
Working Lifetime(Hour):
-
50000
-
Beam Angle(°):
-
90°
-
CRI (Ra>):
-
75
-
Lumen Output::
-
150lm/w
-
Optional Power Range:
-
50w-240w
-
Case Finishing Colour:
-
White
-
Working Humidity:
-
10% - 90%
-
Power Factor:
-
>0.95
-
Materials:
-
Aluminum and Optical lens
-
Lens Materials:
-
PC
-
Installation::
-
Ceiling Recessed/Ceiling Mounted
-
Keyword:
-
gas station roofing light
-
Product name:
-
canopy light
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
150
-
Light Source:
-
LED
-
Application:
-
Other
-
Warranty(Year):
-
5-Year
-
Product Weight（kg）:
-
6.5
-
Type:
-
Aluminum Outdoor Lamp
-
Wattage:
-
80w 50w 100w 120w 150w 200w 240w
-
Lamp Luminous Flux(lm):
-
50000
-
Brand Name:
-
Weishi / OEM
-
Working Lifetime(Hour):
-
50000
-
Beam Angle(°):
-
90°
-
CRI (Ra>):
-
75
-
Lumen Output::
-
150lm/w
-
Optional Power Range:
-
50w-240w
-
Case Finishing Colour:
-
White
-
Working Humidity:
-
10% - 90%
-
Power Factor:
-
>0.95
-
Materials:
-
Aluminum and Optical lens
-
Lens Materials:
-
PC
-
Installation::
-
Ceiling Recessed/Ceiling Mounted
-
Keyword:
-
gas station roofing light
-
Product name:
-
canopy light
PRODUCT INTRODUCTION

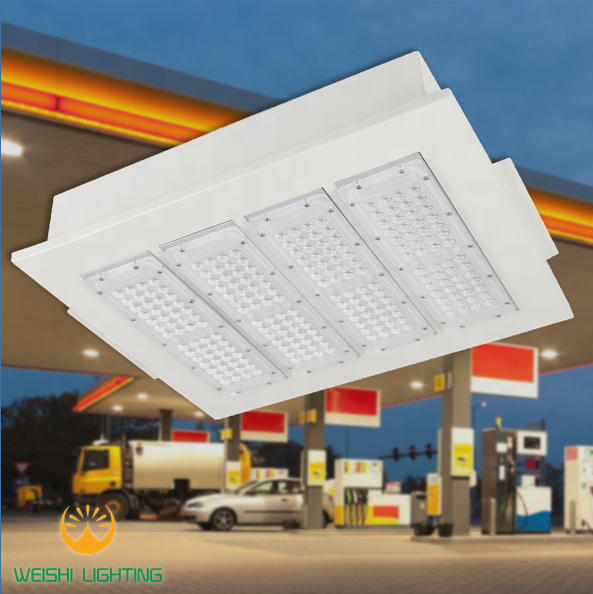

Weishi LED Canopy Lights can be used for patrol stations, and outdoor canopy ceilings.
It has high lumen efficacy with 160lm/W LEDs. With high quality Meanwell LED drivers and IP67 waterproof modules and connection, the protection grade is IP66, can be widely used for all types of outdoor environments.
MODEL SERIES
FEATURES
Air Ventilation Design for Lower Temperature
Air ventilation to create air flow to reduce the temperature of the lamp. It enables a lower working temperature and longer life of the LEDs and drivers
IP66 Waterproof LED Modules
- High thickness aluminum for anti-corrosion
- Waterproof sealing for IP66 protection
- IP67 cables and connectors
Modular Heat Sink
- Modular heat sinks with gaps for a lower temperature
- Enabling a wide power range from 50W upto 300W
High Quality LED Driver
- High quality LED drivers for a long working life and low maintenance cost
- IP67 waterproof for a rough environment protection
- Comply to all types of international safety and quality standard
Top Standard Cable and IP67 Conectors
- VDE Standard Rubber Sheathed Cable
-
IP67 Waterproof
Connection
Multi Installation Brackets
- One bracket type enables for 2 installation purposes (ceiling recessed or ceiling mounted)
Optimized Light Distribution Lens
- Professional optical design for the best lighting performance, lower light lose and higher light efficiency
- Higher ground lux to create a brighter environment
SPECIFICATIONS
LED Type: CREE High Lumen LEDs
LED Efficacy: >160lm/W
CCT Options: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI: ≥75Ra
LED Life: >125,000hrs
Beam Angle: 30°/ 60°/90 °/Type I/Type III
PF: >0.97
Power Supply Efficiency: >92%
THDi: ≤10%
Surge Protection: 6KV
Control: 0-10V Dimming Optional
Material: Aluminum and PC Optical Lenses
Color / Finish: Matt White
Protection Grade: IP66
CCT Options: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI: ≥75Ra
LED Life: >125,000hrs
Beam Angle: 30°/ 60°/90 °/Type I/Type III
PF: >0.97
Power Supply Efficiency: >92%
THDi: ≤10%
Surge Protection: 6KV
Control: 0-10V Dimming Optional
Material: Aluminum and PC Optical Lenses
Color / Finish: Matt White
Protection Grade: IP66
|
MODEL NO.
|
WSCPM-2
|
WSCPM-3
|
WSCPM-4
|
WSCPM-5
|
WSCPM-6
|
||||
|
POWER
|
100W
|
150W
|
200W
|
240W
|
300W
|
||||
|
MODULE QTY
|
2 MODULES
|
3 MODULES
|
4 MODULES
|
5 MODULES
|
6 MODULES
|
||||
|
INPUT VOLTAGE
|
100 - 305V AC
|
|
|
|
|
||||
|
LEDs
|
CREE or Lumileds 3030 LEDs (>160lm/W / >190lm/W)
|
|
|
|
|
||||
|
LED QTY
|
128pcs
|
192pcs
|
256pcs
|
320pcs
|
384pcs
|
||||
|
DIMENSIONS(mm)
|
280*350*115
|
366*350*115
|
452*350*115
|
538*350*115
|
624*350*115
|
||||
|
NET WEIGHT(kg)
|
4.7
|
5.8
|
6.9
|
8.0
|
9.2
|
||||
LIGHT DISTRIBUTION
PRODUCT PICTURES
APPLICATIONS
The LED canopy light can be widely used for all types of outdoor environments with ceilings, such as petrol stations, garages, factories, warehouses, production lines, building exterior areas, stadiums, exhibition halls and etc.
