Classification by material: copper mesh/red copper mesh, phosphor copper mesh (copper-tin alloy), brass mesh (copper-zinc alloy) or other copper alloys.
Features: non-magnetic, wear-resistant, good ductility, can shield electronic, electromagnetic and other signals or sieve and filter various gases, liquids, solids, etc.
Specifications: The common copper wire woven mesh is 1-400 mesh/inch. If it is made into a copper wire mat type mesh, the mesh number can be higher and the mesh hole is smaller; in addition, there are many specifications of copper plate mesh.
Width: 0.02-1.5 m, the maximum width is 8 meters.
Processing method: copper wire weaving (plain weave, twill weave, mat type dense weave, etc.), or copper plate mesh punched into copper plate mesh. It can also be made into the shape of net cylinder, net cover, net sleeve and so on.
Copper mesh use:
(1) Screening and filtering various gases, liquids, solids, etc.
(2) Radiation protection of special facilities such as special cable circuits, laboratories, and computer rooms;
(3) Electromagnetic interference prevention for electronic equipment, power sector, aerospace, information industry, military facilities, etc.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
32mm
-
Processing Service:
-
Woven, woven
-
Product name:
-
Brass Wire Mesh 6 - 200 Mesh Plain Woven Wire Cloth Screen Fabric Mesh
-
Color:
-
Red
-
Usage:
-
Faraday Cage Screen Emf Shielding
-
Feature:
-
Wear-resisting
-
Width:
-
32mm
-
Mesh:
-
12 mesh
-
wire diameter:
-
0.4 mm
-
Hole:
-
1.58mm
-
Length:
-
100 meters
Quick Details
-
Material:
-
Brass Wire
-
Place of Origin:
-
HEB
-
Brand Name:
-
R&K
-
Model Number:
-
32mm
-
Processing Service:
-
Woven, woven
-
Product name:
-
Brass Wire Mesh 6 - 200 Mesh Plain Woven Wire Cloth Screen Fabric Mesh
-
Color:
-
Red
-
Usage:
-
Faraday Cage Screen Emf Shielding
-
Feature:
-
Wear-resisting
-
Width:
-
32mm
-
Mesh:
-
12 mesh
-
wire diameter:
-
0.4 mm
-
Hole:
-
1.58mm
-
Length:
-
100 meters

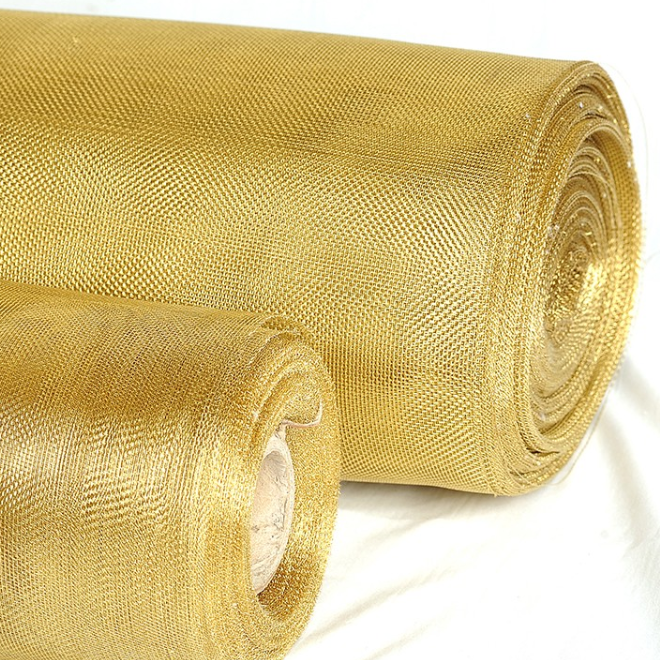

Product Description
|
Product Name
|
Brass Wire Mesh 6 - 200 Mesh Plain Woven Wire Cloth Screen Fabric Mesh
|
|
Keywords
|
copper mesh fabric，brass wire mesh,copper wire mesh
|
|
Width
|
customized
|
|
type
|
plain weave
|
|
material
|
brass wire mesh
|
|
Application
|
sieving,
Filtration ,Printing,Paper making,Decoration,RFI shielding
|
|
Wire Diameter
|
customized
|
|
Length
|
100 meter
|
Material:Brass wire, red copper wire, phosphor bronze wire, tinned copper wire
Mesh Count:
Brass wire mesh:2-250 mesh;
Red copper wire mesh:2-250mesh;
Phosphor bronze wire mesh:2-350mesh;
Tinned copper wire mesh:2-100mesh
Woven Type:Plain weave or twill weave
Characteristics:Good conductivity, heat-transfer properties, non-magnetic,
corrosion resistant, low ductility and wear resistant.
Application:Used in electromagnetic shielding, screening of various granular
powder, porcelain clay, glass, chinaware printing, gas and liquid filtering etc.
Mesh Count:
Brass wire mesh:2-250 mesh;
Red copper wire mesh:2-250mesh;
Phosphor bronze wire mesh:2-350mesh;
Tinned copper wire mesh:2-100mesh
Woven Type:Plain weave or twill weave
Characteristics:Good conductivity, heat-transfer properties, non-magnetic,
corrosion resistant, low ductility and wear resistant.
Application:Used in electromagnetic shielding, screening of various granular
powder, porcelain clay, glass, chinaware printing, gas and liquid filtering etc.
Copper mesh material classification
|
item
|
value
|
|
Main Material
|
270 Yellow Brass (65% copper + 35% zinc)
260 High Brass (70% copper + 30% zinc)
Red Brass(80% copper + 20% zinc)
|
|
Wire Diameter Range
|
0.03 mm-0.70 mm
|
|
Mesh Size Range
|
Plain Weave: 6– 160 mesh,
Twill Weave: Up to 280 mesh,
Dutch Weave:customized
|
|
Width Range
|
Usually, 0.914-3 m, can be cut according to customer requirements, the minimum is 3 mm
|
|
Length Range
|
30 -150 meters
|
|
Place of Origin
|
HEB
|
|
Brand Name
|
R&K
|
|
Material
|
Brass Wire
|
|
Application
|
Filter
|
|
Type
|
woven
|
|
Processing Service
|
Woven, woven
|
|
Delivery Time
|
22-30 days
|
|
Product name
|
Square Material Copper Wire Cloth Mesh Crimped Woven Brass Wire Mesh
|
|
Material
|
65% copper + 35% zinc
|
|
Color
|
Yellow
|
|
Usage
|
Faraday Cage Screen Emf Shielding
|
|
Feature
|
Wear-resisting
|
Specification
Brass Wire Mesh
Base Materials: 270 Yellow Brass (65% Copper + 35% Zinc), 260 High Brass (70%
Copper + 30% Zinc), Red Brass (80% Copper + 20% Zinc).
Wire diameter
: 0.03-0.70 mm.
Weave Style : Plain weave, Twill weave, Dutch Weave
Mesh count:
6–280 mesh
Width : usually 0.914-3 m, can be cut according to customer requirements,
The minimum value is 3 mm.
Length : typically 30 m, up to 150 m.
Length : generally 30m/roll, and can also be cut into various shapes as needed.
Features and applications
The zinc in the brass mesh plays an important role. It is precisely because of the addition of zinc that the brass mesh is more wear-resistant, so that the tensile strength of the brass mesh is higher. It also stiffens the mesh to its softer copper woven wire mesh counterpart. So brass wire mesh is usually used for filtration and separation. Typically, industrial-grade brass woven wire mesh has a golden yellow color, a unique color that makes it attractive in architectural, decorative, and even artistic applications. Like almost all wire mesh and wire cloth, brass wire mesh can also be used in architectural, decorative and industrial applications.
Copper Wire Mesh
Brass is one of the copper alloys made of copper and zinc. Like copper wire mesh, brass wire mesh is soft and malleable. But its corrosion resistance is not as good as bronze. As a wire mesh, the most common brass braided wire mesh is called "270 brass" and its chemical composition is about 65% copper, 35% zinc. "260 High Brass" consisting of 70% copper and 30% zinc is also popular in the wire mesh industry, especially on custom products.
