PVC,TPU PU leather, EVA, Foam shoes insole pad, footwear upper,
trademarks, raincoat, stickers,
PVC stretch ceiling,
PVC umbrella, PVC bag, leather bag, handbag, beach
bag, stationery, nameplate, inflatable toys, waterbed, Double PVC/PET blister package,
PVC,PETG,GAG box die, urine bag, blood bag and other medical bag, etc.
- Product Details
- {{item.text}}

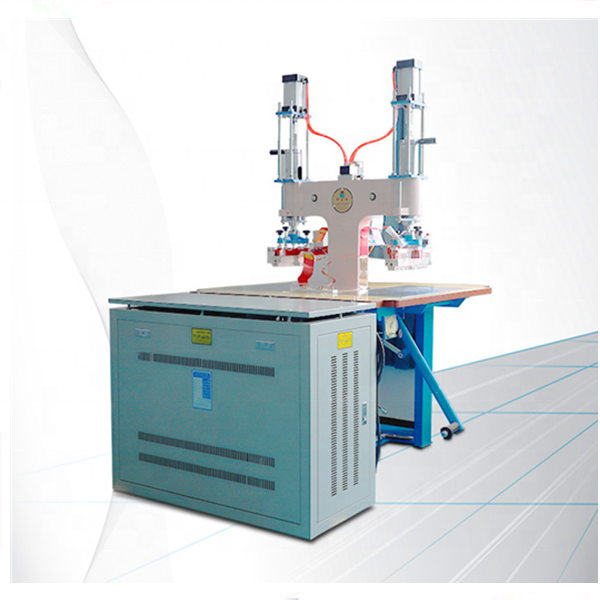

Quick Details
-
Frequency:
-
27.12MHZ (hf welding machine)
-
Welding Area:
-
350mm*700mm (hf welding machine)
-
Dimensions:
-
2000(mm)*1220(mm)*1710(mm)
-
Use:
-
PVC,PET,EVA,PU,TPU welding and embossing
-
Weight (KG):
-
600 KG
-
Power (kW):
-
8
-
Machine:
-
High Frequency Welding Machine
-
Operation:
-
Pneumatic+pedal (high frequency welding machine)
-
Device:
-
Safety Device (high frequency welding machine)
-
Brand name:
-
JingYi (high frequency welding machine)
-
Color:
-
Customer's Requirement
-
For Installation and Operation:
-
Provided Freely (high frequency welding machine)
-
For Spare Parts:
-
Set (high frequency welding machine)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jing Yi (hf welding machine)
-
Voltage:
-
AC220/380/400/415/440V 3PHASE
-
Frequency:
-
27.12MHZ (hf welding machine)
-
Welding Area:
-
350mm*700mm (hf welding machine)
-
Dimensions:
-
2000(mm)*1220(mm)*1710(mm)
-
Use:
-
PVC,PET,EVA,PU,TPU welding and embossing
-
Weight (KG):
-
600 KG
-
Power (kW):
-
8
-
Machine:
-
High Frequency Welding Machine
-
Operation:
-
Pneumatic+pedal (high frequency welding machine)
-
Device:
-
Safety Device (high frequency welding machine)
-
Brand name:
-
JingYi (high frequency welding machine)
-
Color:
-
Customer's Requirement
-
For Installation and Operation:
-
Provided Freely (high frequency welding machine)
-
For Spare Parts:
-
Set (high frequency welding machine)
Machine Feature
1. Anti-spark electric system
When the spark occurring, the high sensitiveness spark electric system will cut the high frequency power immediately to protect the mould and material.
2. Jamming Prevention Device
Equipped with high frequency stabilizer and magnetic leakage suppressor, this device can prevent the leakage of electromagnetic radiation to avoid other electrical instruments jamming such as televisions and radios, etc.
3. Safety Device
When the current over its limit, the overload relay works automatically to protect the oscillation tubes and rectifier. The
frequency deviation caused by mistake is avoided.
4.The Special Mechanical Structure
With a excellent design and structure, the machine can works precisely and intensively.
5.Easy Tuning And Special Protection Circuit
The selectable output power can ensure the stable quality of the product. While the welding process, it could largely reduce the heating time.
6.Pneumatic Pressure Device
It is provided pneumatic pressurizing device, which can adjust the pressure in the practical situation, greatly decrease the
operation difficulty and impaction equipments, changing the controlling method may modify the high-frequency process technology.
When the spark occurring, the high sensitiveness spark electric system will cut the high frequency power immediately to protect the mould and material.
2. Jamming Prevention Device
Equipped with high frequency stabilizer and magnetic leakage suppressor, this device can prevent the leakage of electromagnetic radiation to avoid other electrical instruments jamming such as televisions and radios, etc.
3. Safety Device
When the current over its limit, the overload relay works automatically to protect the oscillation tubes and rectifier. The
frequency deviation caused by mistake is avoided.
4.The Special Mechanical Structure
With a excellent design and structure, the machine can works precisely and intensively.
5.Easy Tuning And Special Protection Circuit
The selectable output power can ensure the stable quality of the product. While the welding process, it could largely reduce the heating time.
6.Pneumatic Pressure Device
It is provided pneumatic pressurizing device, which can adjust the pressure in the practical situation, greatly decrease the
operation difficulty and impaction equipments, changing the controlling method may modify the high-frequency process technology.
Specification
|
Model
|
JY4000TQ
|
JY5000TQ
|
JY8000TQ
|
||
|
Output Power
|
4KW
|
5KW
|
8KW
|
||
|
Voltage
|
AC220/380/400/415/440V 3 Phase (Customized)
|
|
|
||
|
Input Power
|
6.5KVA
|
8.5KVA
|
15KVA
|
||
|
Oscillation Frequency
|
40.68MHz
|
27.12MHz
|
27.12MHz
|
||
|
Oscillation Tube
|
E3062E
|
7T85RB
|
7T69RB
|
||
|
Max Pressure
|
200kg
|
300kg
|
500kg
|
||
|
Gap Of Electrodes
|
80mm
|
80mm
|
80mm
|
||
|
Working Space
|
60mm
|
60mm
|
60mm
|
||
|
Size Of Lower Electrode
|
350*700 mm
|
350*700mm
|
350*700mm
|
||
|
Packing Size
|
1740*1180*1680mm
|
1740*1180*1680mm
|
1740*1180*1680mm
|
||
|
Machine Weight
|
410kg
|
440kg
|
650kg
|
||
Application
Machine Configuration
Oscillation Tube
Good quality Oscillation Tank
5557 Anti-sparking system
Interantional Standard Strong Plywoodcase
