Quick Details
-
Rolling thinckness:
-
0.3-0.8 mm
-
Place of Origin:
-
Tianjin, China
-
Voltage:
-
380V 50HZ 3P or Customize as customer
-
Dimension(L*W*H):
-
4.5*0.8*1 m
-
Weight:
-
1500 kg
-
Feeding width:
-
As customer need product drawing
-
Marketing Type:
-
Hot sell product 2021
-
Material type:
-
galvanized steel
-
Export port:
-
Tianjin port
-
Need container:
-
1*20 feet
-
Machine color:
-
As customer' need
-
Control box language:
-
As customer' need
-
Machine cutter material:
-
Cr 12
-
Roller material:
-
Cr 12
-
Length and piece measure:
-
by counter
-
Control system:
-
PLC(detla) System
Quick Details
-
Type:
-
Roll forming machine
-
Tile Type:
-
Galvanized Steel
-
Production Capacity:
-
30-50 m/min
-
Rolling thinckness:
-
0.3-0.8 mm
-
Place of Origin:
-
Tianjin, China
-
Voltage:
-
380V 50HZ 3P or Customize as customer
-
Dimension(L*W*H):
-
4.5*0.8*1 m
-
Weight:
-
1500 kg
-
Feeding width:
-
As customer need product drawing
-
Marketing Type:
-
Hot sell product 2021
-
Material type:
-
galvanized steel
-
Export port:
-
Tianjin port
-
Need container:
-
1*20 feet
-
Machine color:
-
As customer' need
-
Control box language:
-
As customer' need
-
Machine cutter material:
-
Cr 12
-
Roller material:
-
Cr 12
-
Length and piece measure:
-
by counter
-
Control system:
-
PLC(detla) System

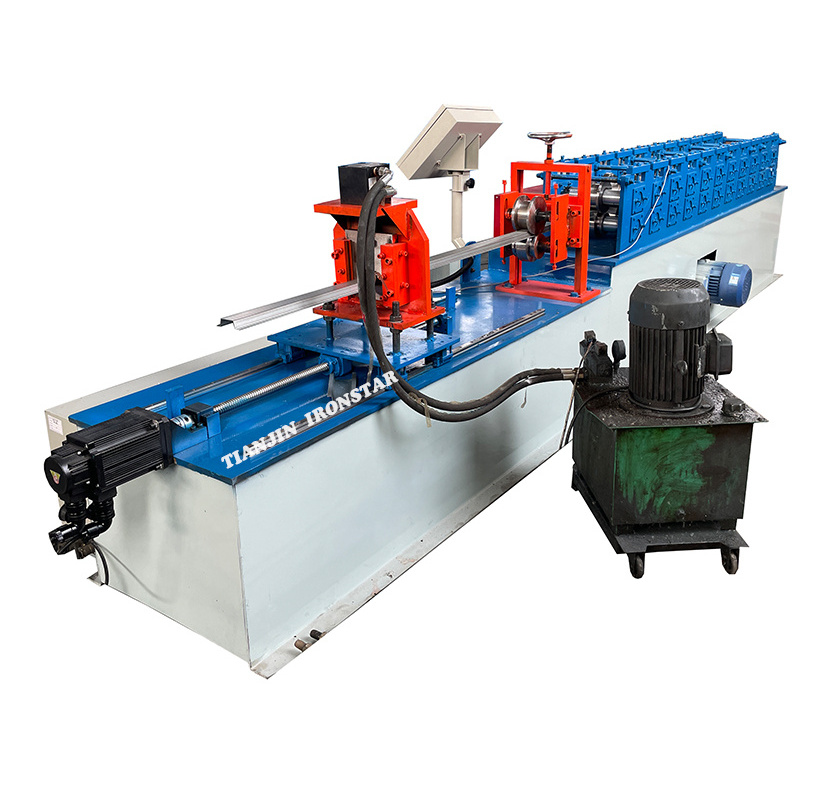

Omega profile roll forming machine | Omega channel roll forming machine | Omega channel roll forming machine | Top hat roll forming machine
Omega profile roll forming machine popular sell in many countries. Product thickness common between 0.3-0.6 mm, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
Working flow
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
| Part details | Item Name | Specification |
| Material | Raw material | Galvanized steel |
| Thickness | 0.3-0.8 mm | |
| Machine | Roller station | 10 |
| Shaft diameter | 55 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | Cr 12 | |
| Machine size | About 4.2×0.8×1 m | |
| Machine weight | About 1.5 ton | |
| Machine color | As customer' request | |
| Working speed | 30-50 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Main power | 4 kw | |
| Pump power | 3 kw | |
| Voltage |
380v/50HZ,3P or customize as customer' request |
|
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Operation | Manual |
| Weight capicatity | 3 ton | |
| Price | Free as gift | |
| Receiving table | Operation | Manual |
| Length | 3 m | |
| Price | Free as gift |
Details Images
If u want to see the machine working video, please contact with Miaomiao with any way below
