Quick Details
-
Blade Length (mm):
-
1500 mm
-
Backgauge Travel (mm):
-
10 - 550 mm
-
Throat Depth (mm):
-
150 mm
-
Brand Name:
-
WOKE
-
Power (kW):
-
4 kW
-
Weight (KG):
-
2600 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
2500X1700X1650mm
-
Marketing Type:
-
Hot Product 2024
-
Application:
-
Metal Sheet Cutting
-
Keyword:
-
guillotine shear
-
Control system:
-
Estun E21S NC Control
-
BLADE:
-
9CrSi or 6CrW2Si
-
CNC or not:
-
Nomal
-
Stroke Times:
-
8-14 Times/min
-
Electrical components:
-
Schneider France Brand
-
Main Motor:
-
SLEMENS
-
Back gauge motor:
-
Converter
-
Name:
-

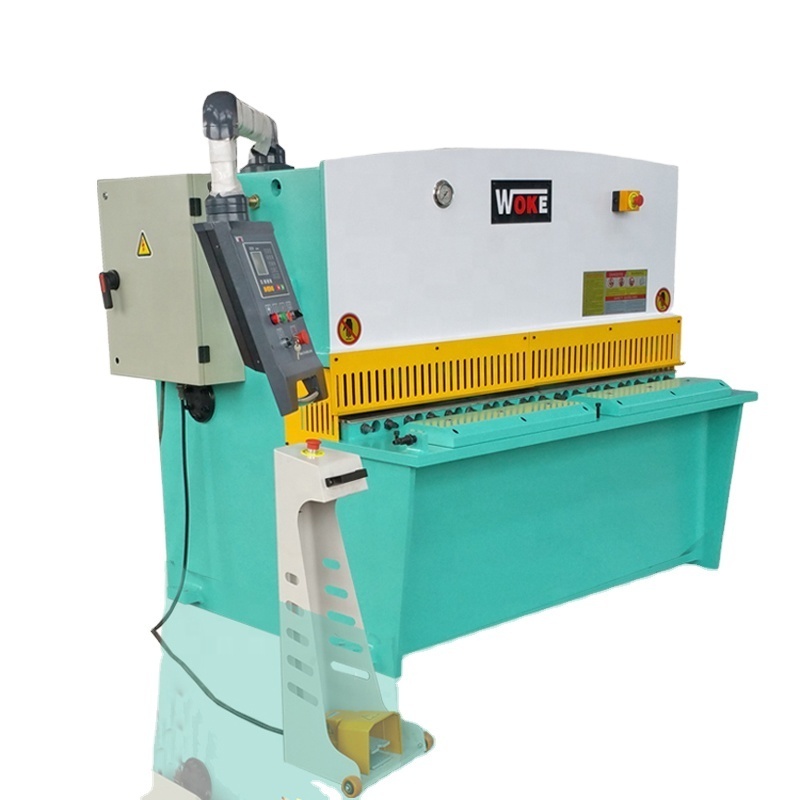

E21S Swing Beam Shearing Machine
Quick Details
-
Max. Cutting Width (mm):
-
1500 mm
-
Max. Cutting Thickness (mm):
-
4 mm
-
Shearing Angle:
-
1.5 degree
-
Blade Length (mm):
-
1500 mm
-
Backgauge Travel (mm):
-
10 - 550 mm
-
Throat Depth (mm):
-
150 mm
-
Brand Name:
-
WOKE
-
Power (kW):
-
4 kW
-
Weight (KG):
-
2600 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
2500X1700X1650mm
-
Marketing Type:
-
Hot Product 2024
-
Application:
-
Metal Sheet Cutting
-
Keyword:
-
guillotine shear
-
Control system:
-
Estun E21S NC Control
-
BLADE:
-
9CrSi or 6CrW2Si
-
CNC or not:
-
Nomal
-
Stroke Times:
-
8-14 Times/min
-
Electrical components:
-
Schneider France Brand
-
Main Motor:
-
SLEMENS
-
Back gauge motor:
-
Converter
-
Name:
-
E21S Swing Beam Shearing Machine
Hydraulic shearing machine, metal guillotine cutting machine, up to 40mm
https://youtu.be/rULIQr025T8
| Model |
Max. Cutting thickness mm |
Max.Cutting Length mm |
Cutting Angle |
Back Gauge Range mm |
Motor kw |
Dimension mm |
| 4x2500 | 4 | 2500 | 1°30′ | 20-600 | 4 | 3100x1600x1550 |
| 4x3200 | 4 | 2000 | 1 °30 ′ | 20-600 | 4 | 3800x1700x1650 |
| 4x4000 | 4 | 4000 | 1 °30 ′ | 20-600 | 5.5 | 4650x1900x1750 |
| 6x1500 | 6 | 1500 | 1 °30 ′ | 20-600 | 7.5 | 2000x1760x1650 |
| 6x2500 | 6 | 2500 | 1 °30 ′ | 20-600 | 7.5 | 3100x1650x1650 |
| 6x3200 | 6 | 3200 | 1 °30 ′ | 20-600 | 7.5 | 3800x1750x1650 |
| 6x4000 | 6 | 4000 | 1 °30 ′ | 20-600 | 7.5 | 4650x1850x1750 |
| 8x2500 | 8 | 2500 | 1 °30 ′ | 20-600 | 11 | 3100x1750x1700 |
| 8x3200 | 8 | 3200 | 1 °30 ′ | 20-600 | 11 | 3800x1850x1750 |
| 8x4000 | 8 | 4000 | 1 °30 ′ | 20-600 | 11 | 4600x1900x1800 |
| 10x1500 | 10 | 1500 | 1 °30 ′ | 20-600 | 11 | 2100x1860x1800 |
| 10x2500 | 10 | 2500 | 1 °30 ′ | 20-600 | 11 | 3100x1750x1700 |
| 10x3200 | 10 | 3200 | 1 °30 ′ | 20-600 | 11 | 3800x1850x1750 |
| 10x4000 | 10 | 4000 | 1 °30 ′ | 20-600 | 11 | 4600x1900x1800 |
| 12x1500 | 12 | 1500 | 1 °30 ′ | 20-600 | 15 | 2200x2000x1850 |
| 12x2500 | 12 | 2500 | 1 °30 ′ | 20-600 | 15 | 3200x2000x1850 |
| 12x3200 | 12 | 3200 | 1 °30 ′ | 20-600 | 22 | 3800x2150x2000 |
