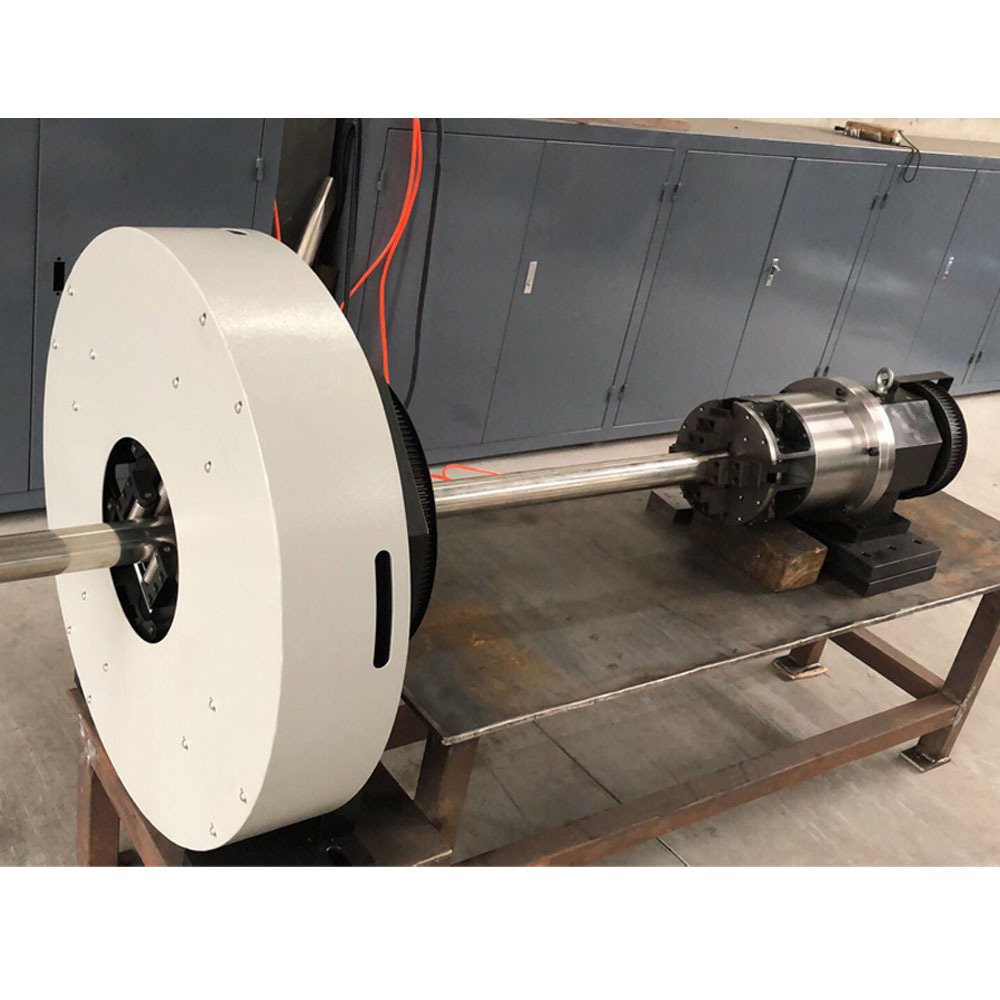

Pneumatic dual-acting full travel rotary chuck for cutting tubes
More suitable for fiber laser tube cutting machine. It can clamp round tube, square tube, oval tube, rectangle tube and special tube.
Pneumatic dual-acting full travel rotary cutting chuck works together with p neumatic dual-acting big travel rotary feeding chuck. The weight is light, the cutting is quick, and tailing material is short. High efficiency, high speed and energy saving.
Pneumatic dual-acting full travel rotary chuck for cutting tubes
| Model Number |
Outer Dia
D |
Through Hole
d |
Base Total Thick
M |
Gear Outer Dia
D1 |
Gear Thick
H |
Distance Between Holes in Base B-L |
Base Length and Width
A-F |
Center Height
C |
Gear Module No
Z |
| 700 | 700 | 230 | 272.5 | 484 | 30 | 440-120 | 510-210 | 385 | 2 |
| Model Number |
Total Height and Width
K-E |
Fix Holes
Z-d |
Jaw Stroke Dia | Allowable Pressure (Mpa) |
Max Clamp Force
(kg) |
Max Rotional Speed (r/min) | Max Clamp Dia | Net Weight (kg) | |
| 700 | 617.5-465 | 4-Φ20 | 10-230 | 0.5-1.2 | 400 | 500 | 230 | 270 |
P neumatic dual-acting big travel rotary feeding chuck
| Model Number |
Outer Dia
D |
Base Total Thick
M |
Gear Outer Dia
D1 |
Gear Thick
H |
Distance Between Holes in Base B-L |
Base Length and Width
A-F |
Center Height
C |
Gear Module No
Z |
| 200 | 205 | 726 | 244 | 30 | 170-110 | 196-150 | 135 | 2 |
| Model Number |
Total Height and Width
K-E |
Fix Holes
Z-d |
Jaw Stroke Dia | Allowable Pressure (Mpa) |
Max Clamp Force
(kg) |
Max Rotional Speed (r/min) | Max Clamp Dia | Net Weight (kg) |
| 200 | 233-196 | 4-Φ13 | 20-220 | 0.5-1.2 | 400 | 1800 | 200 | 95 |
