Quick Details
-
Boom Length Support:
-
3m
-
Operating Temperature:
-
-20°C~+60°C
-
Power Supply:
-
110V AC or 220V AC
-
Boom Material:
-
Aluminum Alloy
-
Frequency:
-
50-60Hz
-
Power Consumption:
-
120W
-
Case Material:
-
Powder coated steel
-
Packing Dimensions:
-
460(D)*420(W)*1150(H)mm
-
Gross Weight:
-
70kg
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
VANSHUI
-
Boom Type:
-
90°Folding Boom
-
Boom Length Support:
-
3m
-
Operating Temperature:
-
-20°C~+60°C
-
Power Supply:
-
110V AC or 220V AC
-
Boom Material:
-
Aluminum Alloy
-
Frequency:
-
50-60Hz
-
Power Consumption:
-
120W
-
Case Material:
-
Powder coated steel
-
Packing Dimensions:
-
460(D)*420(W)*1150(H)mm
-
Gross Weight:
-
70kg

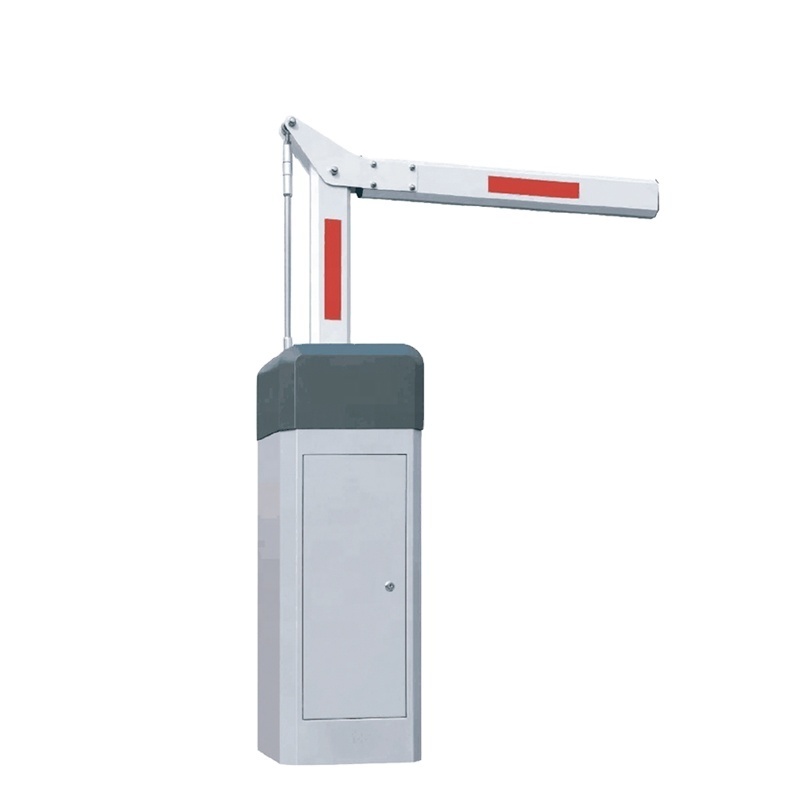

90 Degree Fold Boom Parking Lot Barrier Gate Used For Parking System
Parking barrier adopts die-casting aluminum alloy motor and extraordinary structural design, it offers not only a long-life cycle, high reliability and quality, but also reduces the difficulty of equipment maintenance, it is an ideal choice for vehicle entrance control management.
1) Support external infrared radiation and vehicle loop detector for anti-crash function
2) Die-casting aluminum alloy motor with double strong springs makes the operation more stable
3) Wheel manual release in case of power cut, rotate the wheel manual release on the bottom of the motor to raise the boom manually
4) The housing with modularized design is made of powder coated steel which offers best protection against corrosion
5) Built-in cooling fan, solving the problem of heat-protection, operating temperature of motor ranged from -40 ℃ to 140 ℃
|
Model |
PB4130L/PB4130R |
|
Boom Type |
|
|
Boom Length |
3 meters |
|
Opening/Closing Time |
3S |
|
Supply Voltage |
110V AC or 220V AC |
|
Power Consumption |
120W |
|
Frequency |
50-60Hz |
|
Cabinet Material |
Powder Coated Steel |
|
Boom Material |
Aluminum Alloy |
|
Working Temperature Range |
-20 ℃ to 60 ℃ |
|
Working Humidity Range |
≤90% |
|
Housing Dimensions |
328(D)*286(W)*934(H)mm |
|
Packing Dimensions |
460(D)*420(W)*1150(H)mm |
|
Net Weight |
60kg |
|
Gross Weight |
70kg |
