Quick Details
-
Shade Shape:
-
cylindrical
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Intellibond
-
Model Number:
-
HMWD10-HB-VB
-
Color Temperature(CCT):
-
4000K, 5000K or 6500K, default available in 5000K
-
Input Voltage(V):
-
EU/CN version: 200-240 Vac US version: 100-277Vac
-
Lamp Luminous Flux(lm):
-
15000lm
-
Working Temperature(℃):
-
-30 - 50
-
Lifespan (hours):
-
>50000
-
PCs/ Ctn:
-
1
-
Packing Dimension:
-
1230*D34mm
-
Product Dimension:
-
1200*D32mm
-
Product Weight（kg）:
-
0.4
-
LED Type:
-
Lumileds
-
Type of Driver:
-
Non-isolated
-
Power Factor:
-
≥0.95
-
Driver efficiency:
-
94%
-
Inrush Current:
-
12A
-
Operation Temperature:
-
-30°C to 50°C
-
IP rating:
-
IP65
-
Surge Protection:
-
4KV
-
Structure Material:
-
Die casting ADC12
Quick Details
-
Lamp Body Material:
-
Polycarbonate
-
Design Style:
-
Modern
-
Shade material:
-
AL + PC
-
Shade Shape:
-
cylindrical
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Intellibond
-
Model Number:
-
HMWD10-HB-VB
-
Color Temperature(CCT):
-
4000K, 5000K or 6500K, default available in 5000K
-
Input Voltage(V):
-
EU/CN version: 200-240 Vac US version: 100-277Vac
-
Lamp Luminous Flux(lm):
-
15000lm
-
Working Temperature(℃):
-
-30 - 50
-
Lifespan (hours):
-
>50000
-
PCs/ Ctn:
-
1
-
Packing Dimension:
-
1230*D34mm
-
Product Dimension:
-
1200*D32mm
-
Product Weight（kg）:
-
0.4
-
LED Type:
-
Lumileds
-
Type of Driver:
-
Non-isolated
-
Power Factor:
-
≥0.95
-
Driver efficiency:
-
94%
-
Inrush Current:
-
12A
-
Operation Temperature:
-
-30°C to 50°C
-
IP rating:
-
IP65
-
Surge Protection:
-
4KV
-
Structure Material:
-
Die casting ADC12
Products Description
|
Model
|
HMWD10-HB-VA-XXX
-50K-100W-A90-XX-XX
|
HMWD10-HB-VA-XXX
-50K-150W-A90-XX-XX
|
HMWD10-HB-VA-XXX
-50K-200W-A90-XX-XX
|
||
|
LED Type
|
Lumileds
|
|
|
||
|
Power
|
100W, 150W and 200W
|
|
|
||
|
Light efficiency
|
130lm/W, 150lm/W, 190lm/W
|
|
|
||
|
Input voltage
|
200~240 Vac (US version: 100-277Vac)
|
|
|
||
|
Inrush current
|
12A
|
|
|
||
|
Input Frequency
|
50/60 Hz
|
|
|
||
|
Power Factor
|
>0.95
|
|
|
||
|
THD
|
<10
|
|
|
||
|
Intelligent Control
|
ZigBee / Dimming / Infrared Daylight Sensor / PIR Sensor or Microwave Motion Sensor
|
|
|
||
|
Structure Material
|
Die casting ADC12
|
Finish Material
|
Powder coated
|
||
|
Lens Material
|
Polycarbonate
|
Fixture Color
|
Matte Black
|
||
|
Warranty
|
5 years
|
|
|
||
|
Mouting Option
|
Suspending / Ceiling Mounting/ Wall Mounting
|
|
|
||

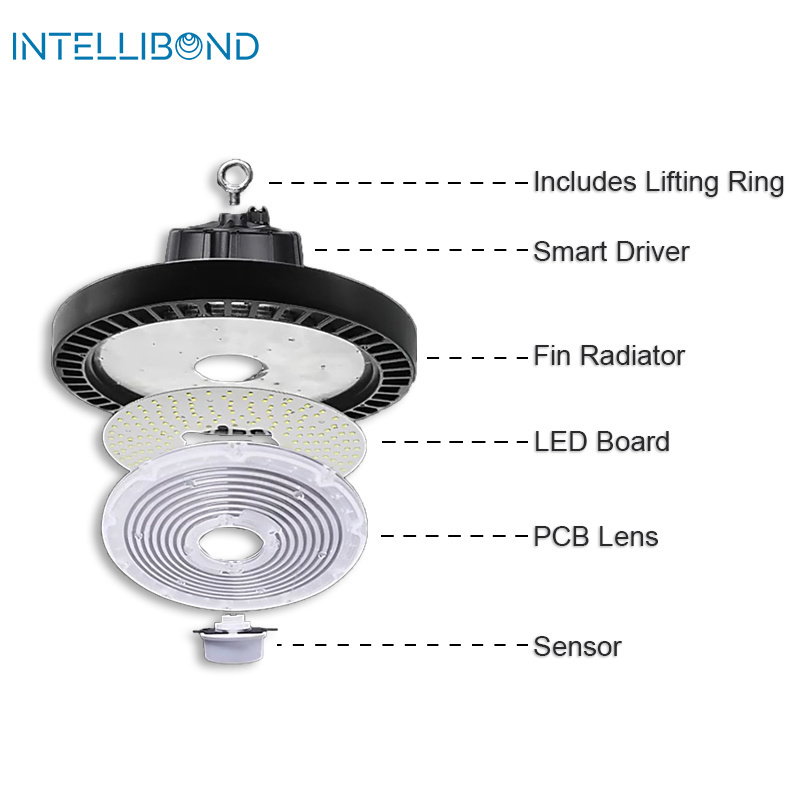

Features：
* Embeded daylight and motion sensors
* Join the LED highbays together by Zigbee mesh network
* Group LED highbays easily via remote control, no app required
* Automatic on/off/dimming with daylight and motion sensor
* Color Temperature optional: 4000K / 5000K(default) / 6500K
* Power available: 100W/ 150W/200W
* Cooling fins as heat sink with die casting.
* More energy-efficient than traditional light sources, with efficiency up to 190lm/W
* Low maintenance costs
