Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
VIGNUGGE
-
Model Number:
-
IB22A-R10Z-D
-
IP level:
-
IP40
-
Product name:
-
Push button switch
-
Mounting hole diameter:
-
22mm
-
Actuator shape:
-
flat head
-
Switch combination:
-
1NO1NC
-
Operation type:
-
Self-locking
-
Material:
-
Stainless Steel/ Brass Nickel
-
Terminal:
-
Solder Terminal
-
Connector customization:
-
Acceptable
-
Sample order:
-
Available
-
Product type:
-
switch button
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
2A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
VIGNUGGE
-
Model Number:
-
IB22A-R10Z-D
-
IP level:
-
IP40
-
Product name:
-
Push button switch
-
Mounting hole diameter:
-
22mm
-
Actuator shape:
-
flat head
-
Switch combination:
-
1NO1NC
-
Operation type:
-
Self-locking
-
Material:
-
Stainless Steel/ Brass Nickel
-
Terminal:
-
Solder Terminal
-
Connector customization:
-
Acceptable
-
Sample order:
-
Available
-
Product type:
-
switch button
Products Description
Products Description

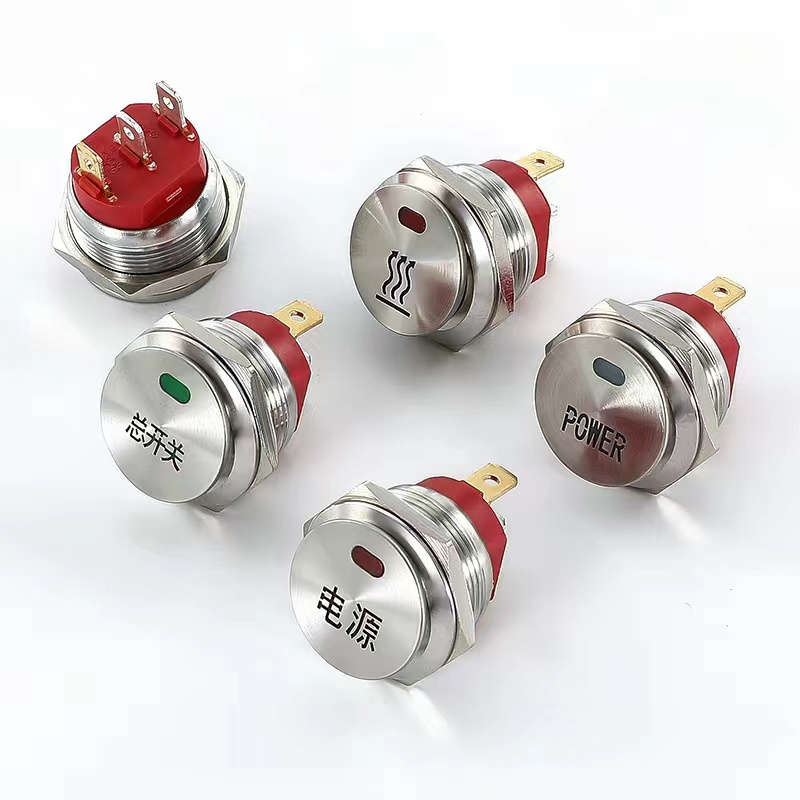

Customization button 22mm Self-locking Waterproof metal switch 3-pin electric on off switch 1NO1NC Power Rocker switch
Specification: Mounting Hole Size: Φ22mm Switch Rating: 2A Switch Combination : 1NO1NC Operated function: momentary /latching Head type: flat head Enclosure Material: stainless steel/ brass nickel Degree of Protection: IP65 The Wire Connector: With the wire connector, you don't need to solder the terminals, make installing very easy Saves the issue of soldering to the switch, and possibly melting it as well You can replace the switch anytime by just unplugging the switch from its socket
Note: These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater -The project you are going to be used for, don't let current go above 3 amps. Or the switch will get warm and to be burned out
Product Paramenters
|
Model Specification
|
|
|
|
Product Name
|
Push button switch
|
|
|
Mounting diameter
|
22mm
|
|
|
Head shape
|
flat head
|
|
|
Switch Combination
|
1NO1NC
|
|
|
Operation type
|
Self-locking
|
|
|
Rated Current
|
2A
|
|
|
Illuminating type
|
Non-Illuminated
|
|
|
Housing color
|
silver
|
|
|
voltage
|
250V
|
|
|
Shell material
|
Stainless Steel/ Brass Nickel
|
|
|
Contact Resistance
|
50mΩ max
|
|
|
Insulation Resistance
|
1000MΩ Min
|
|
|
Dielectric Intensity
|
2000VAC
|
|
|
Accessories
|
Nut, Rubber Waterproof O-ring
|
|
