Ceramic appliances PVD coating machine

Technology

The equipment uses the magnetron sputtering cathode glow discharge technique to ionize and deposit the molecule(target) on the base material(PVD), as well as the resistance heating technique in the vacuum to melt the metal wire and or vaporize the metal molecule. Thus it can metallize the plastic surface of the base material, mobile phone shell, etc. Use the special filming to achieve the function of nonconductive products and electromagnetism shield, thereby to reach the standard of high-end electronic products manufacturing industry .It's used to apply chrome,stainless steel,titanium,copper etc film on product surface to make metallization.

Applied industry

It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment .

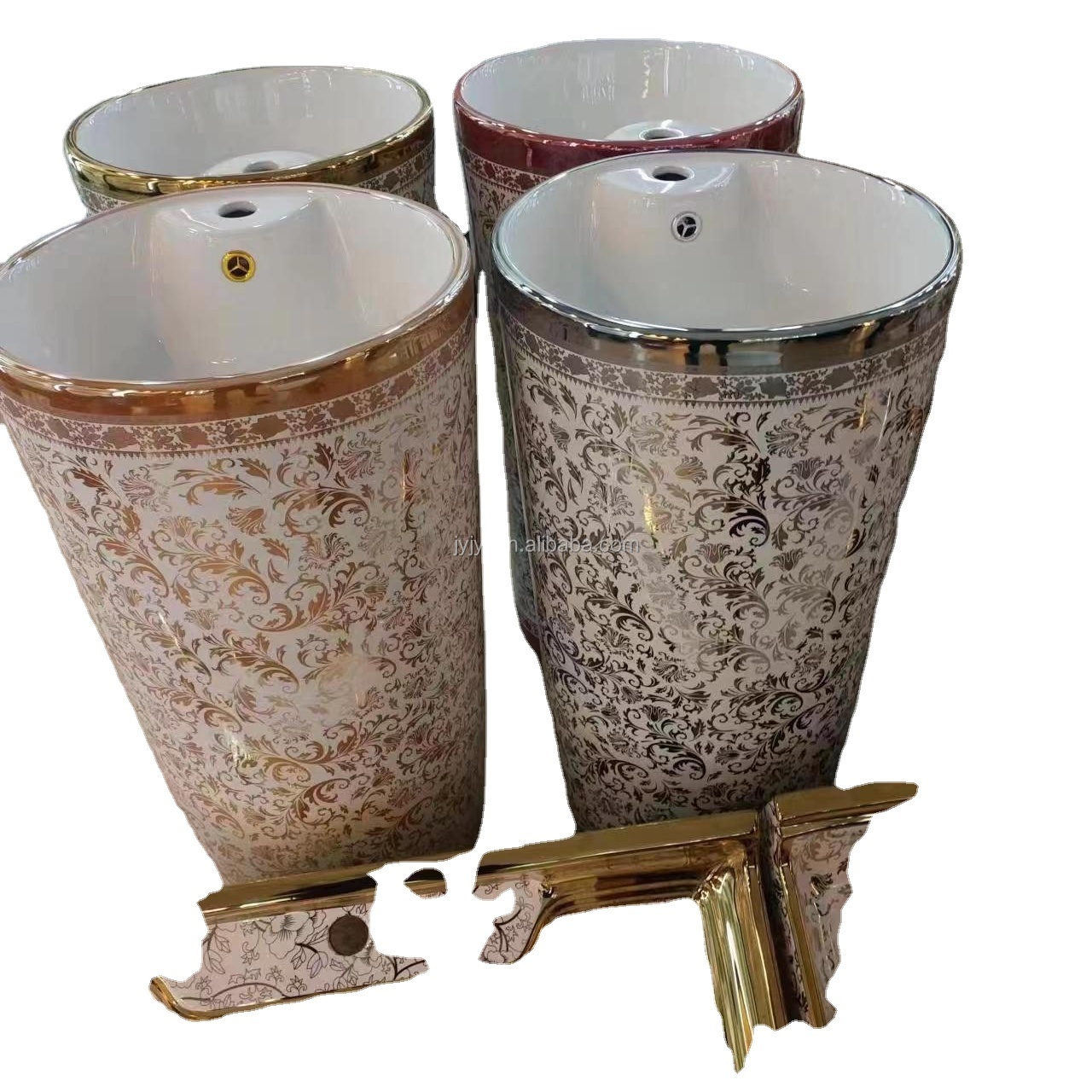

This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about stainless steel, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc .

Features

Characteristic:

The equipment integrates the plasma treatment, high-end cathode magnetron sputtering, resistance evaporation coating technology.The coating film is dense and hardness with low friction coefficient, to keep the smoothness of original workpiece surface, good flexibility, hard to break and fall.

Working principle:

The whole process like vacuum pumping, plasma cleaning, chrome or other film deposition, deflating etc. It's all running fully automaticly inside the vacuum chamber.Two doors (optional) with 6-axis (also 8 axis optional) rotation &revolution jig and evaporation motor. When one door is under vacuum coating process, another door could be loading or unloading the products at the same time. So the production performance is very excellent.

Machine Features:

-High reliability

-High productivity and flexibility

-Consistently brilliant end product quality

-Full automation capability

-Excellent coating flexibility

-Long lifetime and fast target exchange

-Flexible system configuration

-High speed coating and best PVD homogeneity.

Coating color:

Gold,rosegold,silver,black,blue etc.

RMARK: We  can design the dimension of the vacuum chamber according to your requirements. We can also design and configure the vacuum unit and electric controlling system according to your requirement.

Technical data:
